Glass Doors for Arched Stacked Stone Fireplace with Gas Logs - Project #21393

Customer Comments: I have a great gas log fireplace, however, it is vented and cold air flows down. The front of the fireplace is stacked stone so it is very uneven for standard FP doors to seal. This stacked stone was placed over the original brick front. I am looking for solutions.

Our Comments: This will require a glass door made to fit inside the opening as shown in the examples below. You will need to provide a template (see instructions below) and fill the gaps around the door with mortar once it is installed. Please read the instructions on this page for: How to Measure and Install Glass Doors on a Rock Fireplace

Gas Log Warning: To prevent the burner and pilot mechanism from overheating causing safety issues, vented gas logs must be burned with glass doors open. Vent Free gas logs cannot have glass doors closed under any circumstances.

Fireplace Opening: Unknown

Before

Before:

Medium to High-End Steel Doors

Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut.

Flat Steel

Option #1: Hearth Creations Flat Steel Arched Bifold Fireplace Glass Door with Rounded Corners in Matte Black with Gate Mesh Backup Doors.

High End Hand Forged Wrought Iron Doors

Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details.

Wrought Iron

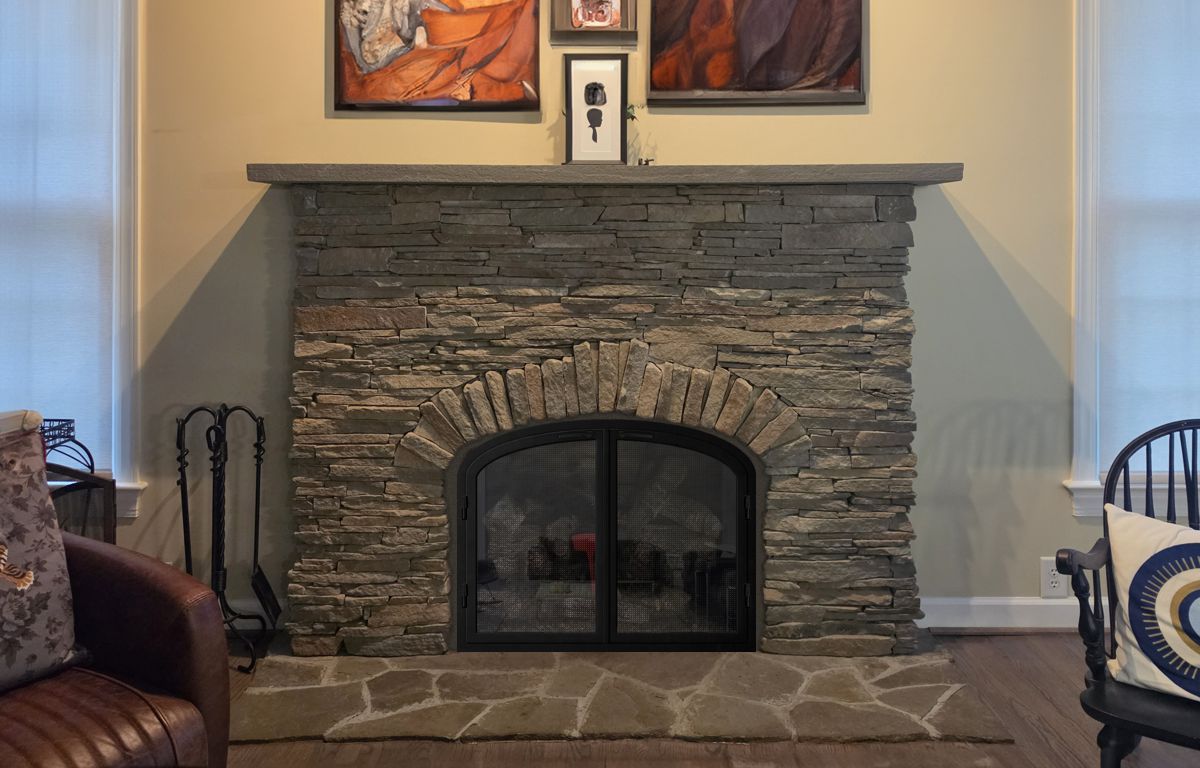

Option #2: Hand Crafted Wrought Iron Arched Cabinet Fireplace Door with Rounded Corners in Burnished Black with Heavy Duty Gate Mesh Backup Doors.

Wrought Iron

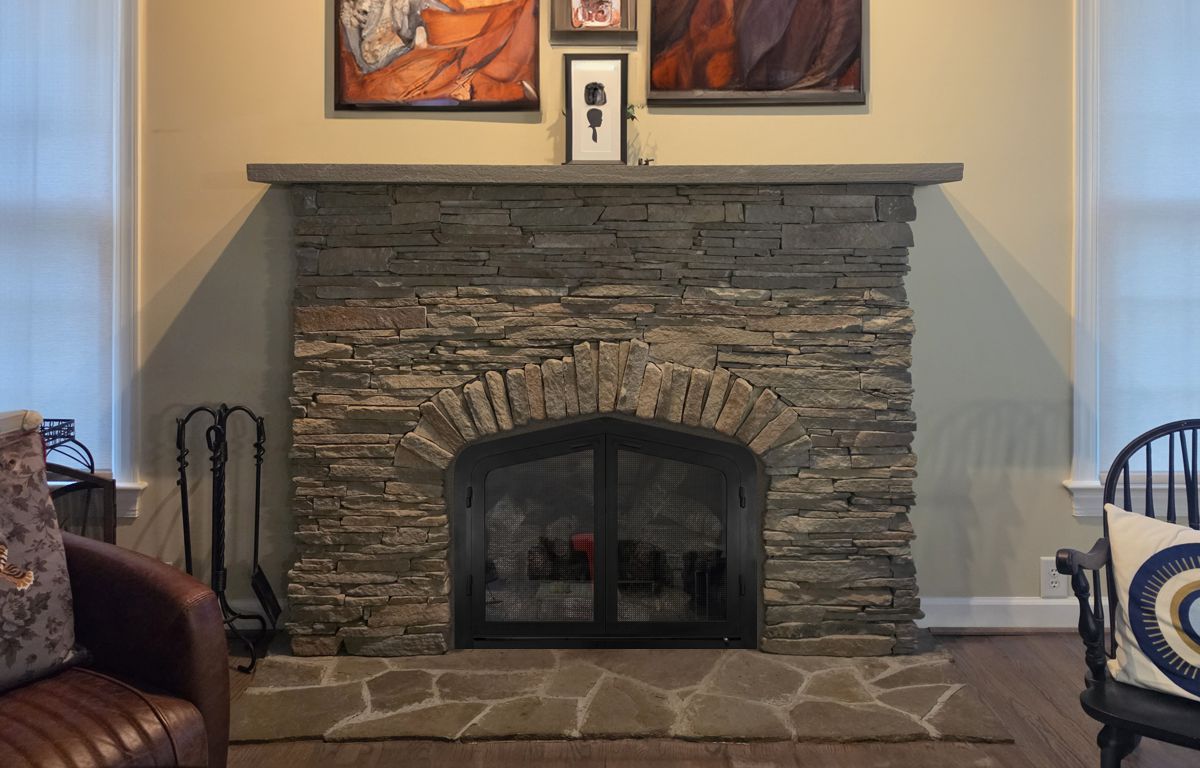

Option #3: Hand Crafted Wrought Iron Gothic Arched Cabinet Fireplace Door in Burnished Black with Heavy Duty Gate Mesh Backup Doors.

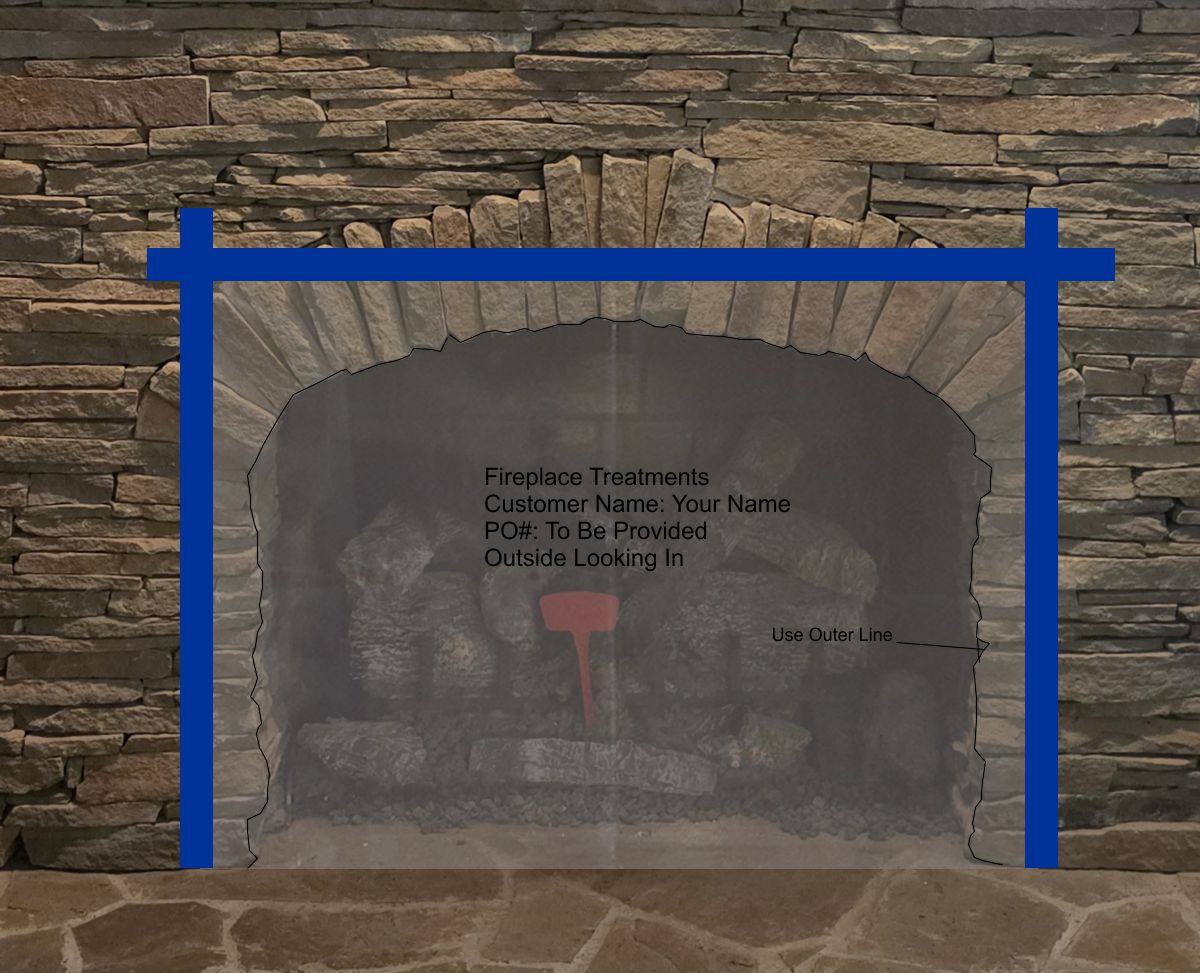

Template Instructions

Template

Template Instructions:

1. Tape a piece of heavy plastic sheeting to the fireplace.
2. Make sure the bottom edge is perfectly straight and even with the hearth.
3. Make sure it is taped tightly enough to remove any wrinkles.
4. Trace the shape of the stones and mortar around the opening with a fine tip marker.
5. If you make a mistake, make a note and point to the correct part of the line that is to be used.
6. Mark the template as shown with: Fireplace Treatments, Customer: (Your Name), PO# (To Be Provided), Outside Looking In.
7. Email me a picture of the template and leave it in place so I can see how it was made and approve it.
8. Once I approve it, you can take it down, cut off the tape and mail it to the address that I will provide.

Other Pictures

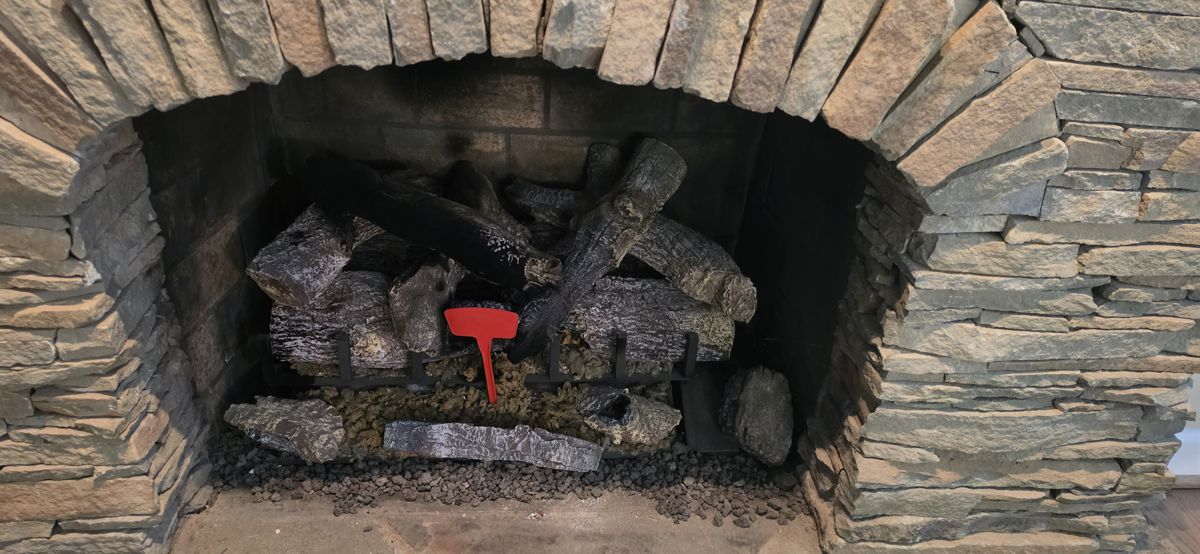

Fig #1 - Closeup

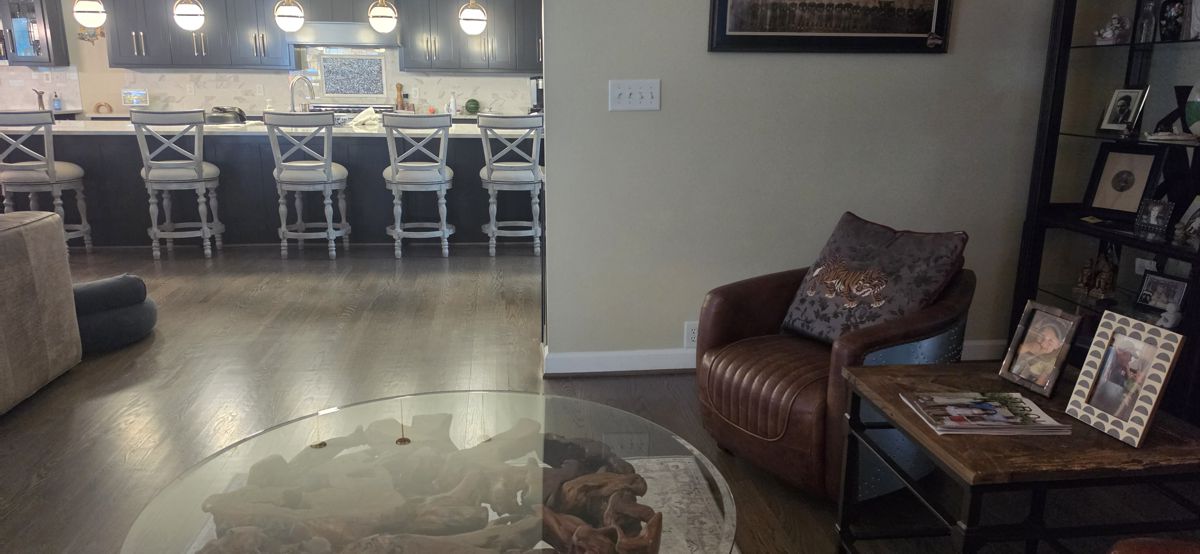

Fig #2 - Room Setting

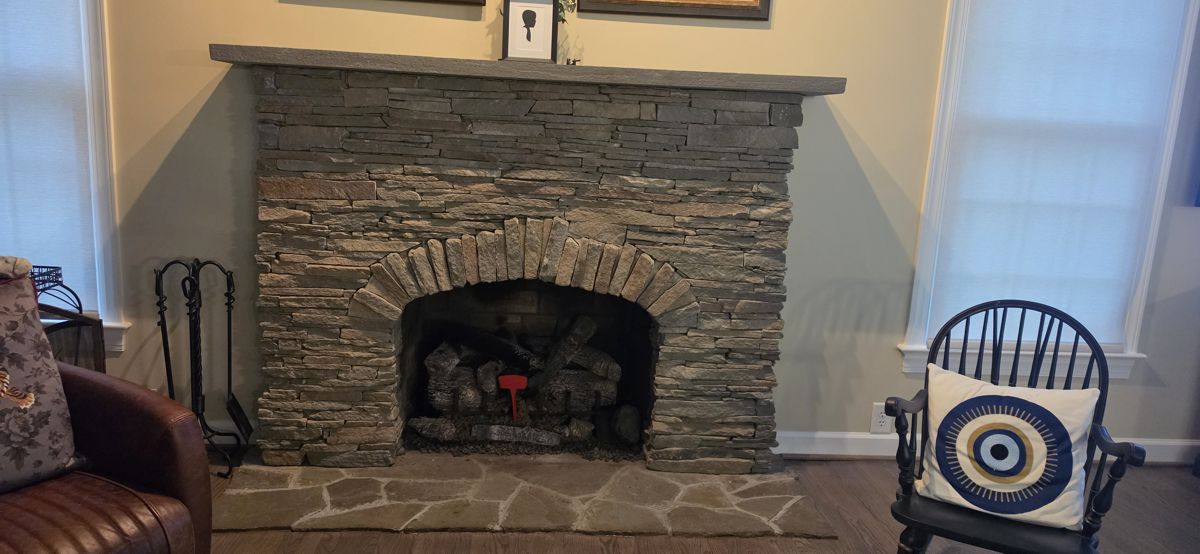

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
