Customer Comments: Hi Greg! Am wanting glass doors. Anything that will help with the smoke smell in the house and look good aesthetically. From the stone on the floor to the top of the fireplace. It's 29inches from the base/lip of the stone piece on the floor. But a little over 31 inches from the floor of the fireplace to the top. The width is 36 inches.
Our Comments: Doors can be made to fit on the outside overlapping the stone, or on the inside. Here are some details about both applications:
Overlap Fit: Fireplace doors have a subframe that extends backwards into the fireplace. The subframe will need to fit inside the smallest width of the opening between the stones. There is a wide mortar joint on the left and right side of the opening that should be covered by the door frame, so the frame will need to be made wide enought to overlap the mortar jount and stil allow the subframe to fit inside. Also, the hearth is irreglar as shown in one of the closeup photos below. An overlapping door will sit on top of the irregular hearth and there will be a gap on the bottom left that will need to be filled with mortar.
Inside fitting door: Doors that fit inside the opening will still need to overlap part of that mortar joint on the sides while the subframe fits inside the inner width of the stones. The gap between the frame and the mortar joint on the sides and stones at the top will need to be filled with mortar. The frame will sit on the firelace floor inside below the hearth and need to be wide enough for the draft assembly to clear the hearth and the doors to open.
Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures around 450F without shattering and should be at least 8" from the flames. This is sufficient for closing the doors as the fire starts to die out to keep the heat in the home. Ceramic glass can handle sustained temperatures around 1450F with direct flame contact. If you want the ability to burn continuous fires with the doors closed, you need ceramic glass.
Measuring & Installing: Please read the instructions on this page for: How to Measure and Install Glass Doors on a Rock Fireplace.
Fireplace Opening: 36" W x 29" H (To Hearth) x 31" H (To Fireplace Floor)

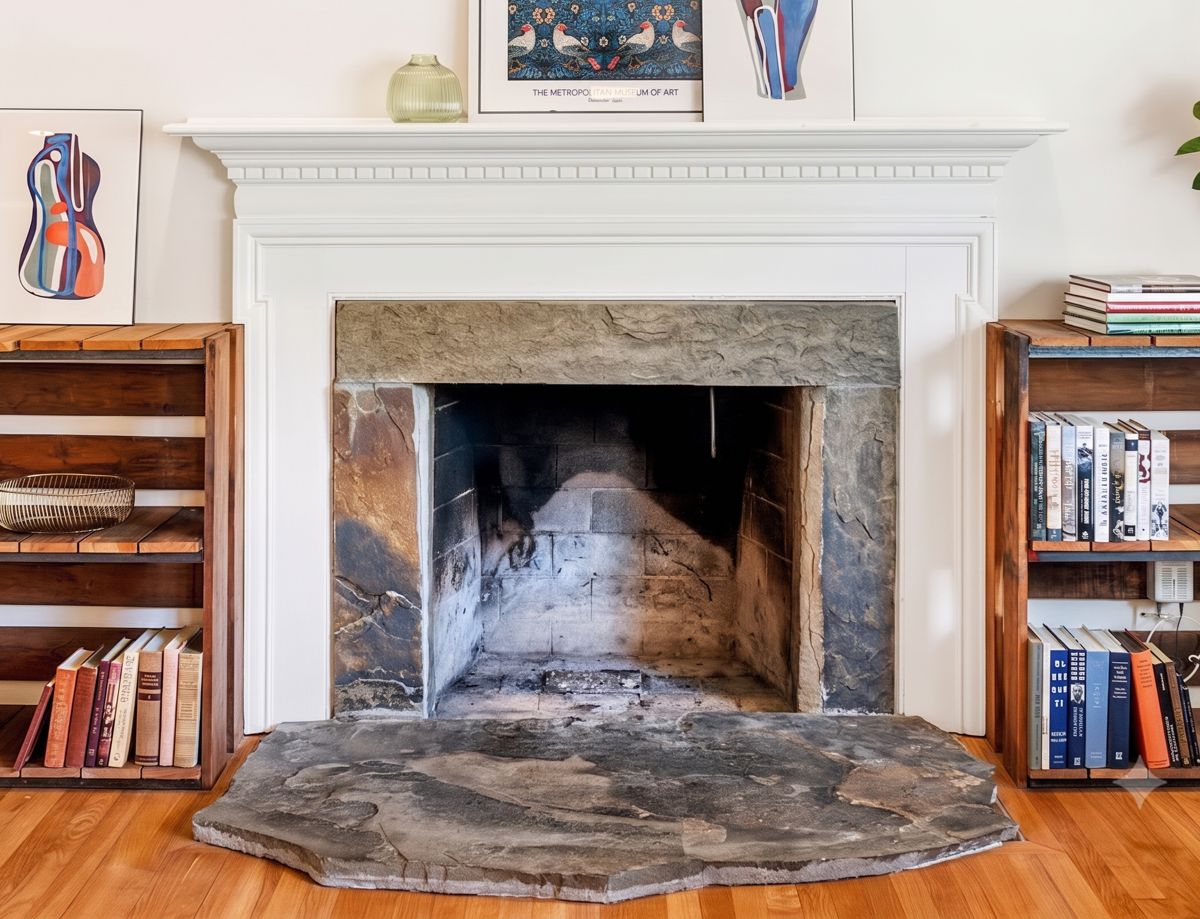

Before:
These doors are made from laser cut steel. The frames are made to whatever width is needed and can be made to fit inside or overlap the fireplace, except for Option #1, which comes only with a 2" wide frame.

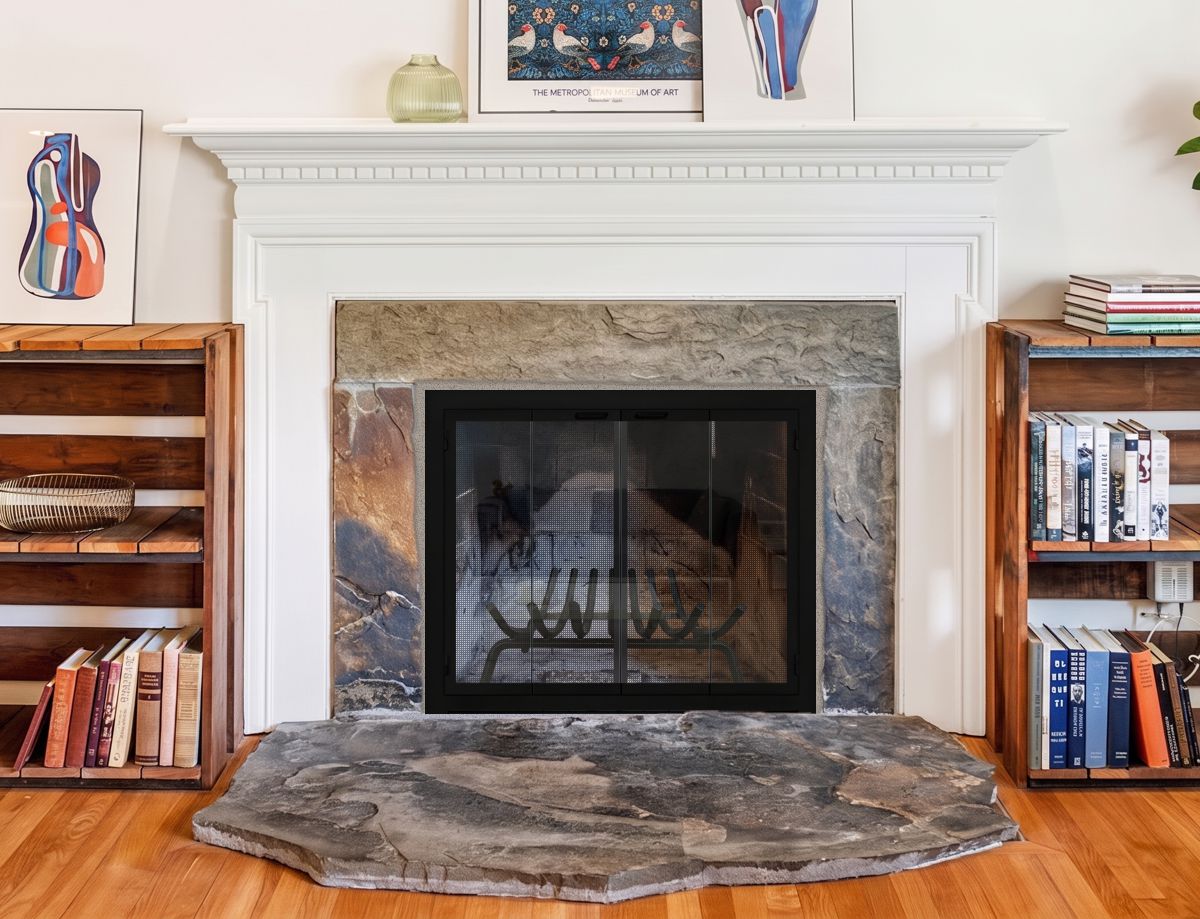

Option #1: Design Specialties Carolina Steel Bifold Fireplace Glass Door with 2" Wide Frame in Rustic Black with Tempered Glass Only and Gate Mesh Backup Doors. Shown as an inside fit.

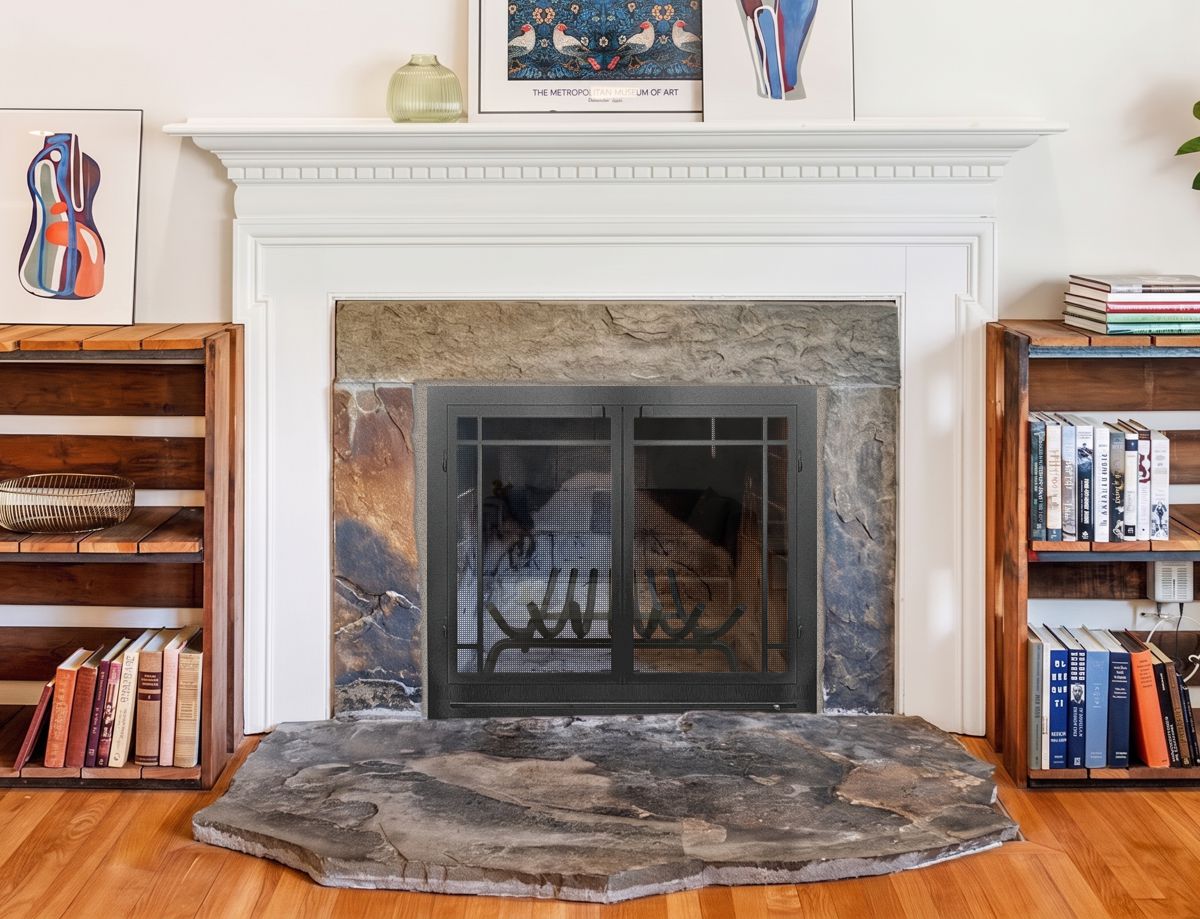

Option #2: Elegant Steel Cabinet Fireplace Door with Window Pane Design in Vintage Iron with Tempered or Ceramic Glass and Gate Mesh Backup Doors. Shown as an inside fit.
Option #3: Design Specialties Craftsman Bifold Fireplace Door in Forged Iron Tempered or Ceramic Glass and Gate Mesh Backup Doors. Shown as an inside fit.
Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. These doors are most commonly ordered with ceramic glass for burning fires with the doors closed.
Option #4: Hand Crafted Pacifico Wrought Iron Cabinet Fireplace Door in Burnished Natural Iron with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an Overlap Fit.
Option #5: Hand Crafted Pacifico Wrought Iron Cabinet Fireplace Door in Burnished Natural Iron with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an Inside Fit.

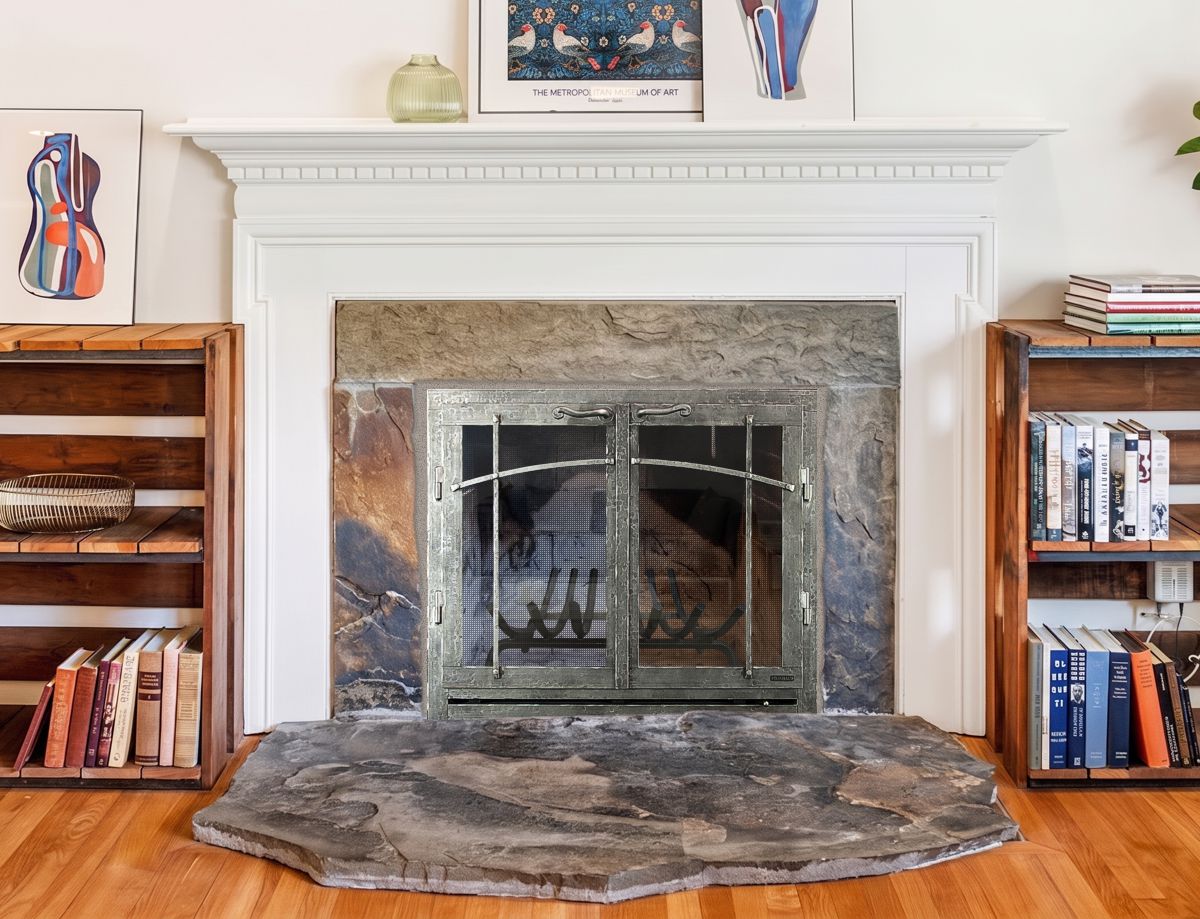

Option #6: Hand Crafted Wrought Iron Craftsman Style Cabinet Fireplace Door in Distressed Buff Pewter with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an Inside Fit.

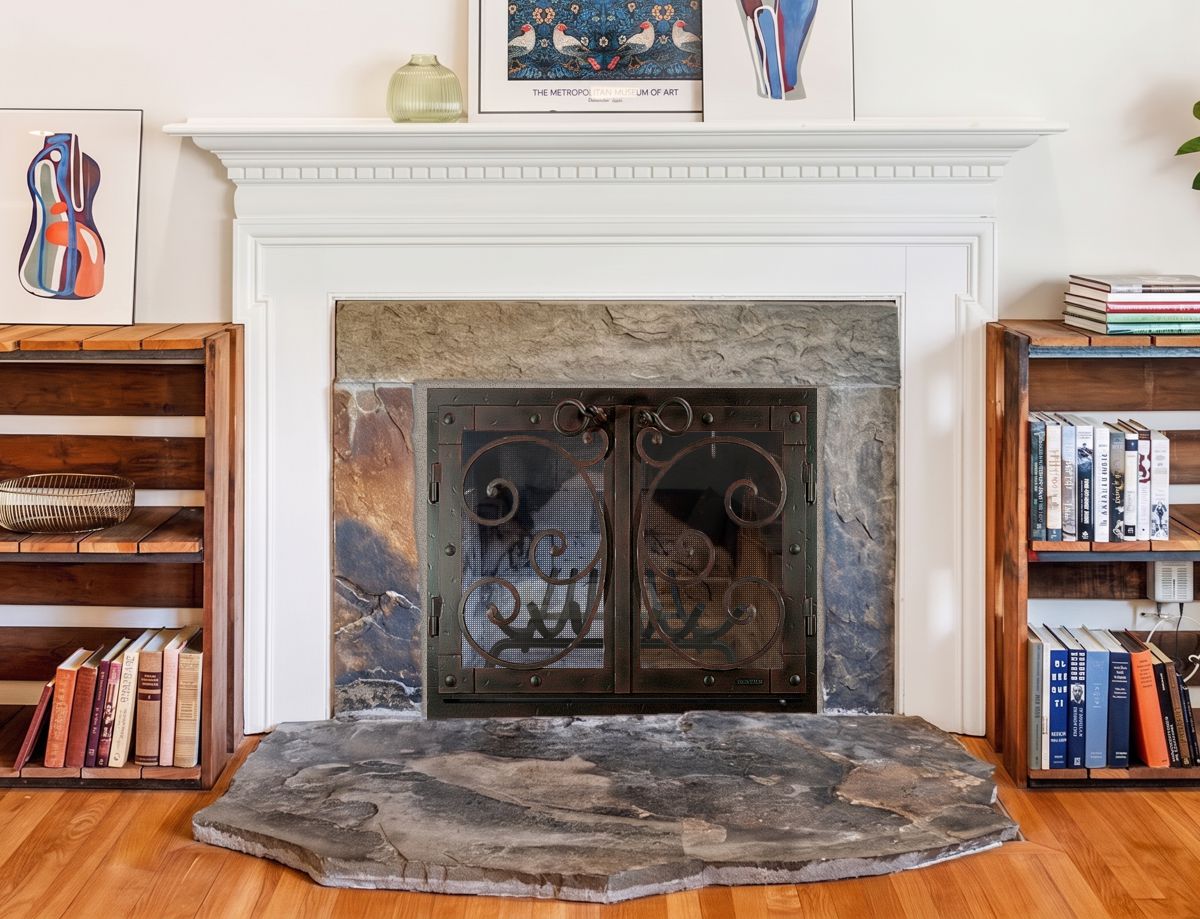

Option #7: Hand Crafted Wrought Iron Style Cabinet Fireplace Door with Scroll Pattern in Hammered Plated Matte Dark Copper with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown as an Inside Fit.

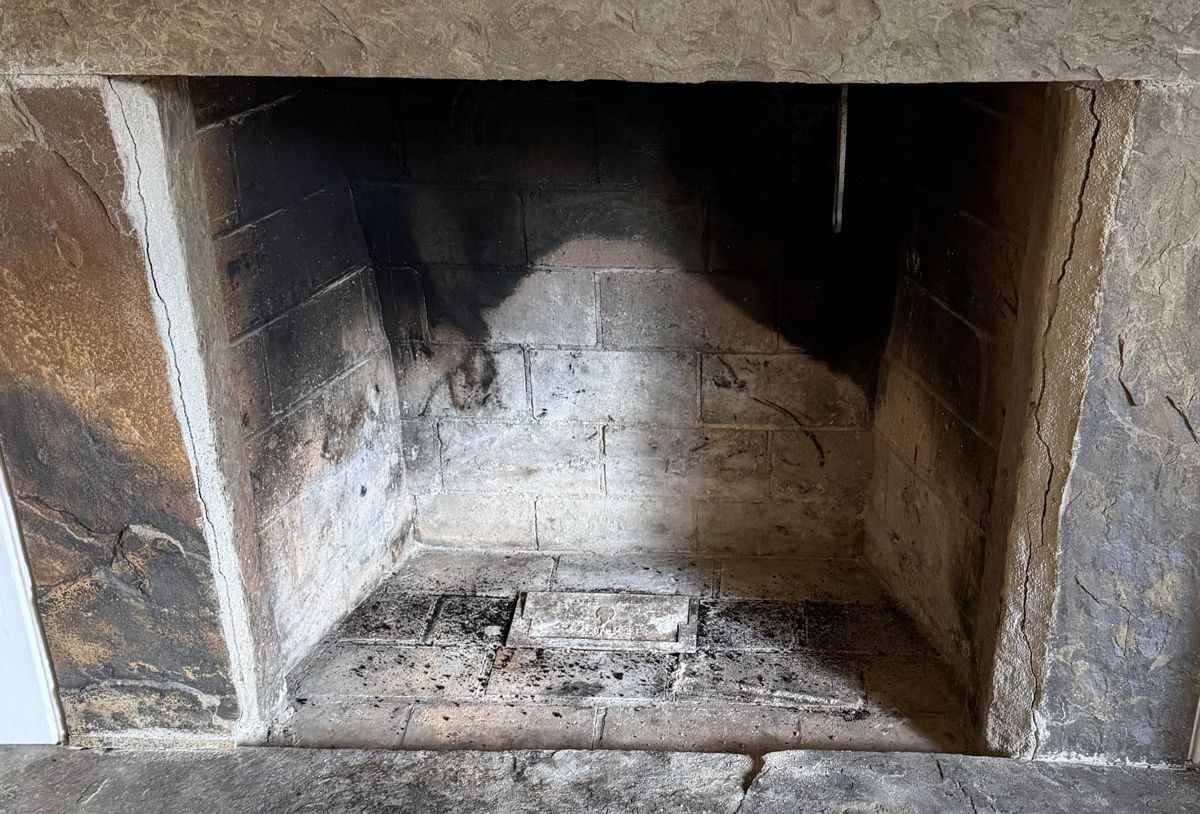

Fig #1 - Closeup

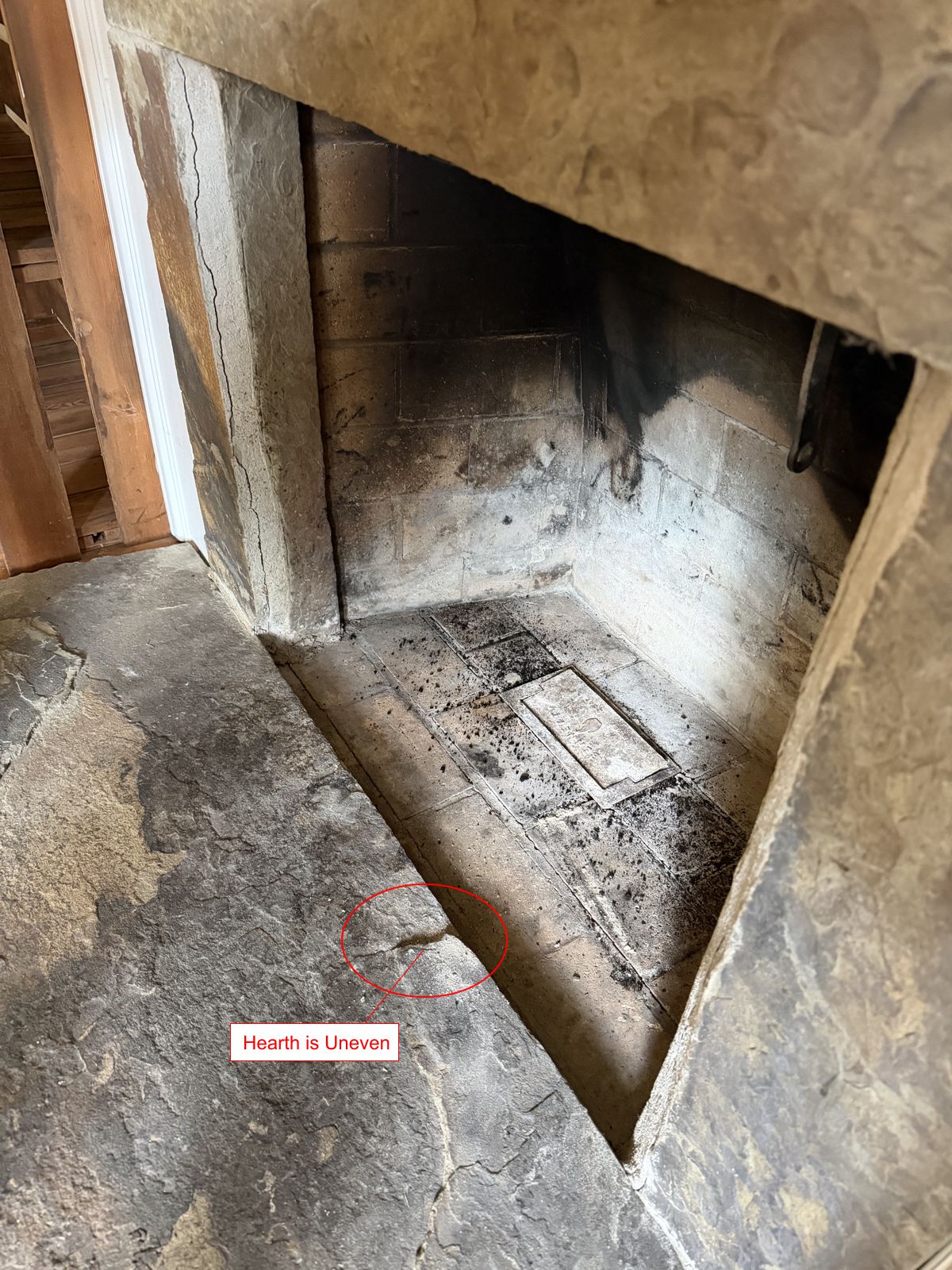

Fig #1 - Side View Showing Irregular Hearth
If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.
We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.
Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.
Not all doors are available with all of these glass options.
Hearth Creations Finishes
Design Specialties Finishes
Hand Crafted Wrought Iron Finishes
PW Finishes
Stone Manufacturings Trims & Finishes
Samples for some finishes are available upon request. Request Finish Samples Here!
 Photo #1: With your camera sideways, take a picture directly in front of the fireplace from far enough away to see the entire fireplace floor to ceiling like this.
|
 Photo #2: With your back to the fireplace, take a picture looking straight out into the room so we can see the decor directly in front of the fireplace.
|
Privacy Note: Your privacy is very important to me. I will never divulge your email address or contact information to any entity outside of my company unless necessary to process your order. I reserve the right to post your pictures on my website along with your comments so others can view your project for ideas. In any case, I will not post your last name or contact info on this website. By using my design service, you are giving me all rights to post your photos and comments on any of my websites and marketing materials.
 |
 |
 |
 |
 |
Ceramic
Tempered Clear
Tempered Gray
Tempered Bronze
Tempered Black (Opague)
Tempered 1/2" Bevel
Tempered 1" Bevel
