Replacement Glass Doors for L-Shaped Zero Clearance Corner Fireplace Raised in Wall - Project #21008

Customer Comments: Replacement glass bifold doors and side glass panels measures costs needed for corner fireplace. Hardware in adjacent bath is brushed nickel. Approximate dimensions of opening are 36 inches across the front, 24 inches high and 18 inches across for the side panel.

Our Comments: There are two choices for doors on this type of fireplace. Doors that fit inside the black metal opening and doors that overlap the tile. Overlap fitting doors must have a vent at the top to allow air to flow freely into the fireplace. The short side will have a fixed glass panel or single door. These can be made with just glass doors or with gate mesh backup doors behind the glass.

Fireplace Opening: 36" W (Front) x 18" W (Side) x 24" H

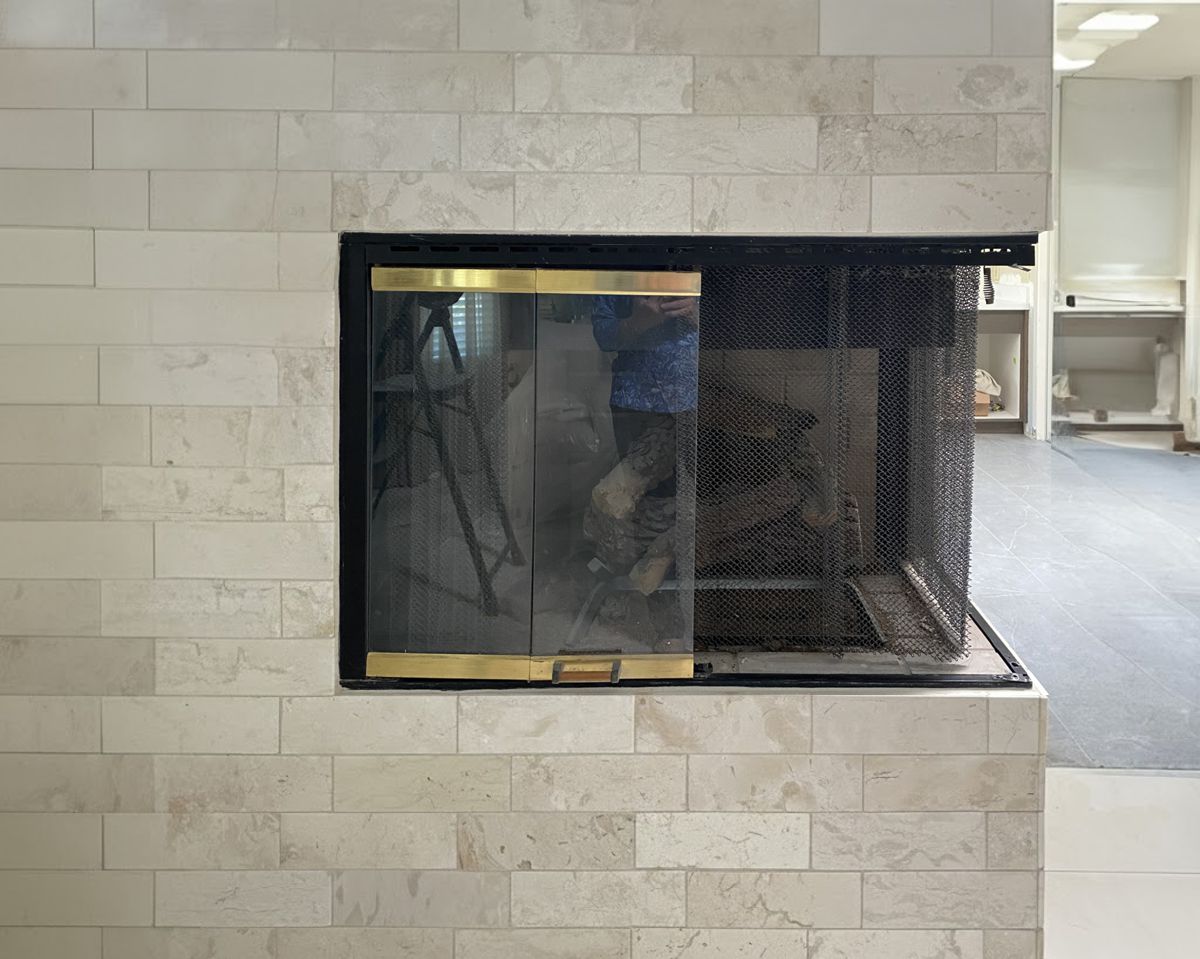

Before

Before:

Affordable Aluminum Doors

Aluminum is an excellent material for fireplace doors because it does not rust and can handle relatively high temperatures when treated with powder coated finishes. It is not as heavy duty and rugged as steel or wrought iron, but it is the most affordable.

Stiletto

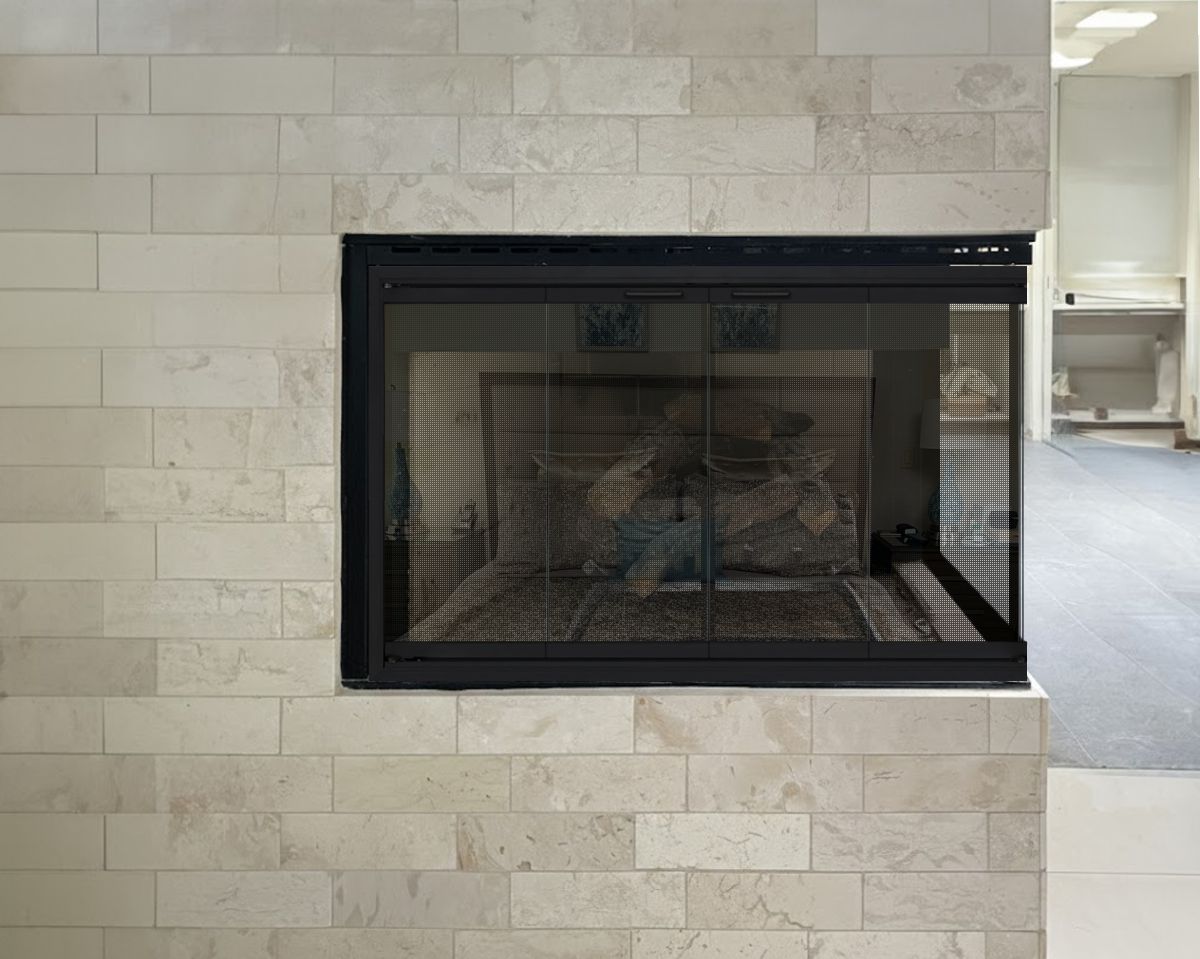

Option #1: Design Specialties Stiletto Aluminum Bifold Corner Fireplace Door in Black with Clear Glass and Gate Mesh Backup Doors.

Medium to High-End Steel Doors

Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut.

Flat Steel

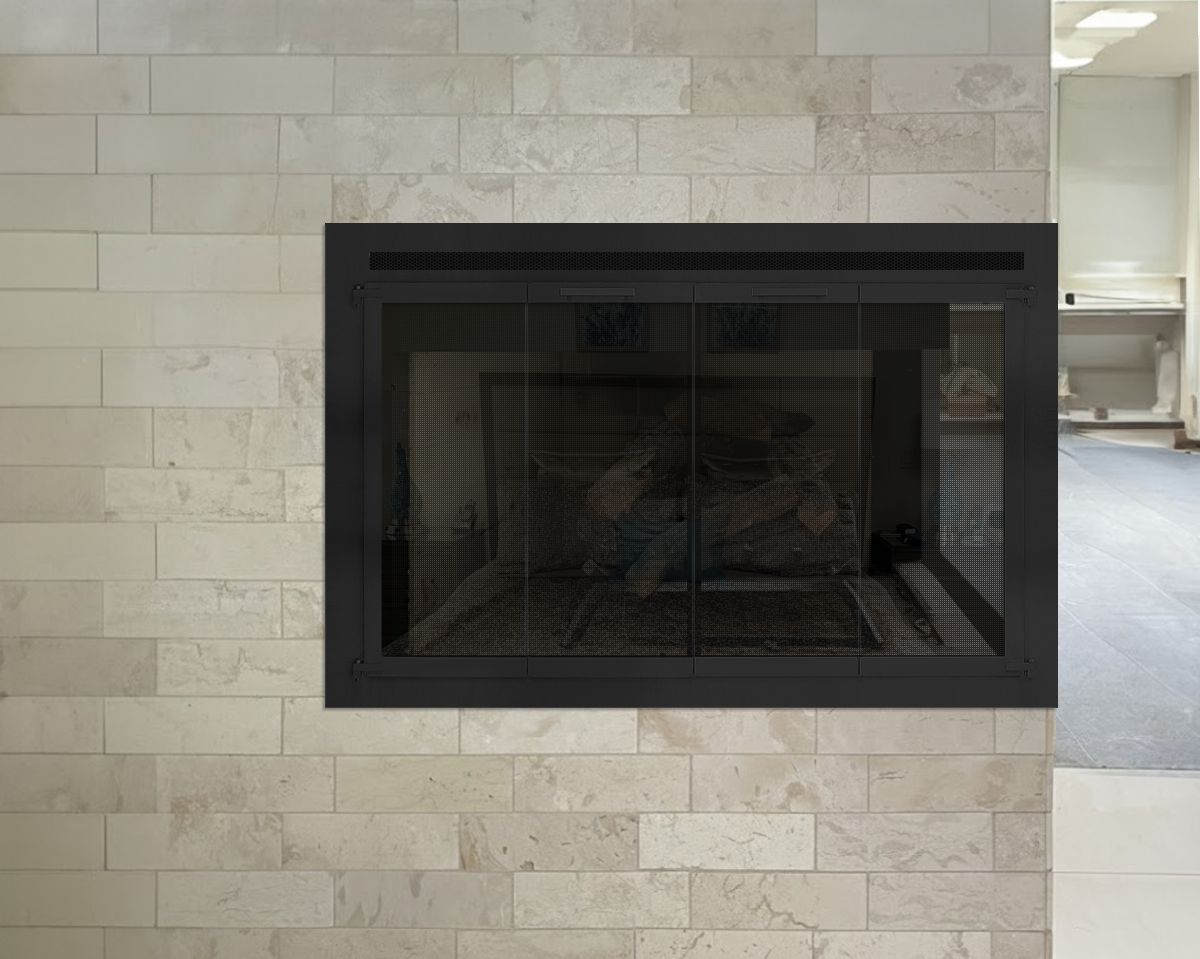

Option #2: Hearth Creations Flat Steel Bifold Corner Fireplace Glass Door in Black with Gray Glass and Gate Mesh Backup Doors.

High-End Stainless Steel Doors

These doors can be made from high-end 3/16" laser cut solid stainless steel without seams, or with a less expensive brushed chrome sheet metal overlay wrapped around solid steel that has seams.

Stainless Steel

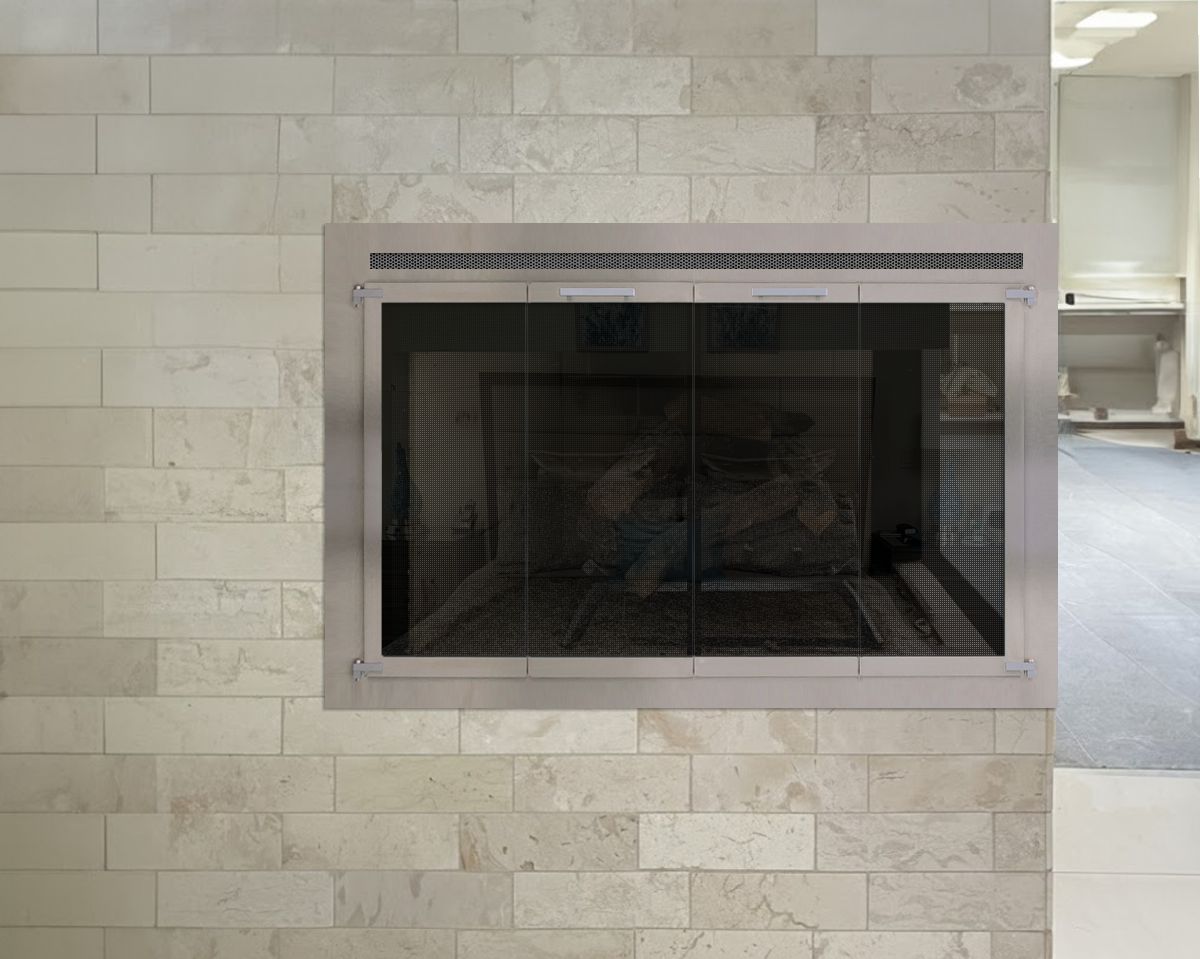

Option #3: Hearth Creations Stainless Steel Bifold Corner Fireplace Glass Door in Satin Stainless (or Brushed Chrome Overlay) with Gray Glass and Gate Mesh Backup Doors.

Other Pictures

Fig #1 - Closeup

Fig #2 - Room Setting

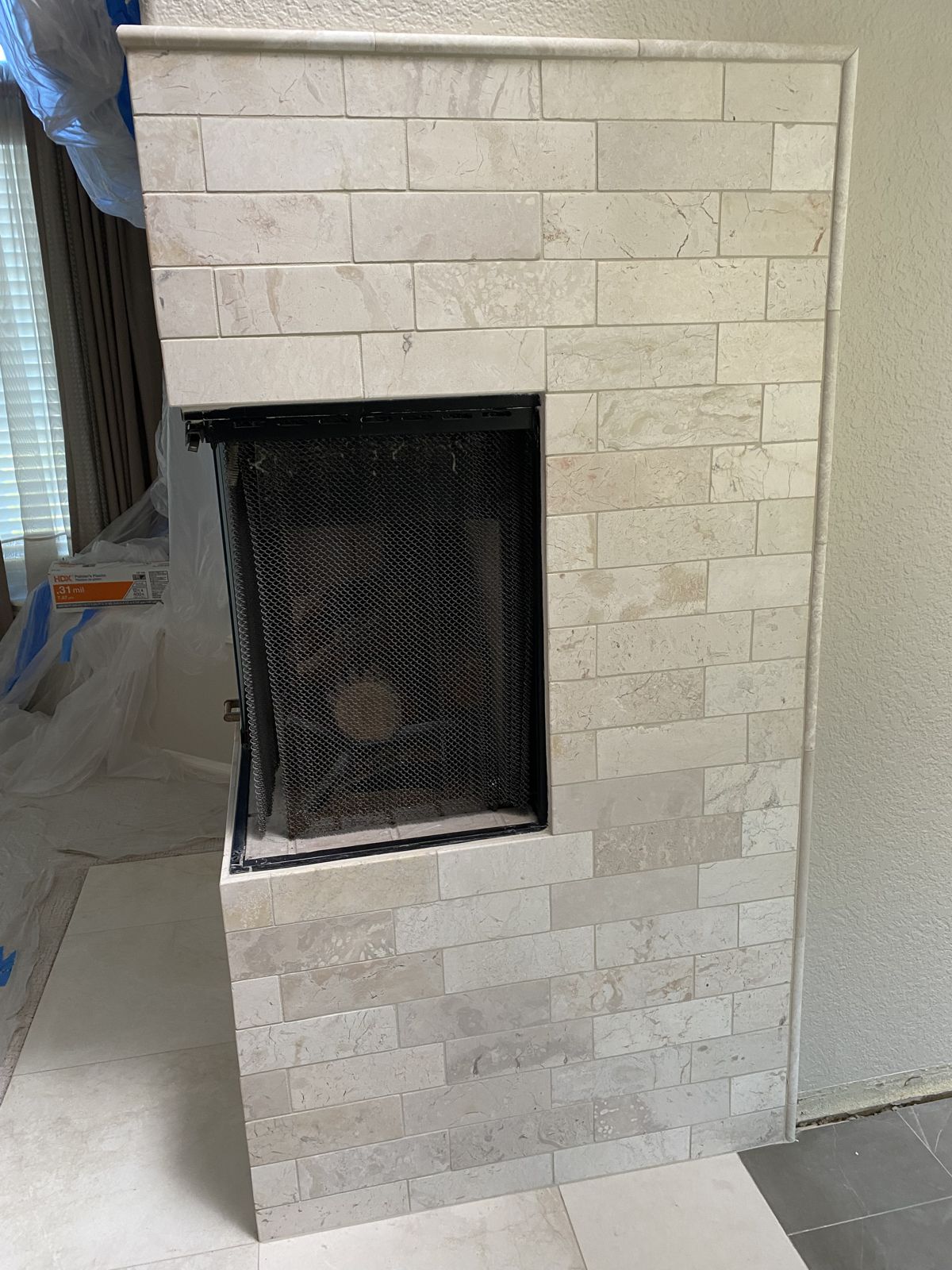

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
