Glass Doors with a Blower/Heat Exchanger for Arched Brick Fireplace - Project #21007

Customer Comments: looking for a fireplace door with a blower with the electrical on the left-hand side in the eclipse that you’ll see in my picture

Our Comments: There are two types of blowers that work with glass doors as illustrated below. In both cases, the doors are made to sit on top of a vent bar that draws room air in, circulates it through the heat exchanger/grate and blows it back into the room. This works best when burning fires with the doors closed, so doors with ceramic glass are preferred.

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle temperatures up to about 1450F and can have direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass.

Fireplace Opening: ~36" W x 29" H (Center) x 23" H (Sides) x 21" D

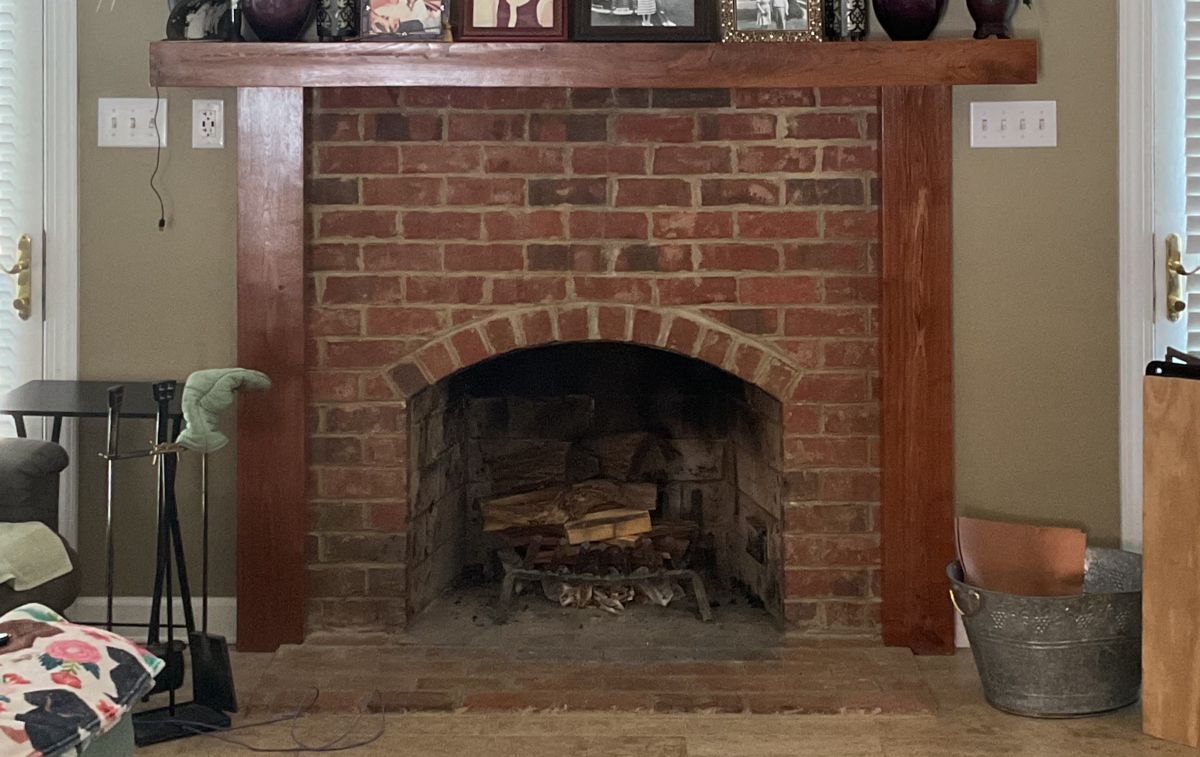

Before

Before:

Medium to High-End Steel Doors

Steel doors are more substantial than the less expensive aluminum doors. They are heavy duty and rugged and are more customizable because the frames are laser cut. These doors work with both the Heavy Duty Grate Heater and Airculator. Door with ceramic glass must be fully framed.

Flat Steel

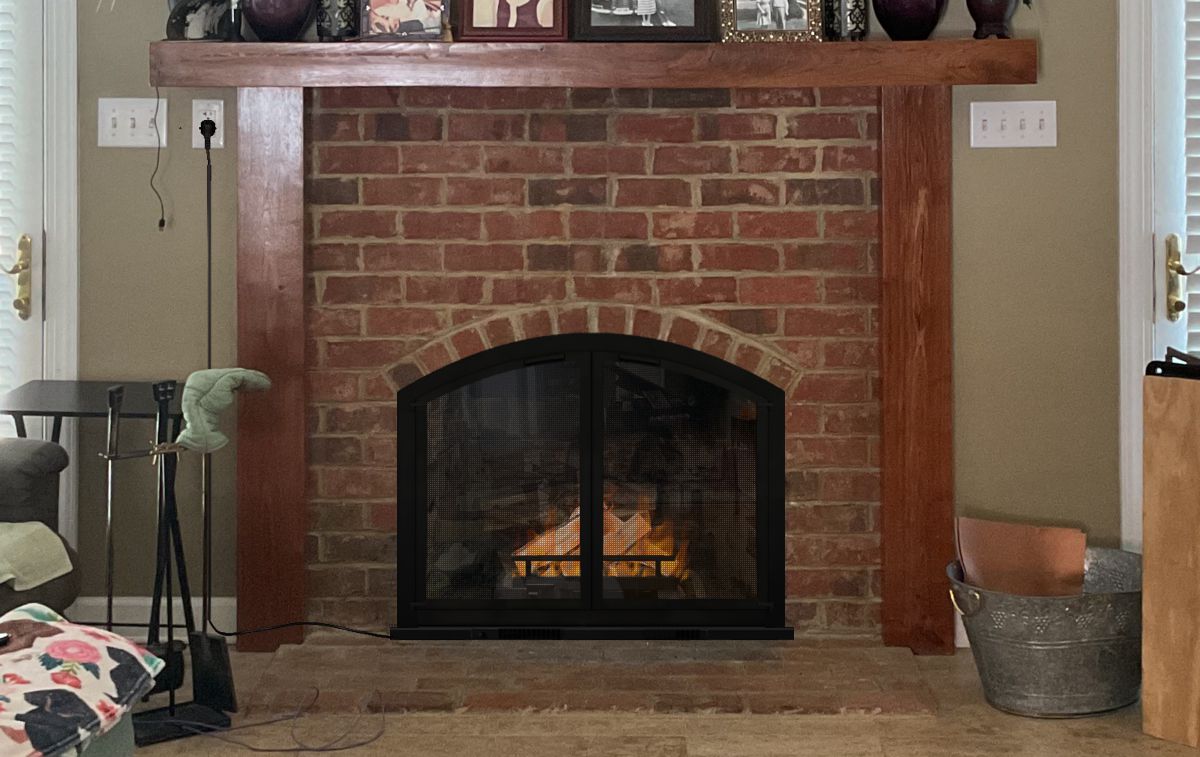

Option #1: Hearth Creations Flat Steel Framed Cabinet Arched Door with Tempered or Ceramic Glass and Gate Mesh Backup Doors. Shown with Heavy Duty Grate Heater.

Flat Steel

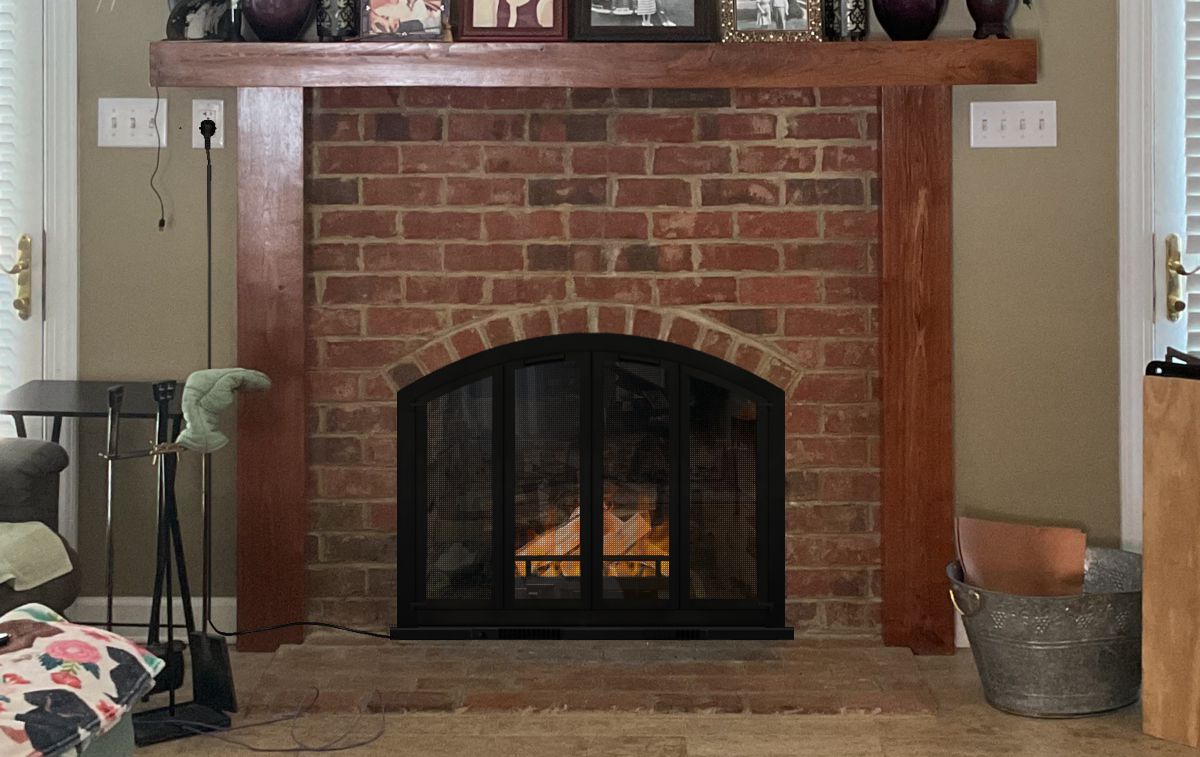

Option #2: Hearth Creations Flat Steel Framed Bifold Arched Door with Tempered or Ceramic Glass and Gate Mesh Backup Doors. Shown with Heavy Duty Grate Heater.

Flat Steel

Option #3: Hearth Creations Iron Age-4 Flat Steel Cabinet Fireplace Door with Straps and Rivets in Brushed Black with Tempered or Ceramic Glass and Gate Mesh Backup Doors. Shown with Heavy Duty Grate Heater.

High End Hand Forged Wrought Iron Doors

Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. The forging process produces a unique texture that you cannot get with laser cut steel and there are added hammered textures that can be for a more rustic applications. These doors are often used for extremely large fireplaces because of their heavy duty solid frame and hinges. They are commonly ordered with ceramic glass for buring hot fires with the doors closed. These doors fit only the Airculator.

Wrought Iron

Option #4: Hand Crafted Wrought Iron Fullview Bifold Arched Fireplace Door in Burnished Black with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown with Airculator.

Wrought Iron

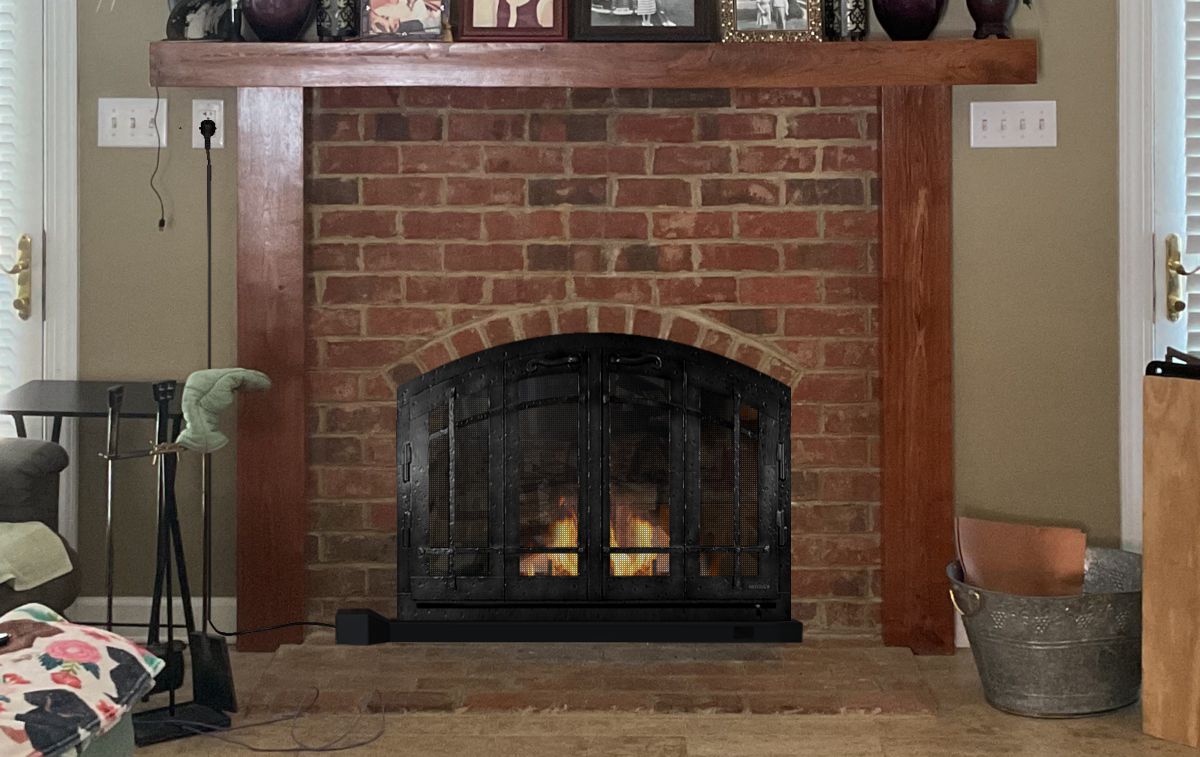

Option #5: Hand Crafted Wrought Iron Craftman Style Framed Bifold Arched Fireplace Door in Distressed Black with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors. Shown with Airculator.

Airculator

Airculator

Airculator Heat Circulating Grate

Airculator

Airculator Heat Circulating Grate Details

Heavy Duty Grate Heater

The Grate Heater is made from much heavier materials and has an insulated fan that fits inside the fireplace rather than on the hearth for a more desireable finished look. An theremostat is included so the fan will come on automatically at 110F and turn off when the temperature falls below 90F. This way you can leave the fire to die out and still benefit from the heat without worrying about turning off the fan in the middle of the night.

Template Instructions

Template

Template Instructions:

1. Tape a piece of heavy plastic sheeting to the fireplace.
2. Make sure the bottom edge is perfectly straight and even with the hearth.
3. Make sure it is taped tightly enough to remove any wrinkles.
4. Trace the shape of the opening with a fine tip marker including the mortar joints.
5. If you make a mistake, make a note and point to the correct part of the line that is to be used.
6. Mark the template as shown with: Fireplace Treatments, Customer: (Your Name), PO# (To Be Provided), Outside Looking In.
7. Email me a picture of the template and leave it in place so I can see how it was made and approve it.
8. Once I approve it, you can take it down, cut off the tape and mail it to the address that I provide.

Other Pictures

Fig #1 - Closeup

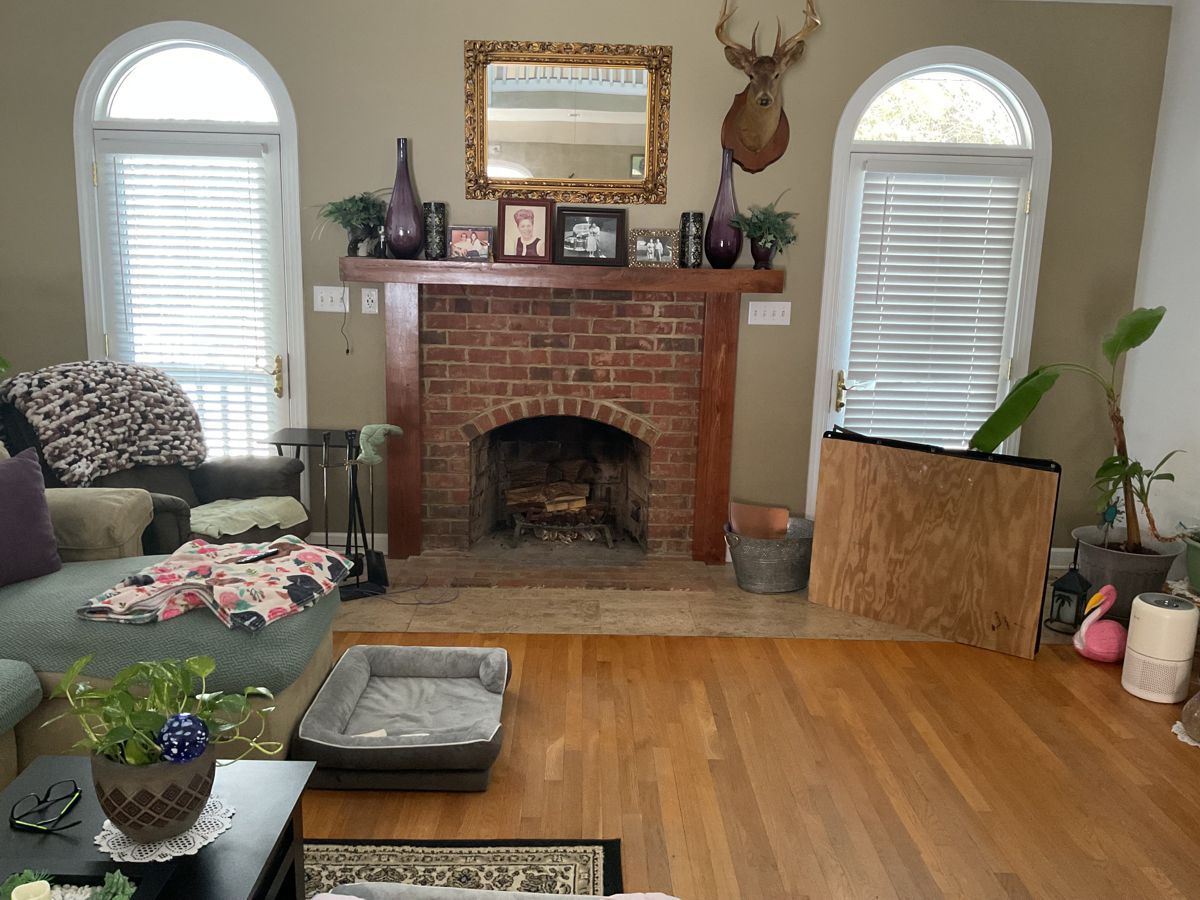

Fig #2 - Room Setting

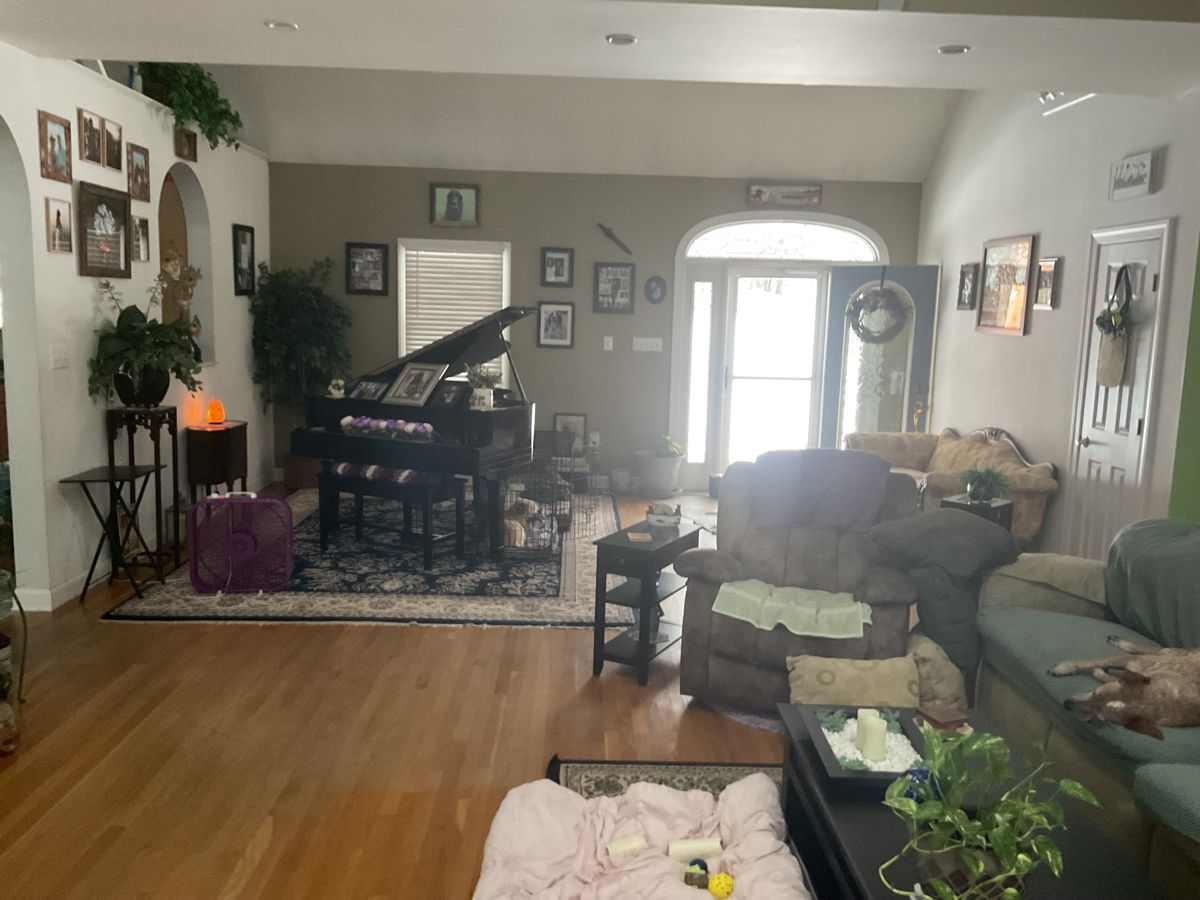

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
