Gas Logs and Glass Doors for Fireplace With Gas in Center - Project #20979

Customer Comments: I have a wood bringing fireplace with a gas line in the center of the firebox. Looking for a simple vented solution that can sit above the existing line. Can you quote it with and without glass doors?

Our Comments: The 3-Burner system from Grand Canyon gas logs is ideal for your situation. The burner stands taller than others with a 3 1/4" clearance underneath, allowing it to be positioned right over the gas line.

Gas Log Warning: To prevent the burner and pilot mechanism from overheating causing safety issues, vented gas logs must be burned with glass doors open. The Modern-1 door is an exception to this rule as it can be made with a special Gas Log AirWash system that allows you to close the doors while burning a vented gas logs. Vent Free gas logs cannot have glass doors closed under any circumstances. Read more below.

Fireplace Opening: 36" W (Front) x 28" W (Back) x 24" D x x 28" H
Gas Line: 14" Back from opening x 3" Tall

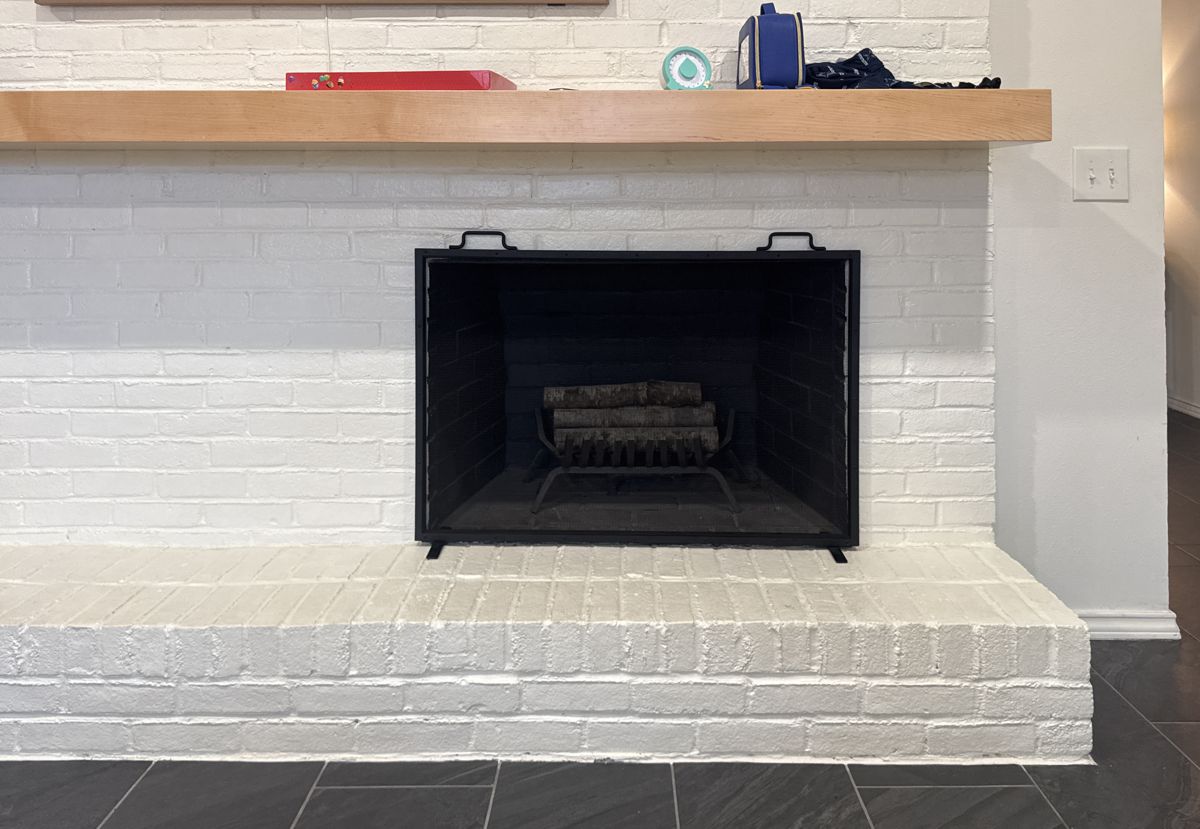

Before

Before:

Grand Canyon Gas Logs

AWOC

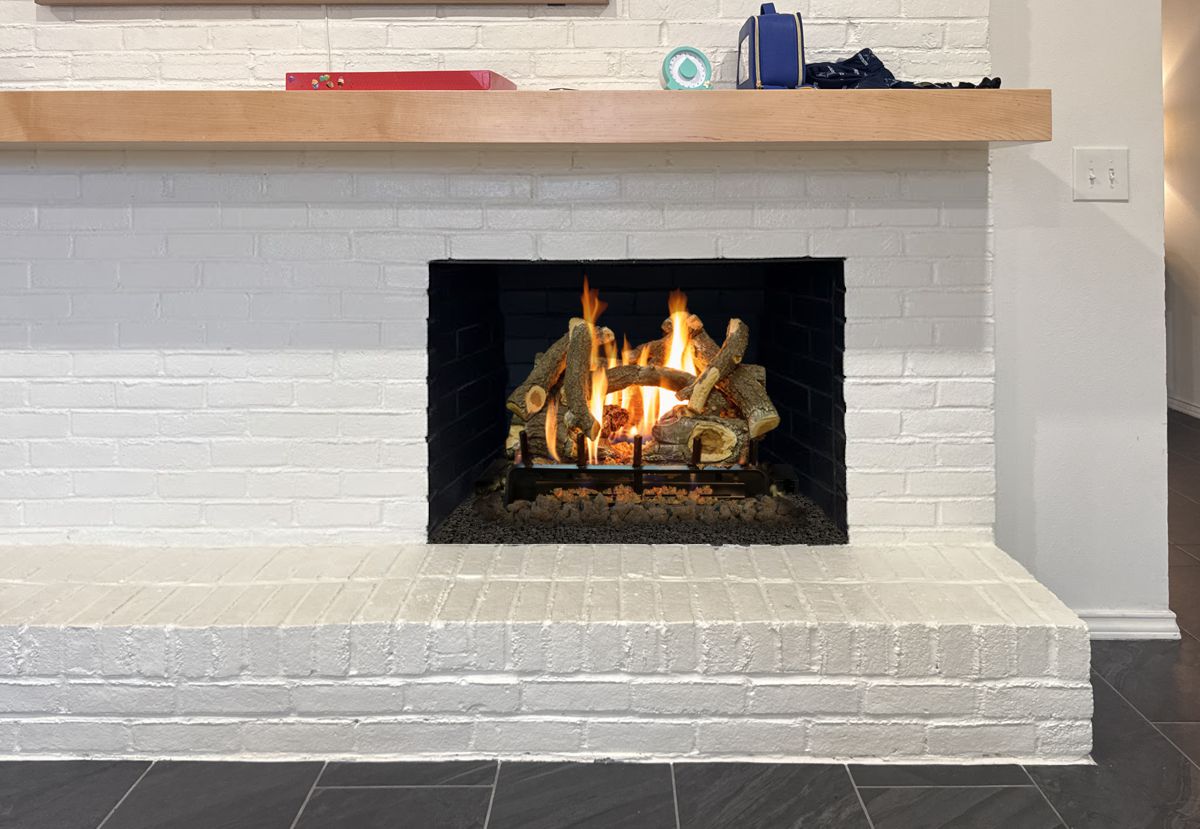

Option #1: Grand Canyon 24 Inch Arizona Weathered Oak Charred Gas Logs with 3-BURNER

AWO

Option #2: Grand Canyon 24 Inch Arizona Weathered Oak Gas Logs with 3-BURNER

AJ

Option #3: Grand Canyon 24 Inch Arizona Juniper Gas Logs with 3-BURNER

DRIFTWOOD

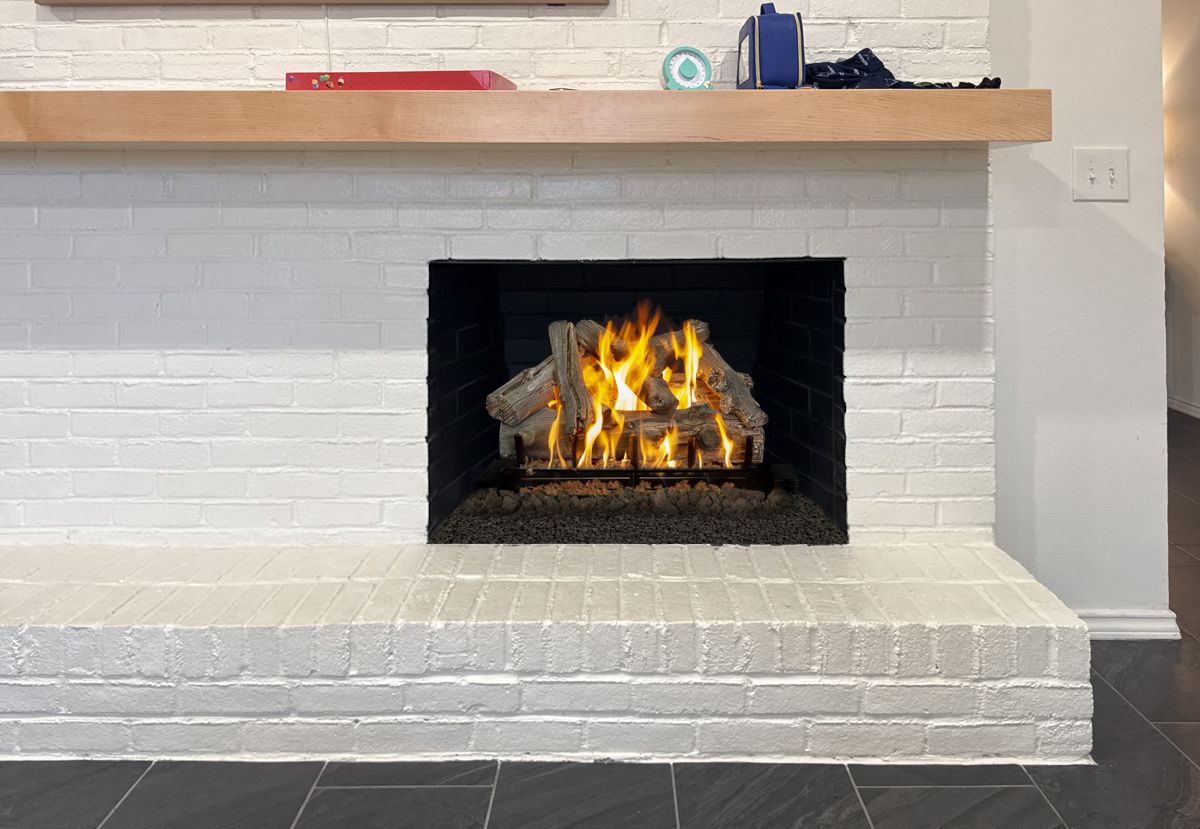

Option #4: Grand Canyon 24 Inch Driftwood Gas Logs with 3-BURNER

ASPEN

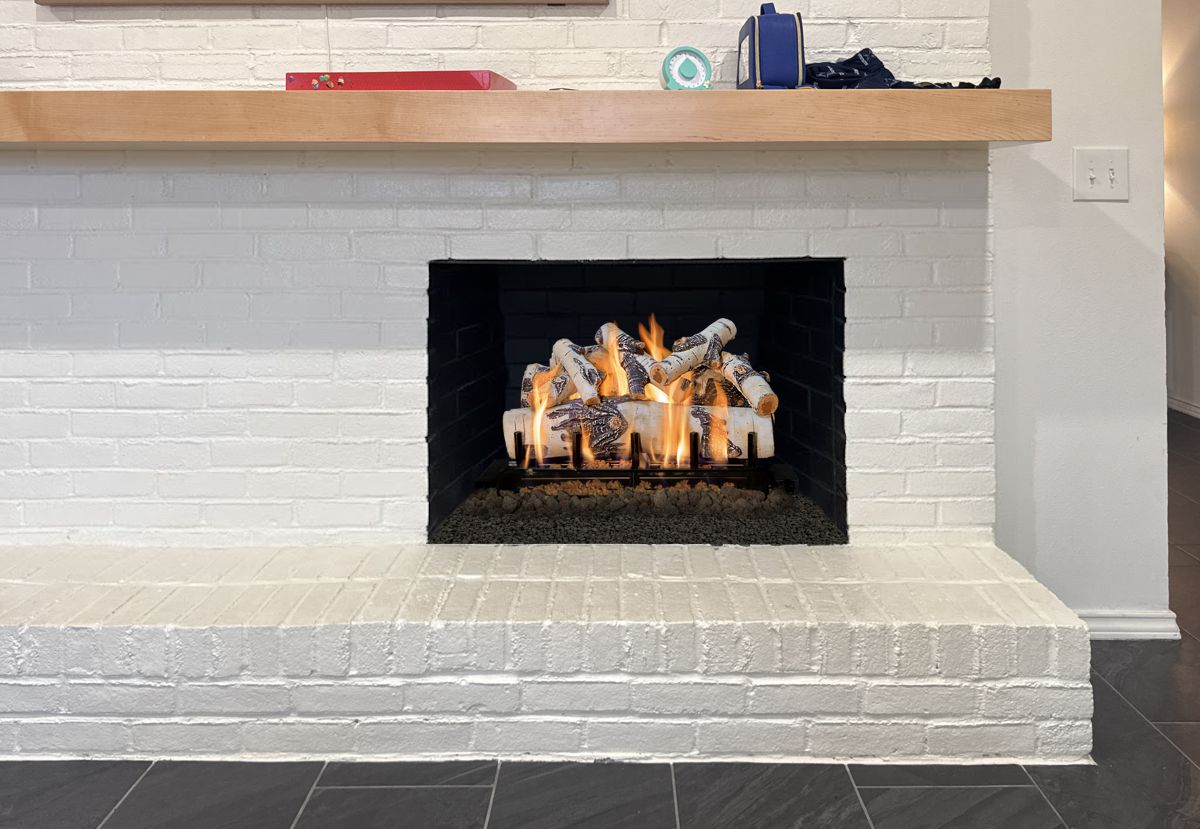

Option #5: Grand Canyon 24 Inch Quaking Aspen Gas Logs with 3-BURNER

Affordable Aluminum Doors

Aluminum is an excellent material for fireplace doors because it does not rust and can handle high temperatures when treated with powder coated finishes. It is also the most affordable. These doors must be open when buring gas logs.

Creekside

Option #6: PW Creekside Aluminum Bifold Fireplace Door in Black with Clear Glass and Mesh Curtains. Shown with Aspen Gas Logs.

Gas Log AirWash System

Glass doors normally must be open when burning a gas log in order to prevent the pilot mechanism from overheating. These doors have a special Gas Log AirWash system that feeds enough cooling air into the fireplace minimize overheating and allow you to burn your gas logs with the doors closed.

Modern-1

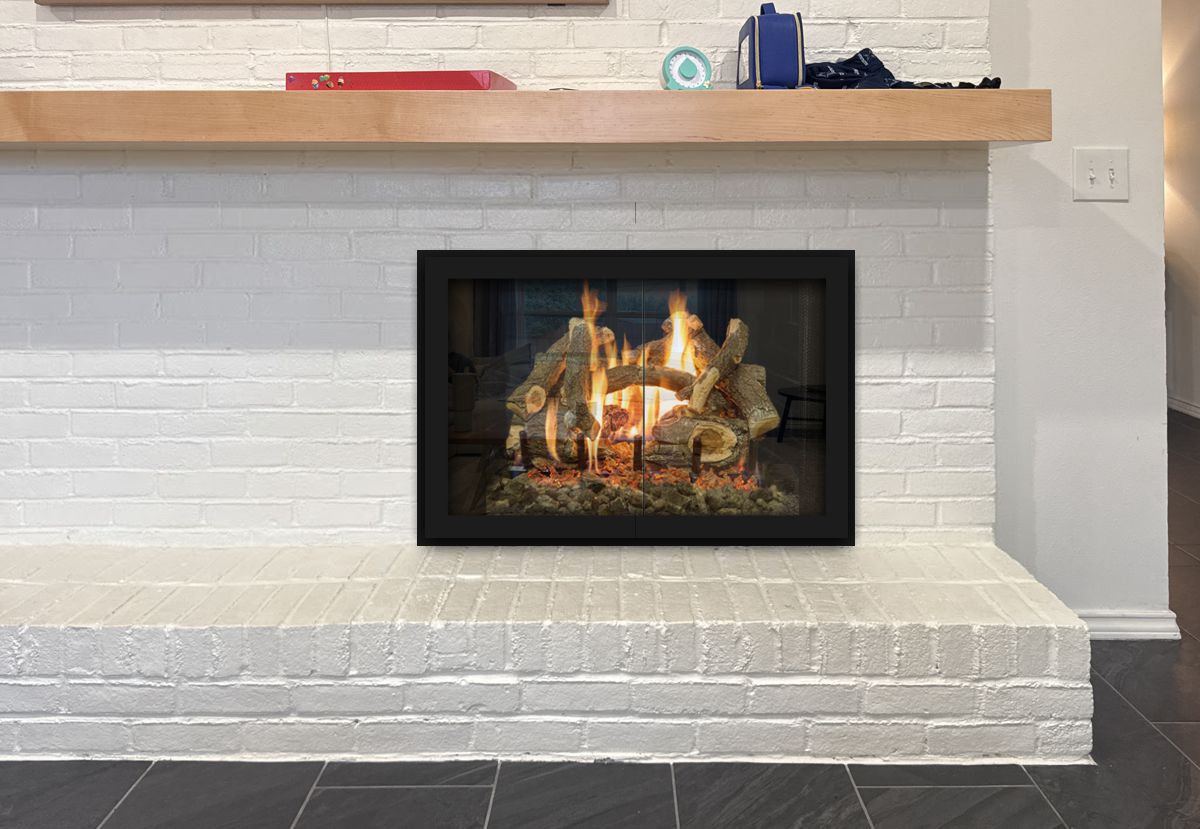

Option #7: Hearth Creations Modern-1 Sleek Steel Fireplace Door with No Visible Handles in Black with Stainless Steel Doors and Clear Tempered Glass. Includes Gas Log AirWash System for Burning Fires with the Doors Closed. Shown with Arizona Weathered Oak Charred Gas Logs.

High End Hand Forged Wrought Iron Doors

Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. The forging process produces a unique texture that you cannot get with laser cut steel and there are added hammered textures that can be for a more rustic applications. These doors are often used for extremely large fireplaces because of their heavy duty solid frame and hinges. They are commonly ordered with ceramic glass for buring hot fires with the doors closed.

Wrought Iron

Option #8: Hand Crafted Pacifico Wrought Iron Fireplace Door in Burnished Natural Iron with Clear Glass and Mesh Curtains. Shown with Driftwood Logs.

Grand Canyon 3-Burner

Wrought Iron

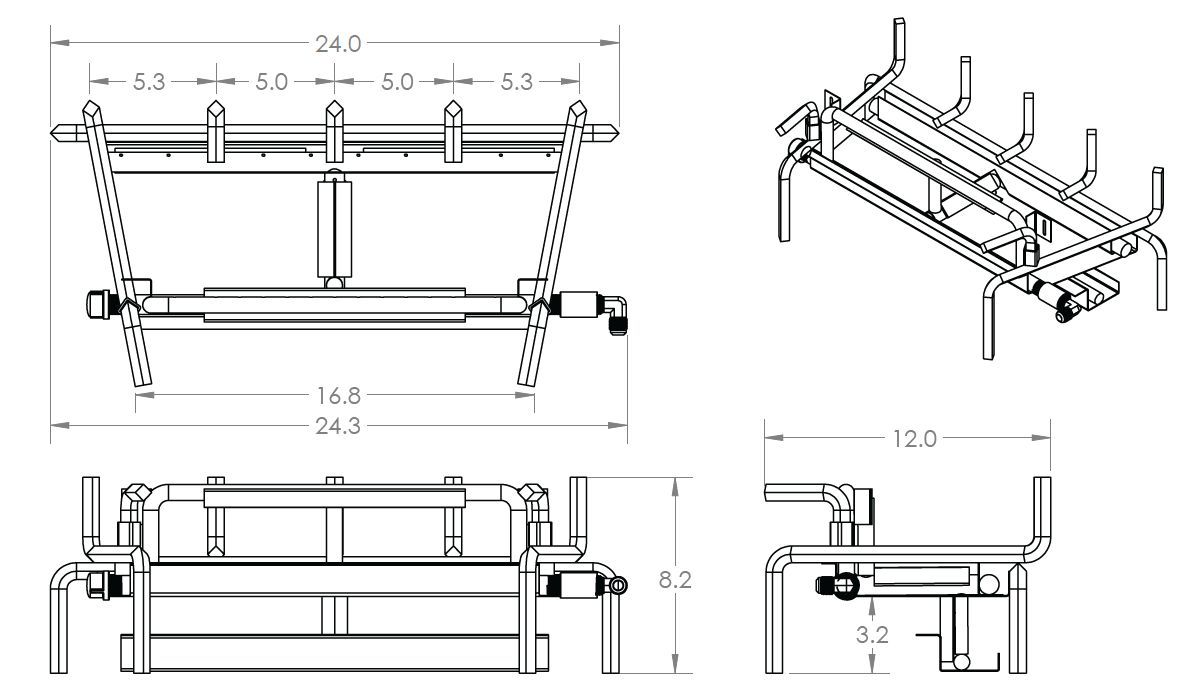

Grand Canyon 3-Burner Size Specs

Other Pictures

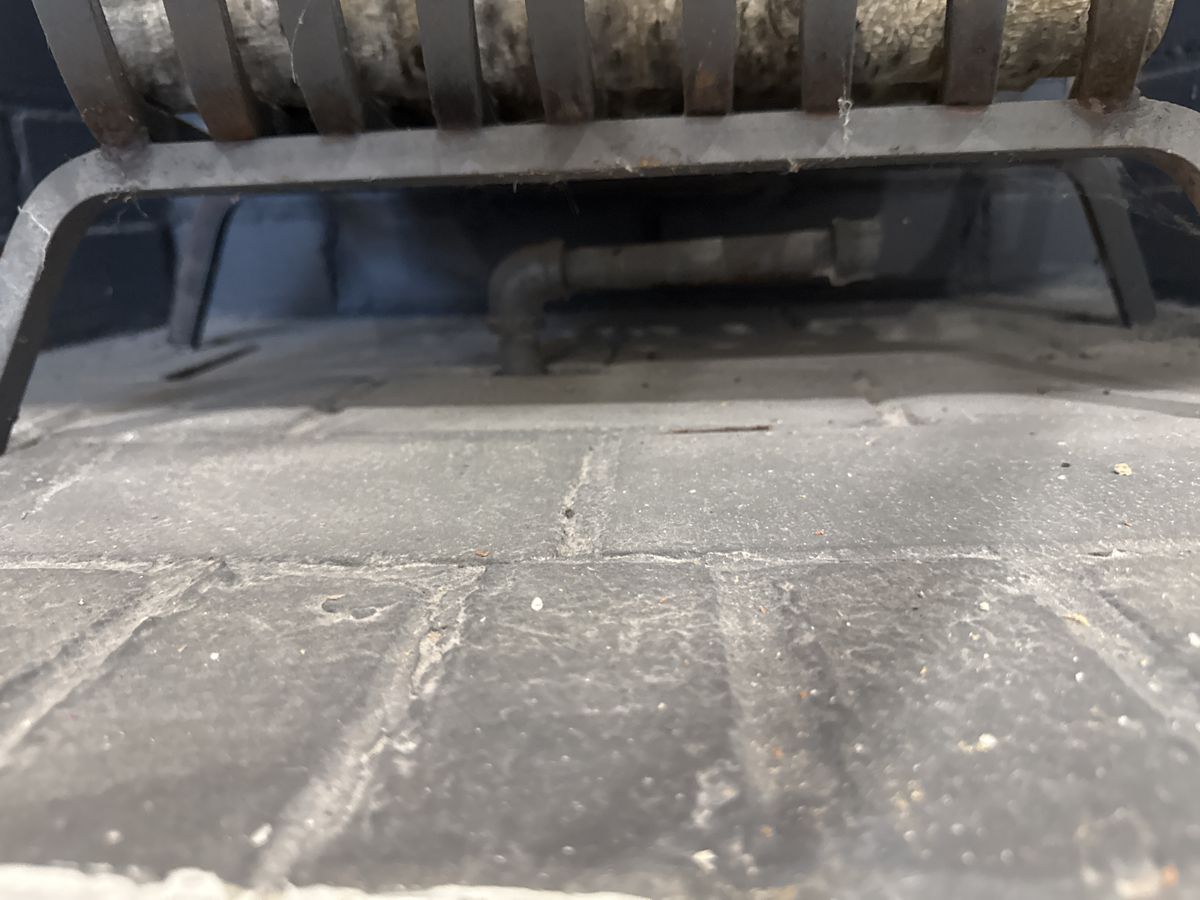

Fig #1 - Closeup

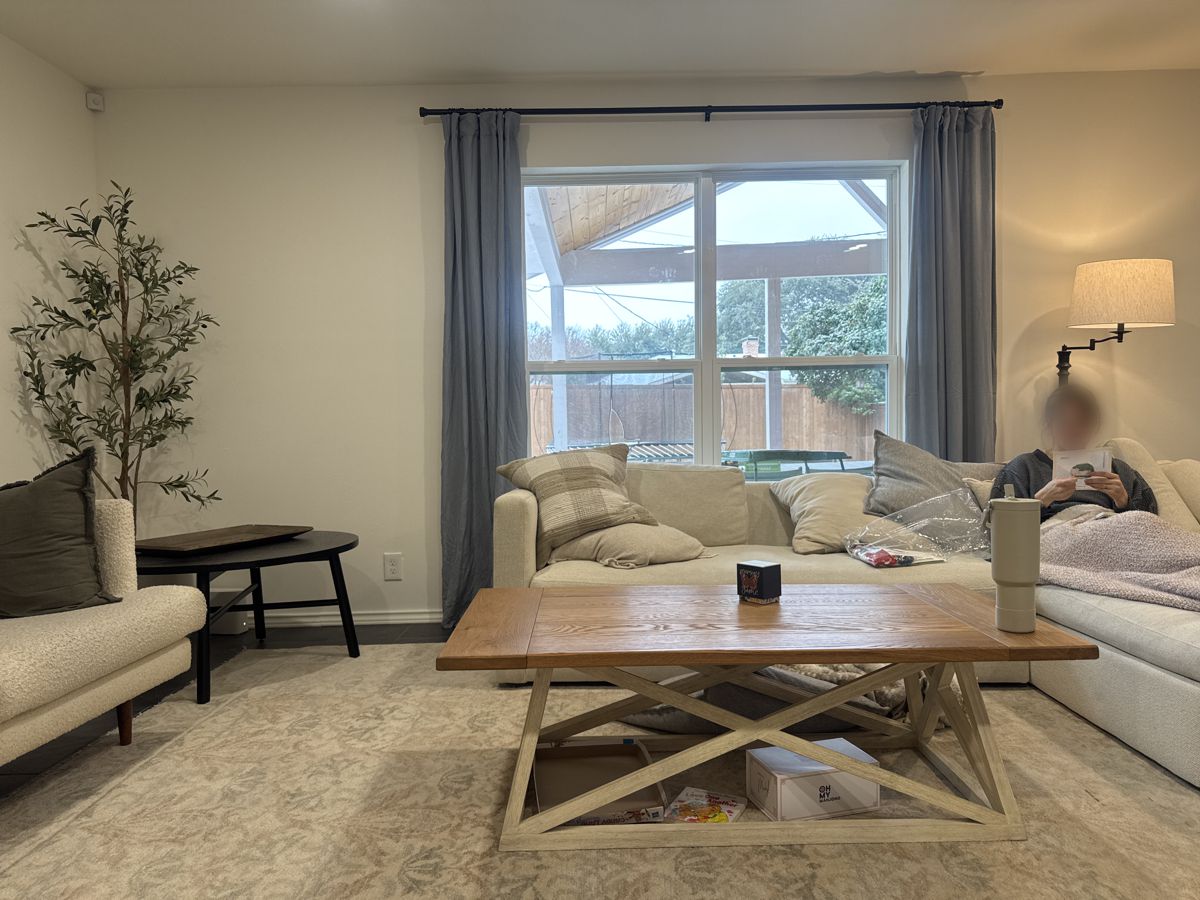

Fig #2 - Room Setting

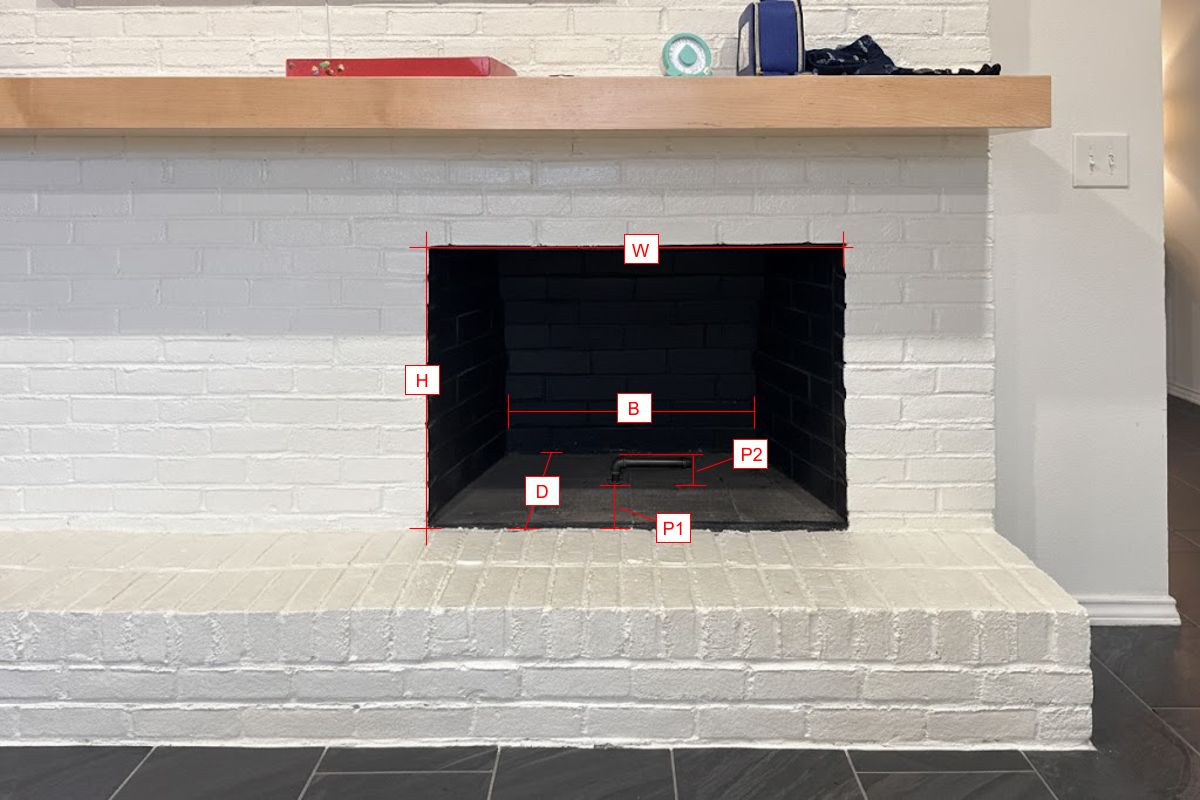

Fig #3 - Measuring Diagram

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
