Custom Doors for Corner Zero Clearance Fireplace - Project #20970

Customer Comments: Hi Greg, Looking for glass doors for corner fireplace. Thinking something contemporary in black or brushed nickel finish, bifold gray tint doors on both long and short side. Will keep existing mesh curtain in place. Opening dimensions are 36 1/4 inch long side, 20 5/8 inch short side, and 24 inch high. Thx

Our Comments: After reviewing your emails and images, it looks like an overlap fitting door is the best choice as shown in the mockups below. The front side can have bifold doors and the short side will have a single bifold door.

Fireplace Opening: 36 1/4" W (Front) x 20 5/8" W (Side) x 24" H

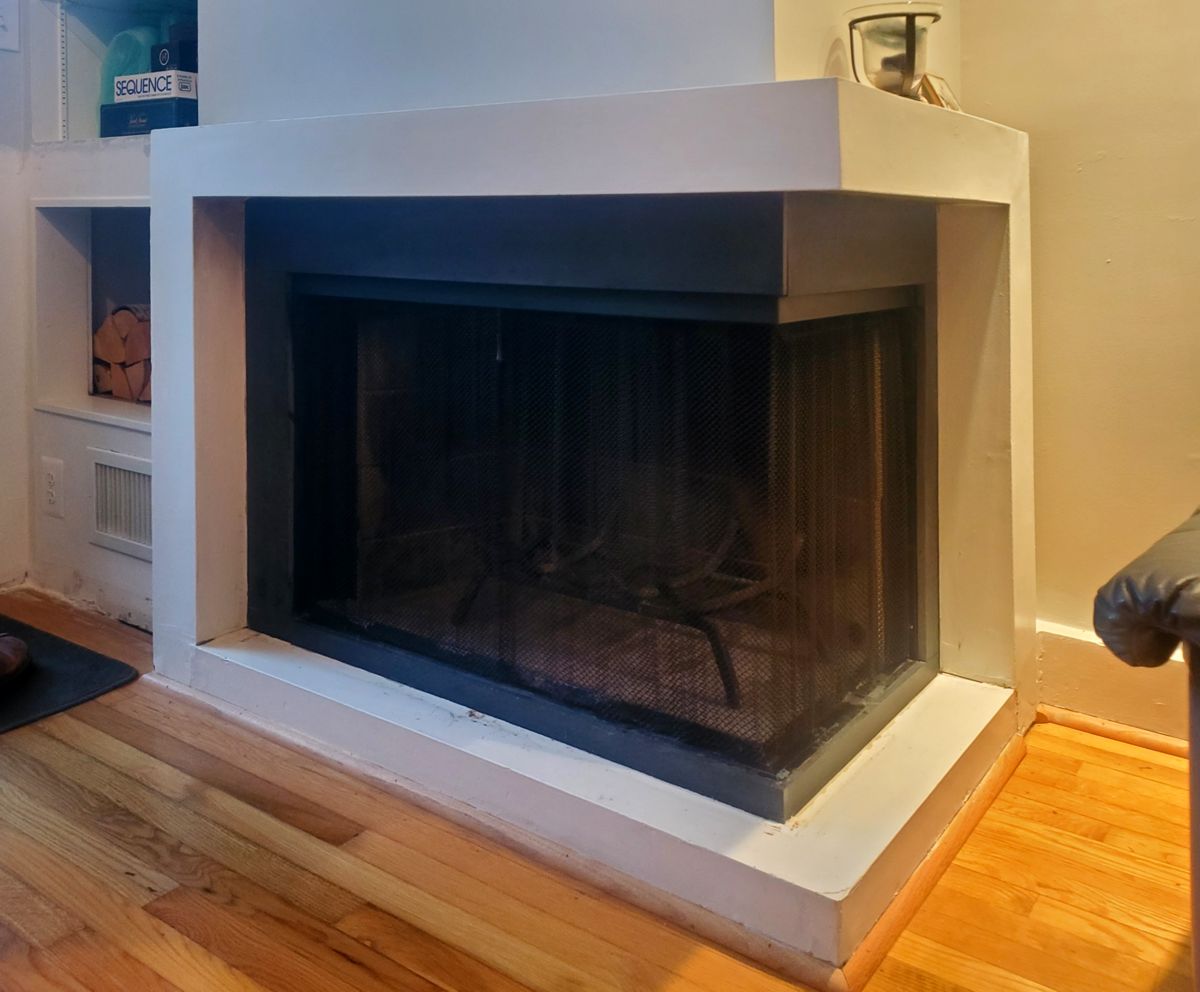

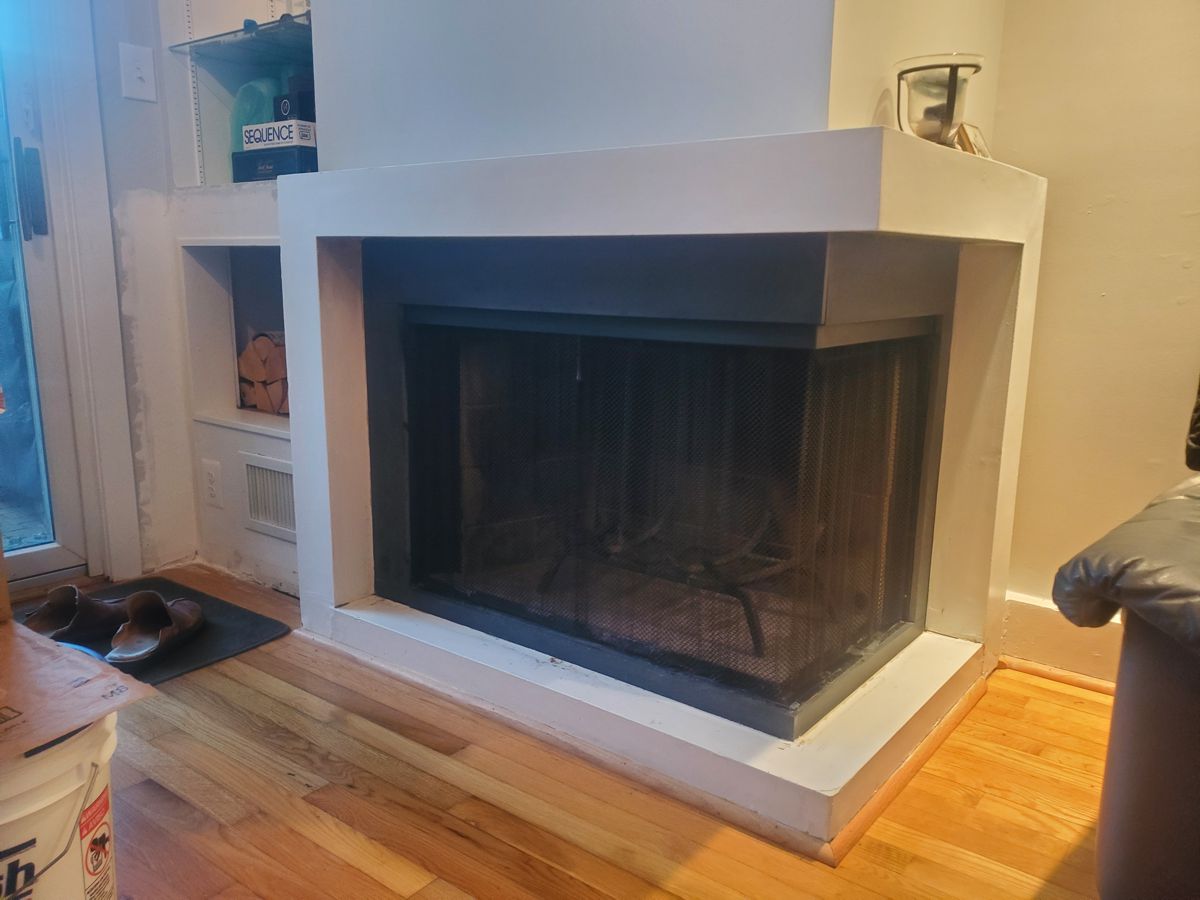

Before

Before:

Flat Steel

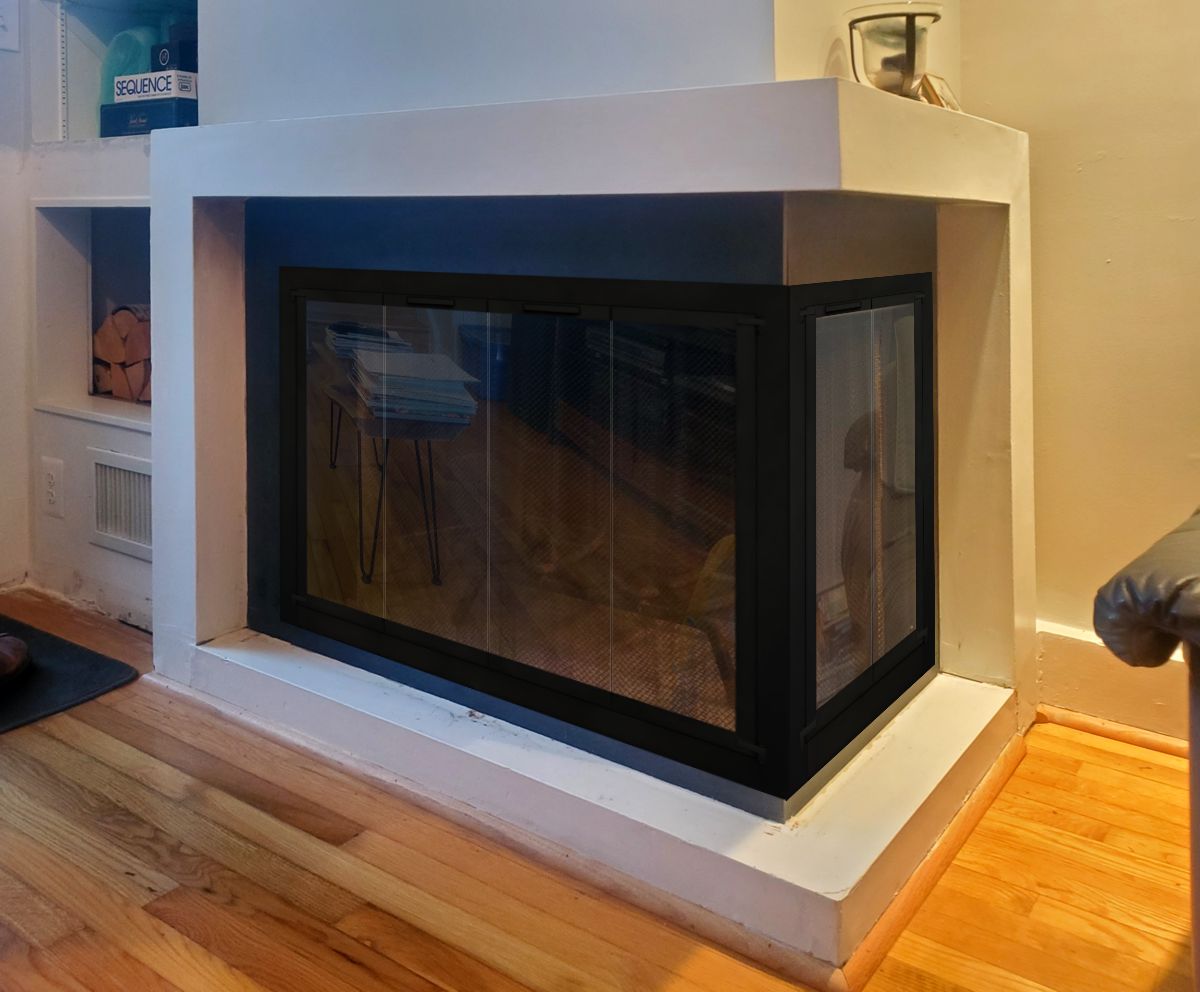

Option #1: Hearth Creations Flat Steel Corner Fireplace Glass Door in Matte Black with Gray Tinted Glass.

Flat Steel

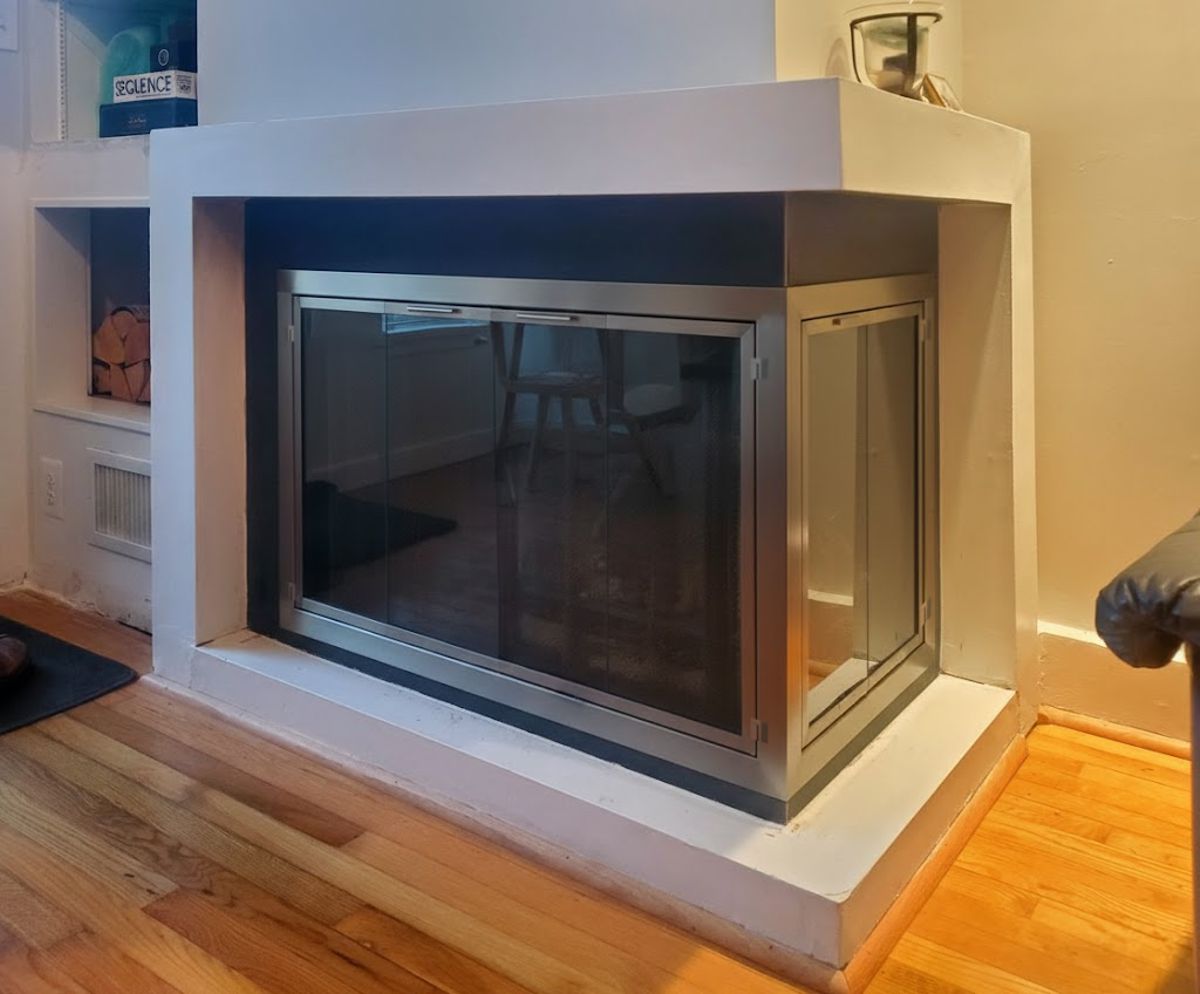

Option #2: Hearth Creations Flat Steel Corner Fireplace Glass Door with Inset Door Frames in Seamless Stainless Steel with Gray Tinted Glass. Can also be made using a satin chrome sheet metal overlay for substantilly less money.

Solid -vs- Overlay

Flat Steel

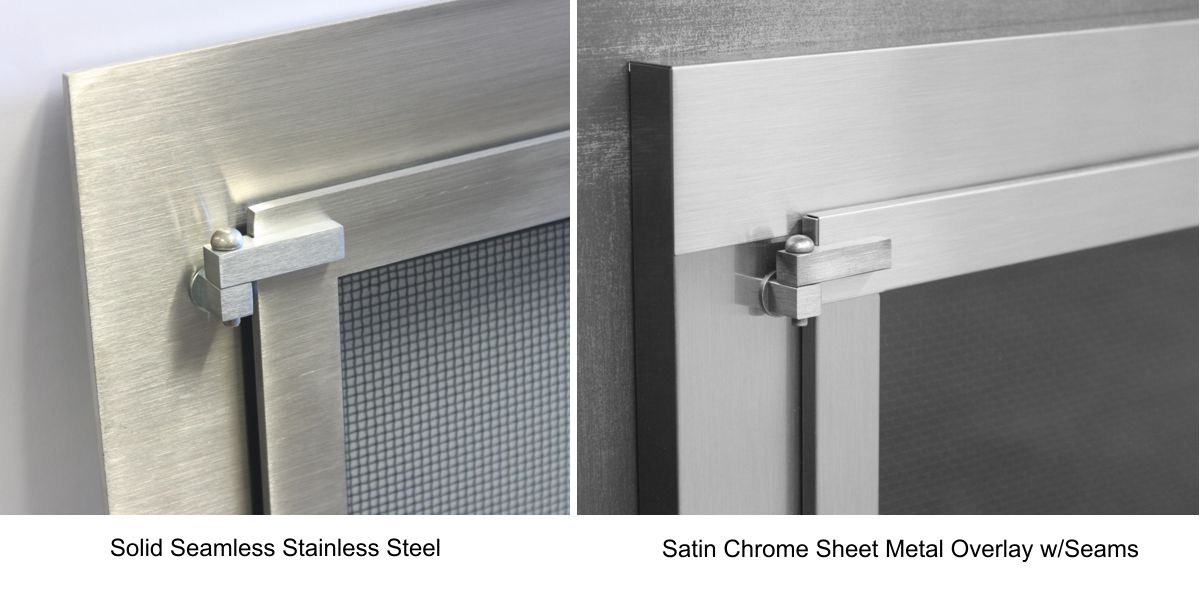

Shown Above: This is a comparison of solid steel vs a sheet metal overlay. The left picture is solid stainless steel without seams. On the right, is a satin chrome sheet metal overlay wrapped around a steel frame with seams at each joint. The sheet metal overlay is a fraction of the cost of solid stainless steel.

Flat Steel

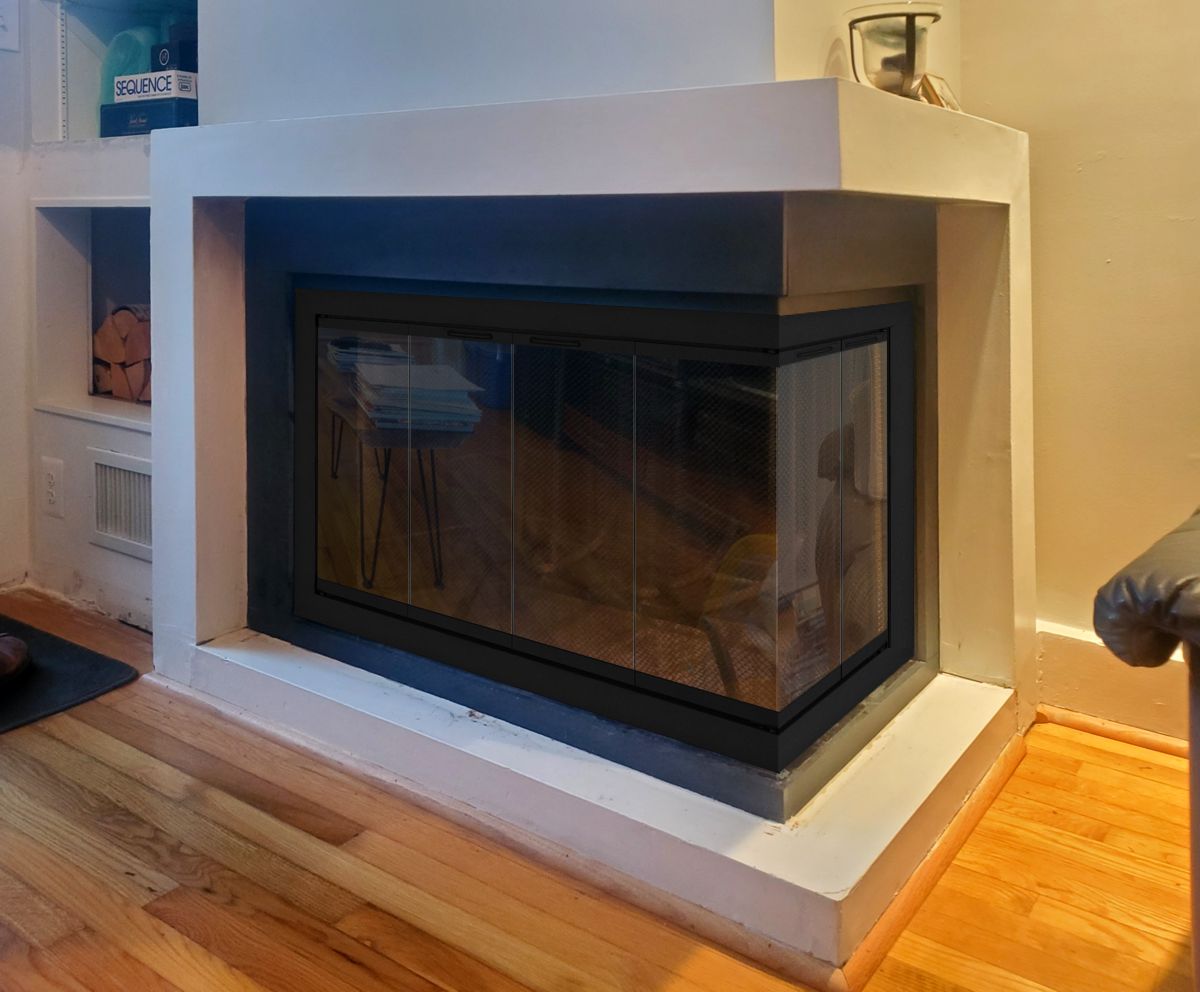

Option #3: Design Specialties Brookfield Aluminum Corner Fireplace Door in Black. Bifold Doors on the Front, Cabinet Doors on the Side.

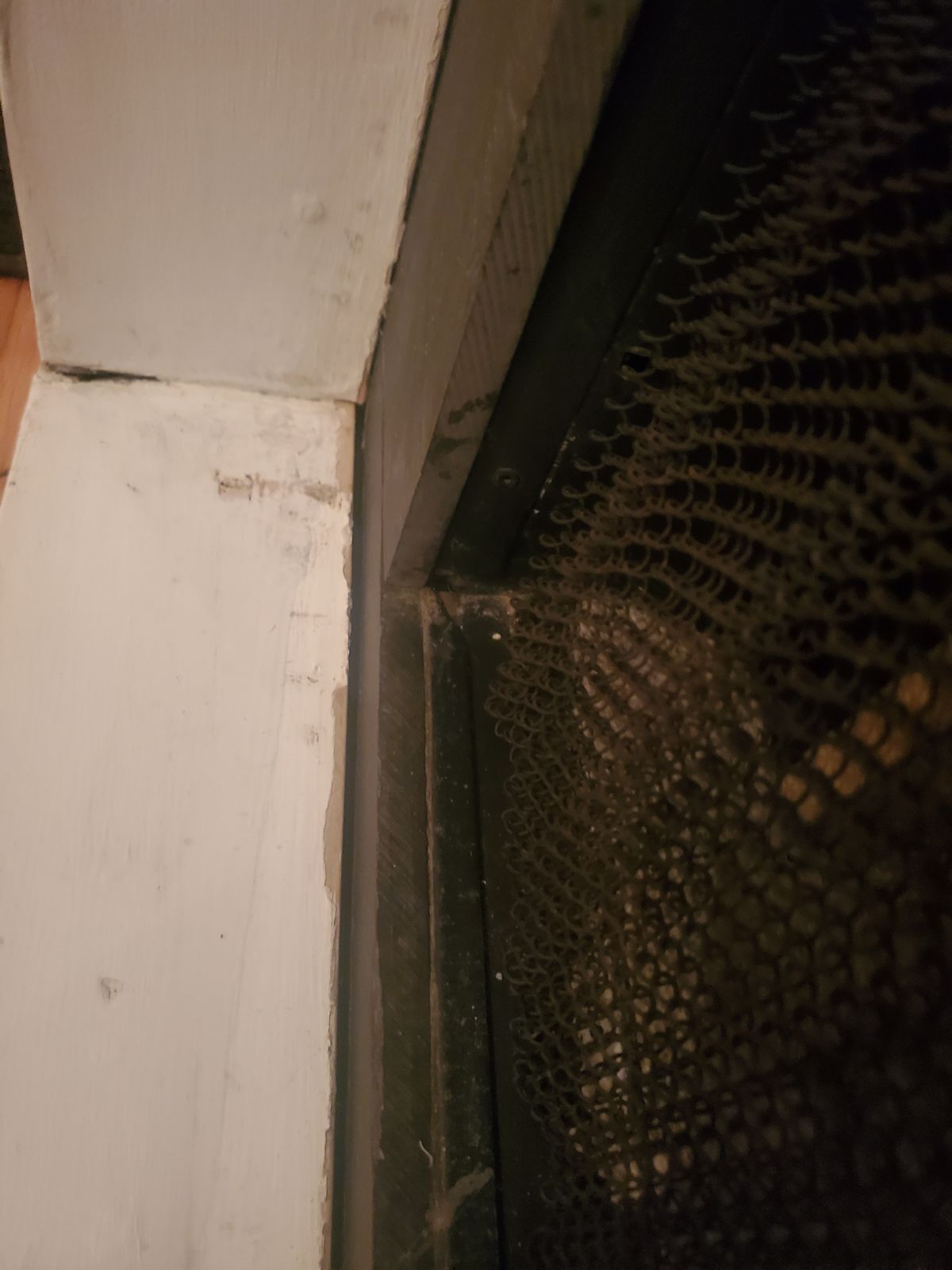

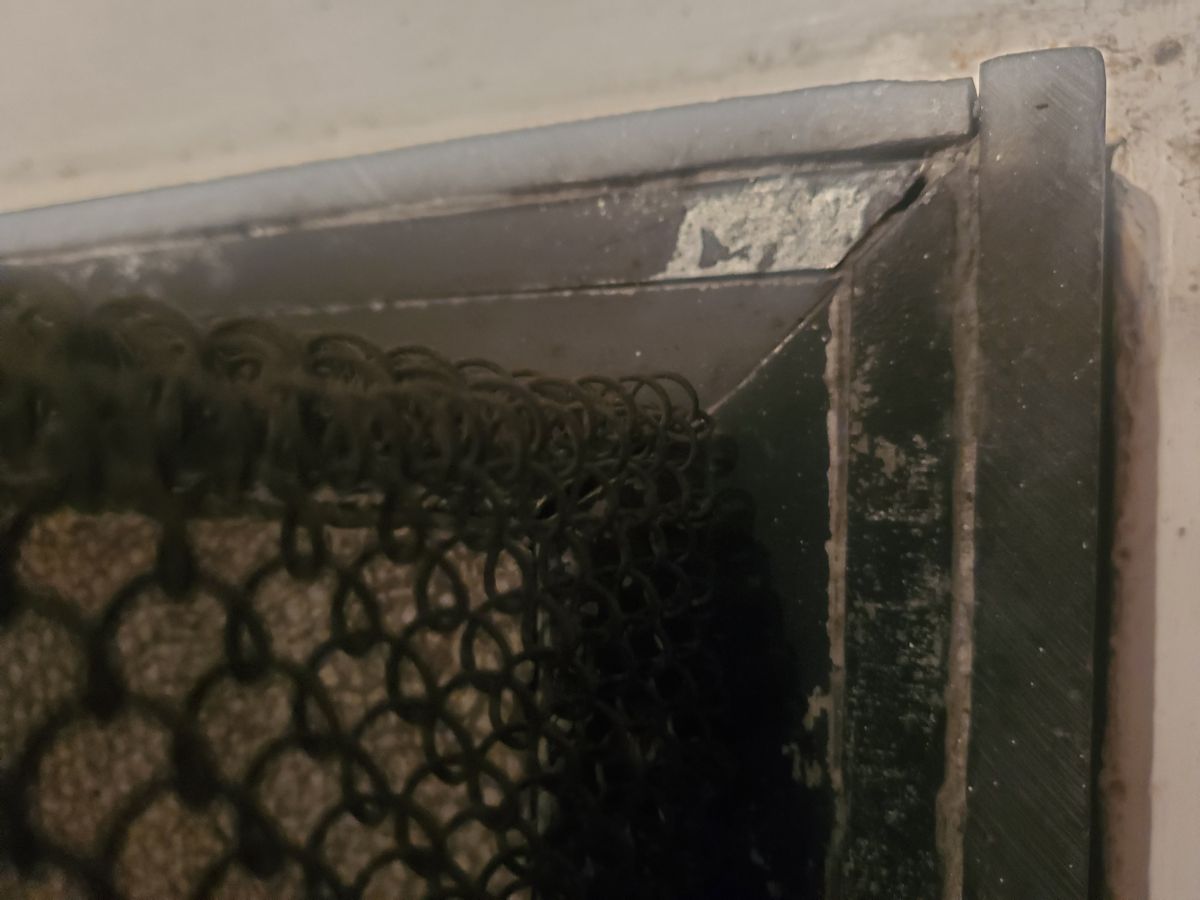

Closeup Pictures

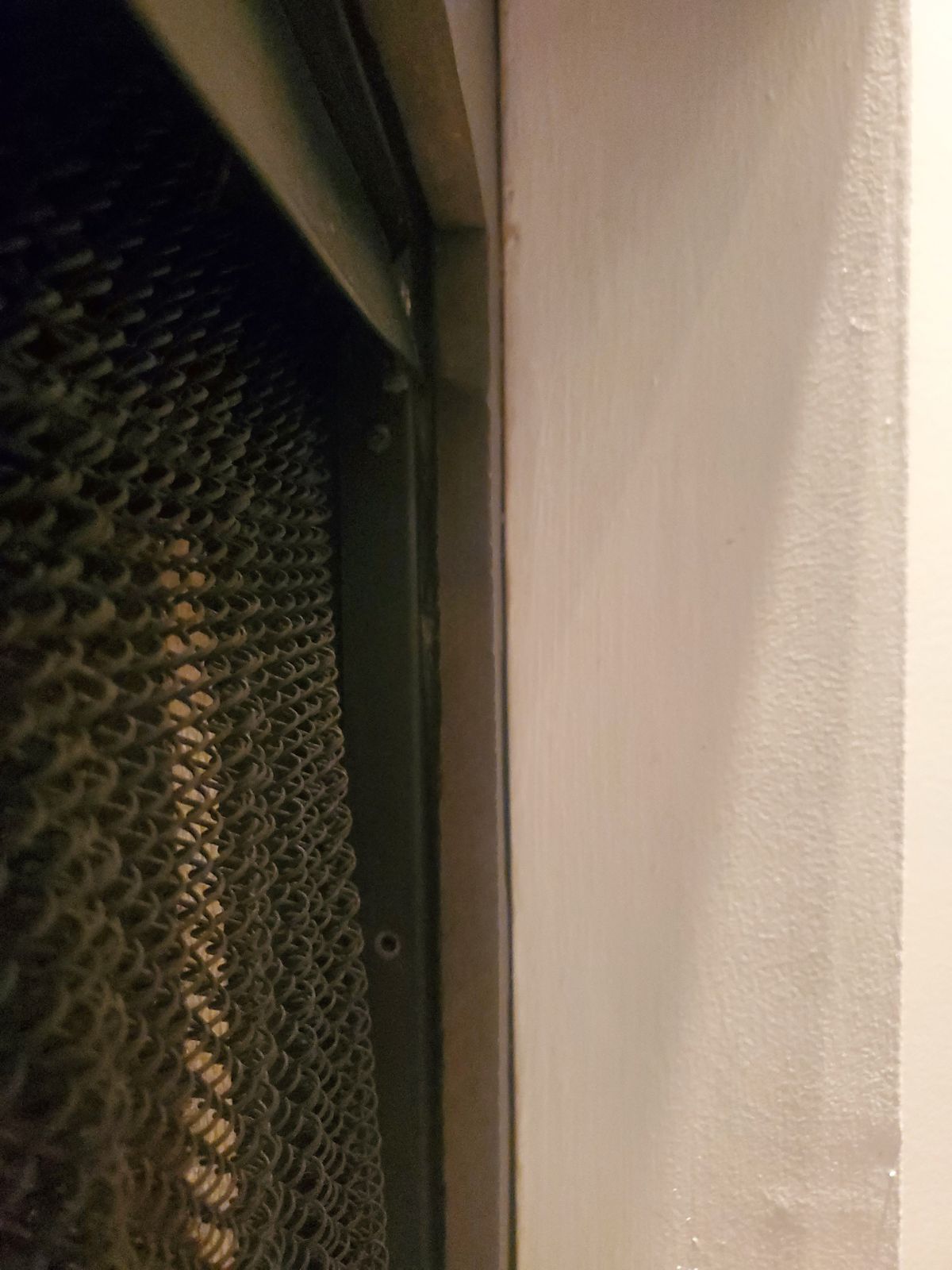

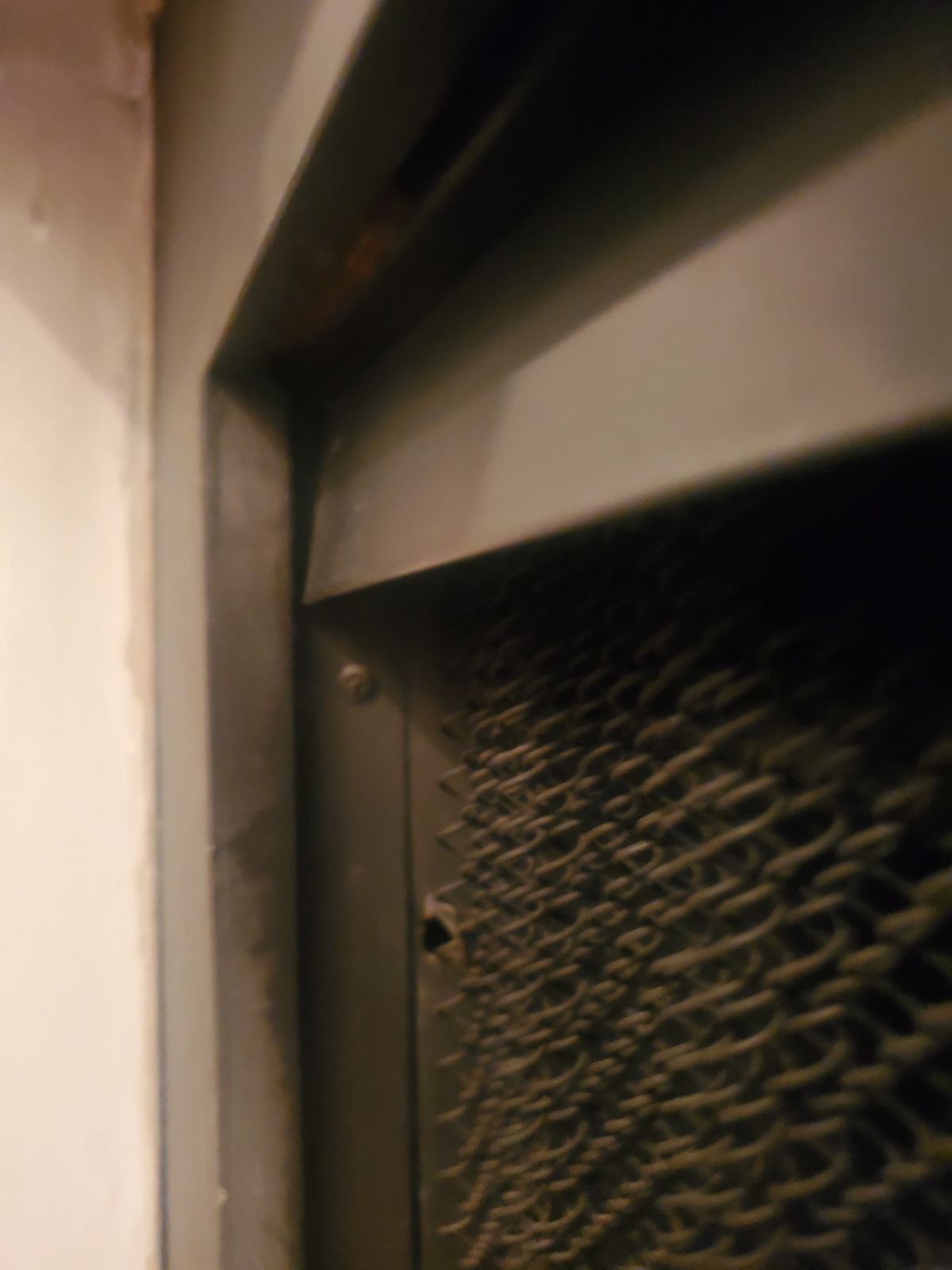

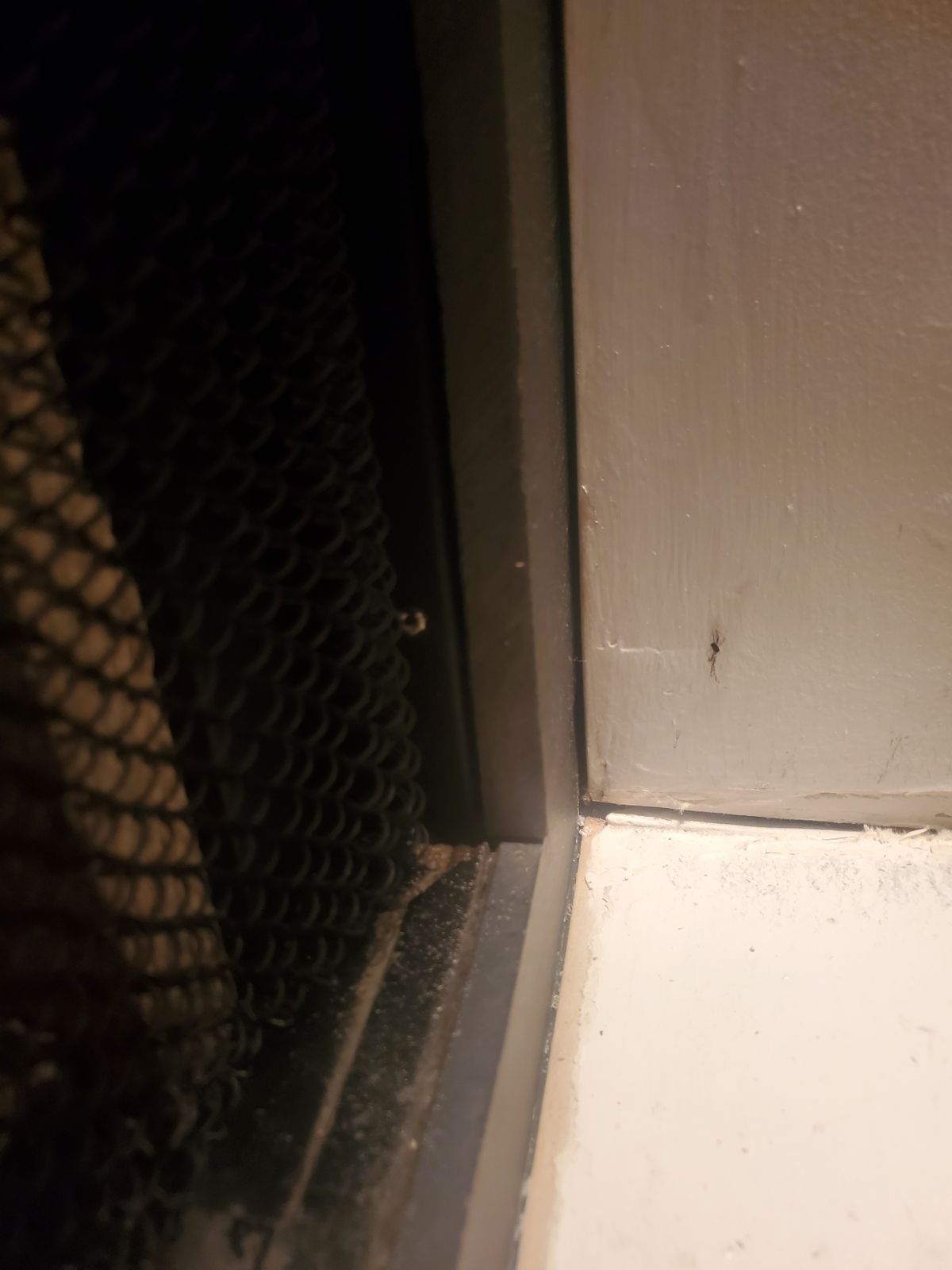

Closeup #1

Closeup #2

Closeup #3

Closeup #4

Closeup #5

Other Pictures

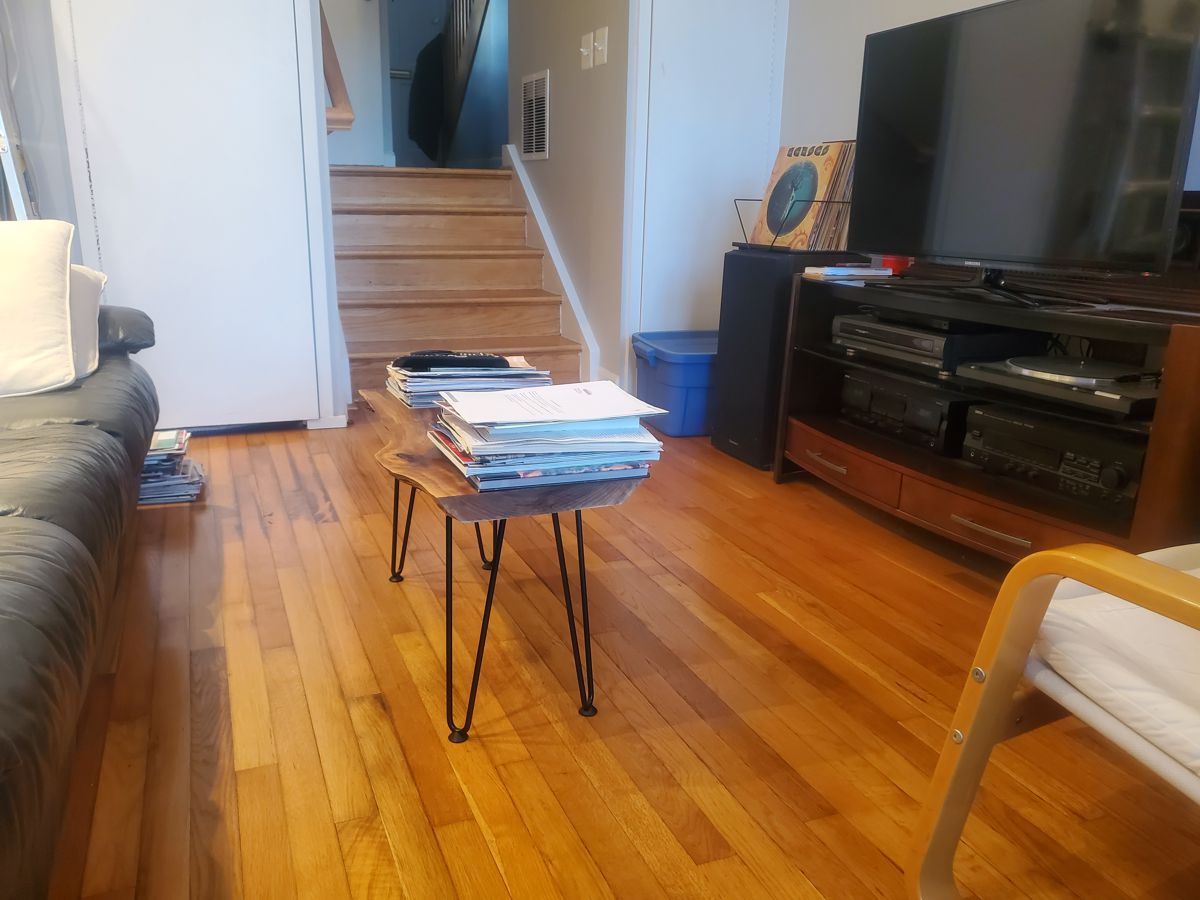

Fig #1 - Room Setting

Fig #2 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
