Glass Doors for Full Arched Brick Fireplace - Project #20965

Customer Comments: Looking to add a glass door to our arched fireplace. Sorry about the mess as we are just moving into the house

Our Comments: Each of these doors can be made in a full arch with tempered or ceramic glass and gate mesh backup doors. Ceramic glass is more expensive, but allows you to burn fires with the doors closed.

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle temperatures up to about 1450F and can have direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass.

Fireplace Opening: Unknown

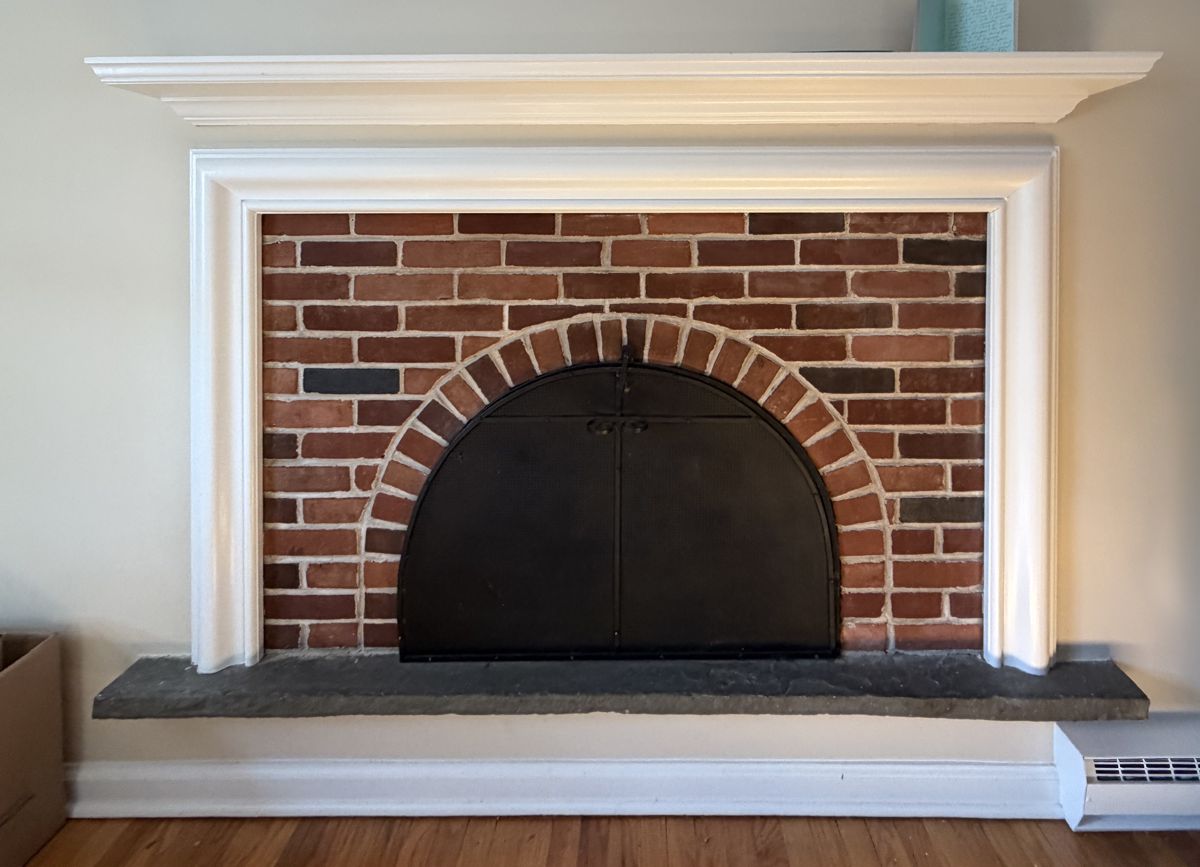

Before

Before:

Flat Steel

This door is laser cut from 3/16" flat steel. Notice how the door frames are squared at the bottom, yet the outer frame is still arched. This allows the doors to be hinged without fixed panels. These are available with tempered or ceramic glass.

Flat Steel

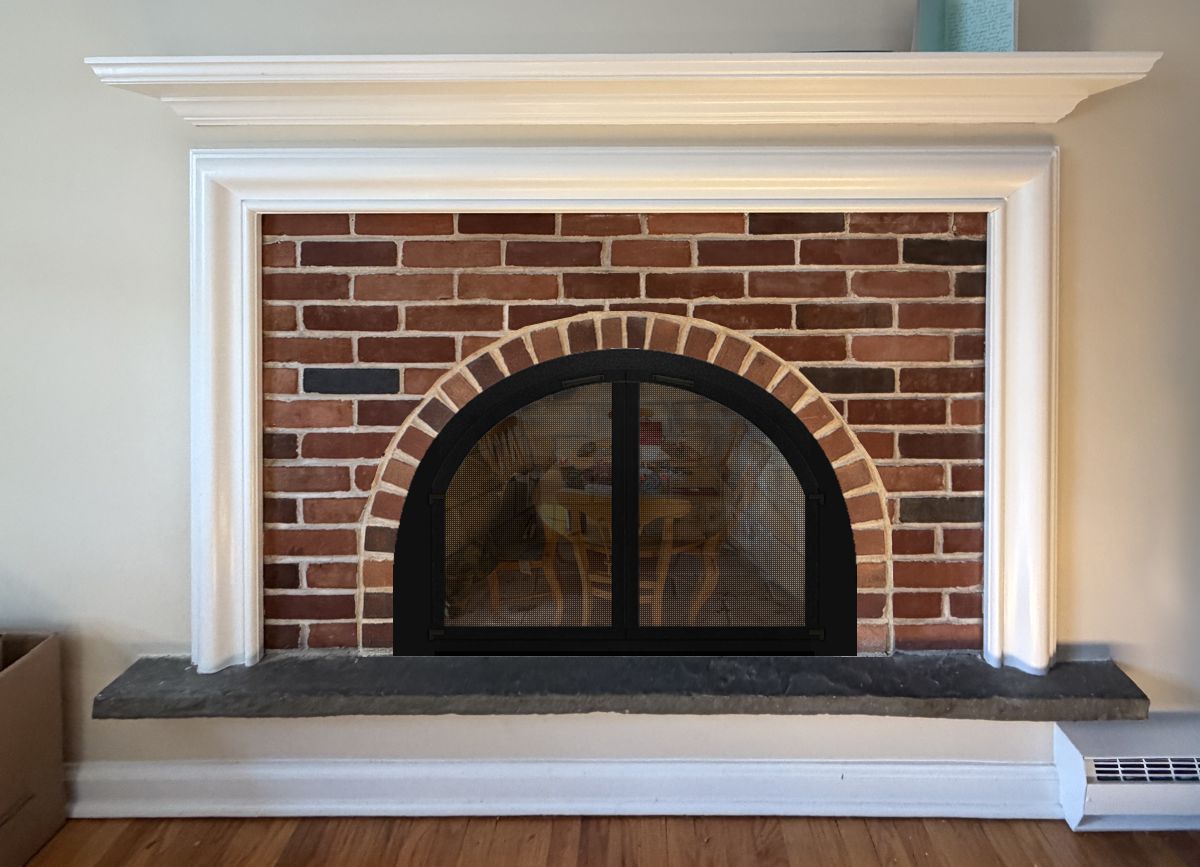

Option #1: Hearth Creations Flat Steel Full Arch Cabinet Fireplace Door in Black with Tempered or Ceramic Glass and Gate Mesh Backup Doors.

High-End Steel Doors

These heavy duty fireplace glass doors are laser cut from 1/4" thick solid steel and feature full view gasketed for a tighter seal and more open view of the fire. They can be made with fixed glass panels as shown, or with squared bottom frames like Option #1.

Flat Steel

Option #2: PW Revelation Steel Full Arch Fireplace Door with Fixed Side Panels in Black with Tempered or Ceramic Glass and Gate Mesh Backup Doors.

High End Hand Forged Wrought Iron Doors

Hand forged by a blacksmith from 1/4" thick solid wrought iron with heavy duty gasketed doors for a tighter seal and maximum draft reduction. The heavy duty hinges can be closer together, allowing a squared bottom frame to work on full arched fireplaces. Not only are these built to be used, they take on a more rugged natural look for those who appreciate craftsmanship and tasteful details. The forging process produces a unique texture that you cannot get with laser cut steel and there are added hammered textures that can be for a more rustic applications. These doors are often ordered with ceramic glass for buring hot fires with the doors closed.

Wrought Iron

Option #3: Hand Crafted Olde World Wrought Iron Full Arched Cabinet Fireplace Door in Hammered Medium Bronze with Tempered or Ceramic Glass and Heavy Duty Gate Mesh Backup Doors.

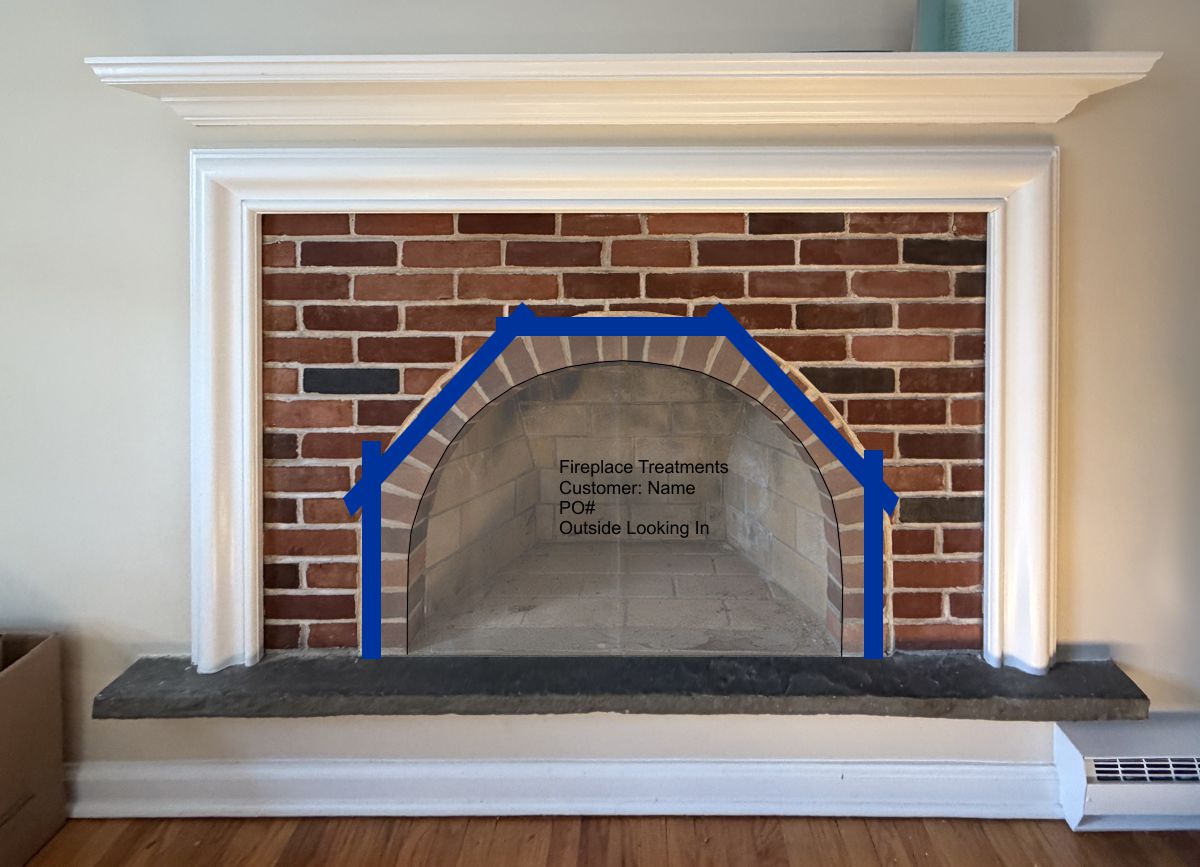

Template Instructions

Template

Template Instructions:

1. Tape a piece of heavy plastic sheeting to the fireplace.
2. Make sure the bottom edge is perfectly straight and even with the hearth.
3. Make sure it is taped tightly enough to remove any wrinkles.
4. Trace the shape of the opening with a fine tip marker including the mortar joints.
5. If you make a mistake, make a note and point to the correct part of the line that is to be used.
6. Mark the template as shown with: Outside Looking In, Fireplace Treatments, Customer: (Your Name), PO# (To Be Provided).
7. Email me a picture of the template and leave it in place so I can see how it was made and approve it.
8. Once I approve it, you can take it down, cut off the tape and mail it to the address that I provide.

Other Pictures

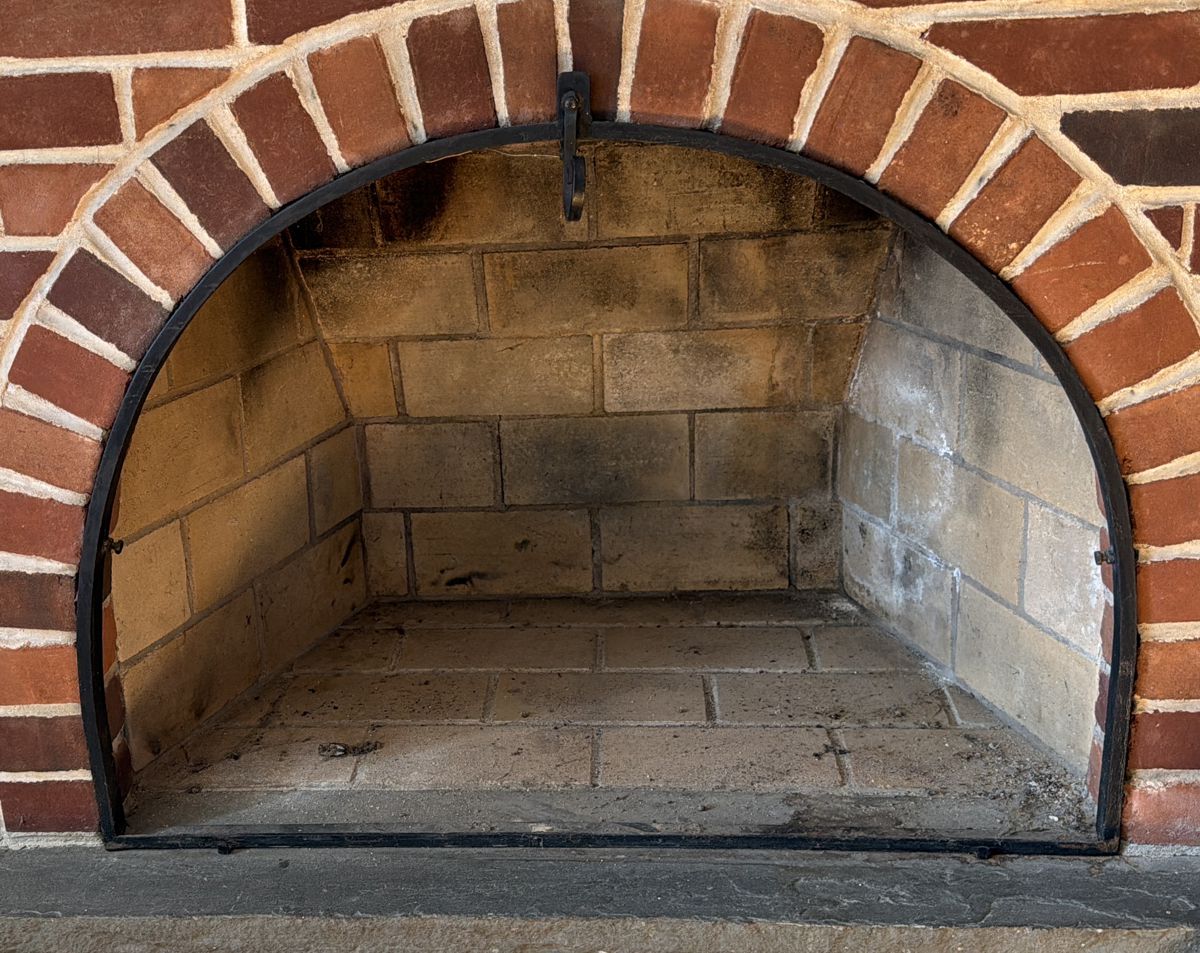

Fig #1 - Closeup

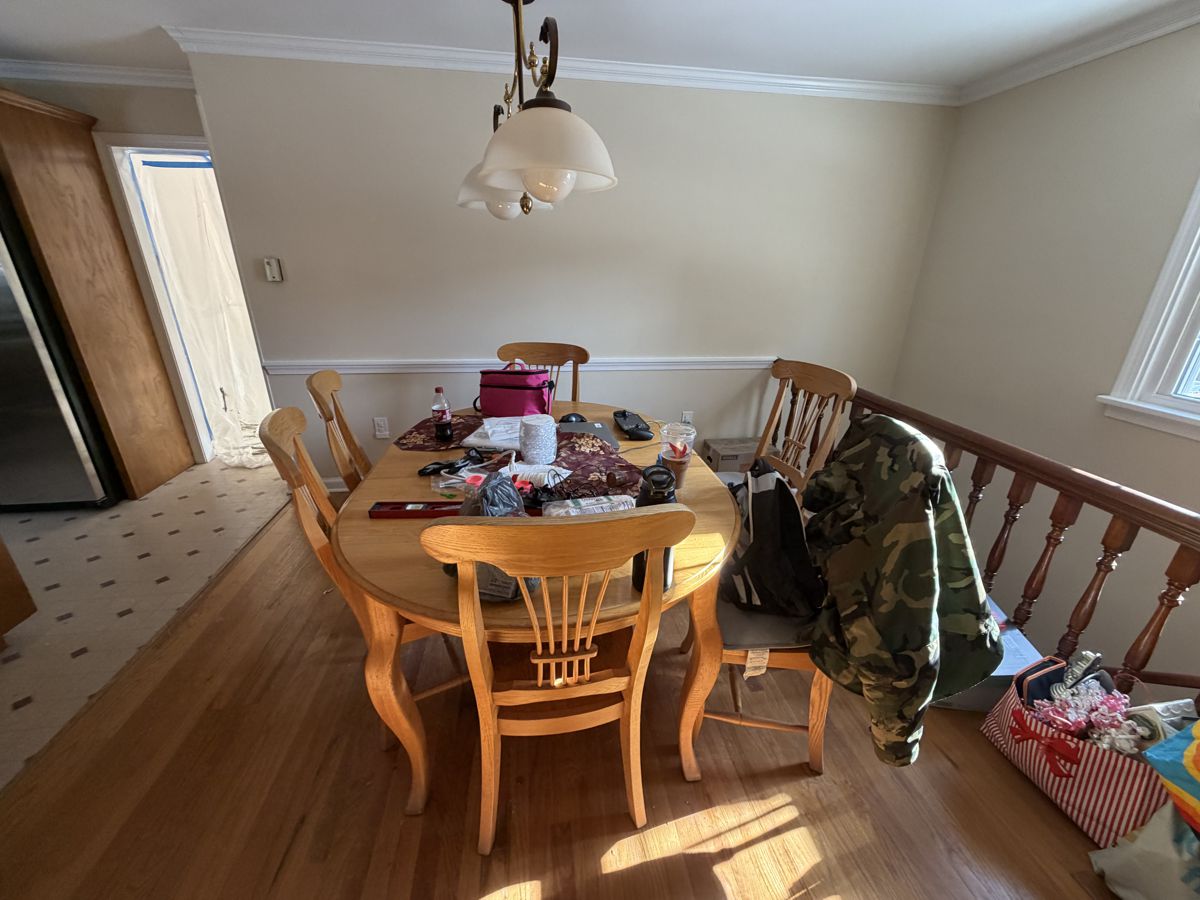

Fig #2 - Room Setting

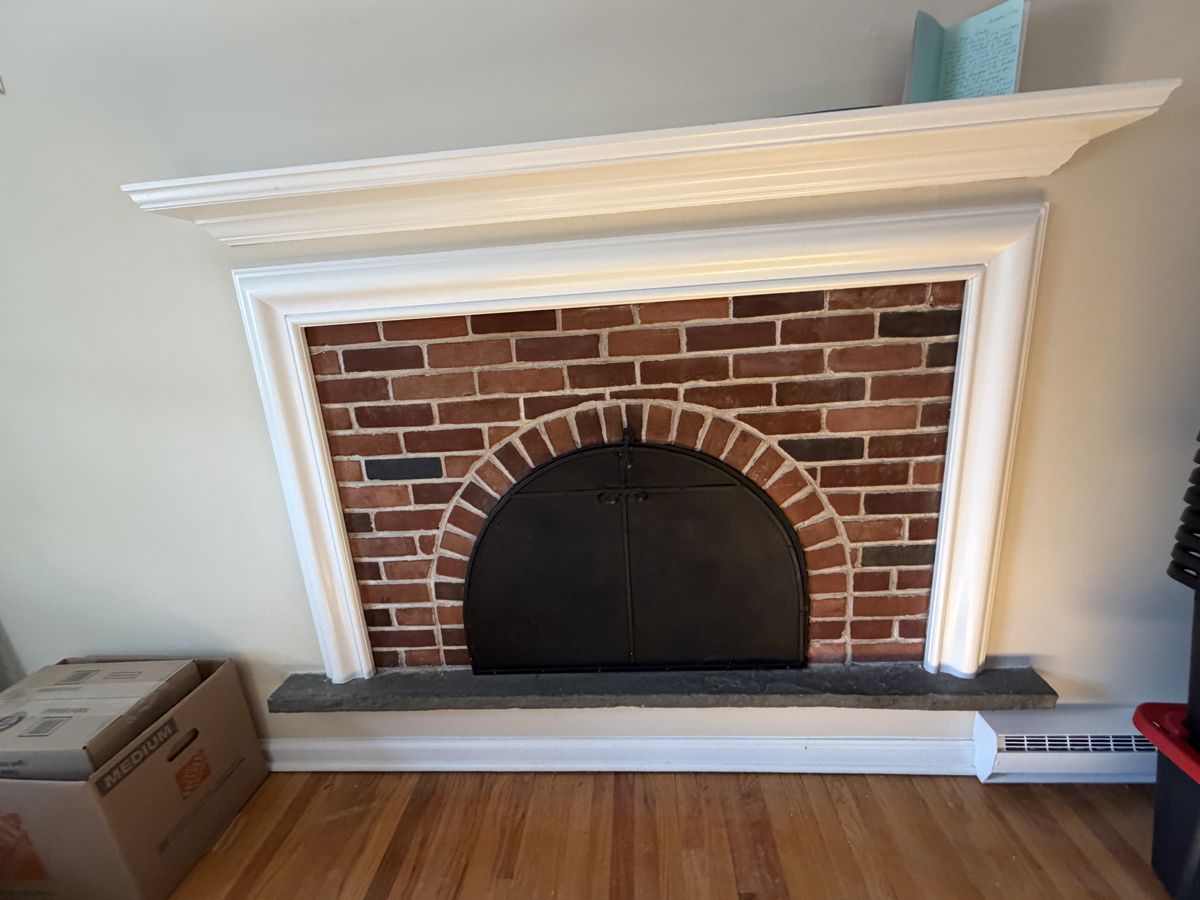

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
