Custom Fireplace Glass Doors - Project #20580

Customer Comments: Dimensions 44 x. 32.5. Top to bottom/ side to side. No furniture. Still waiting for delivery. Let me know if this is what you need.

Our Comments: There are 3 types of doors for heat circulating zero clearance fireplaces like yours. Doors that fit inside the opening, doors that slightly overlap the opening and retrim doors that completely cover the entire black metal fireplace and attach with magnets.

Fireplace Dimensions: 44" W x 32 1/2" H

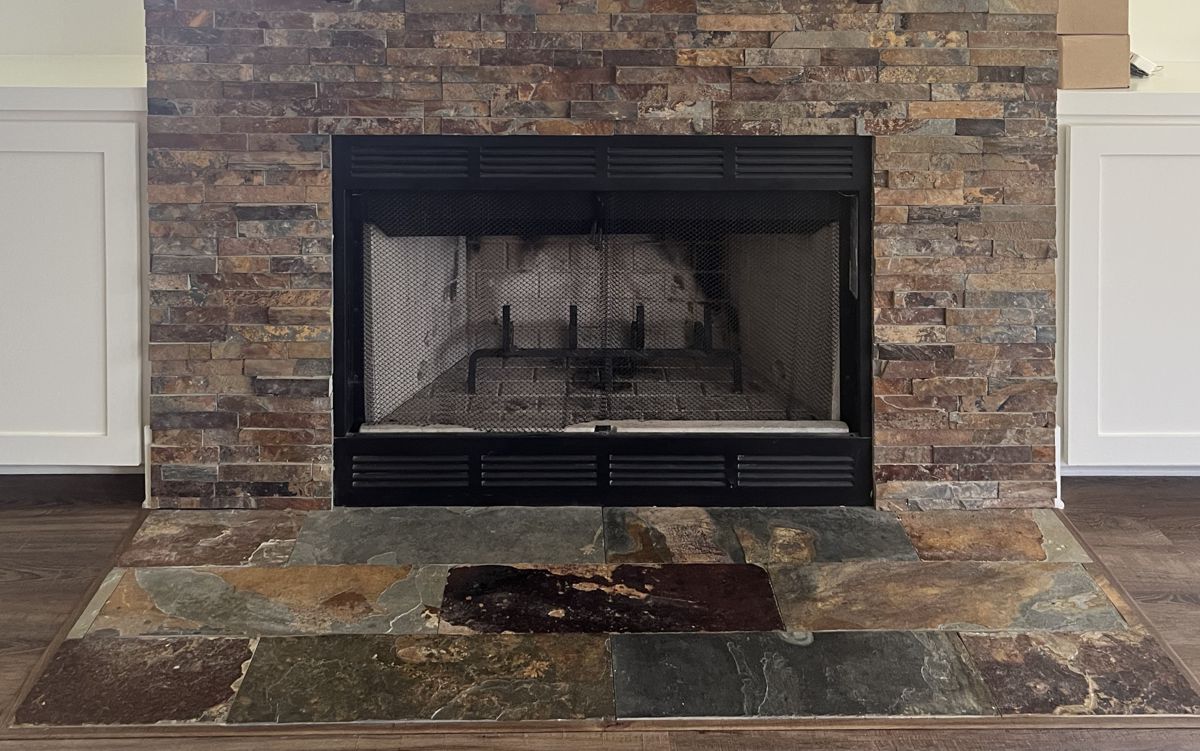

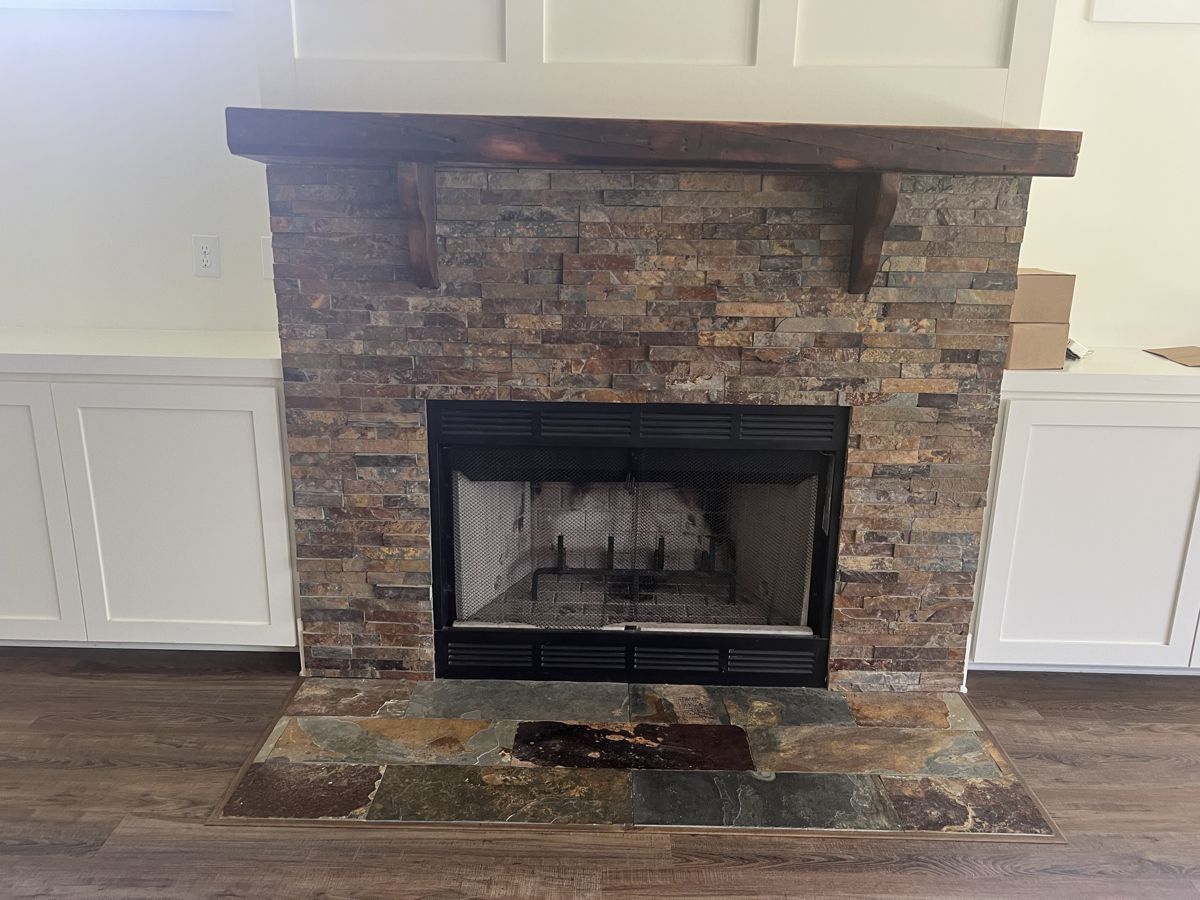

Before

Before:

Affordable Aluminum Doors

Aluminum is an excellent material for fireplace doors because it does not rust and can handle high temperatures when treated with powder coated finishes. It is also the most affordable.

Stiletto

Option #1: Design Specialties Stiletto Aluminum Bifold Fireplace Glass Door in Rustic Black. This door fits inside the opening.

Brookfield

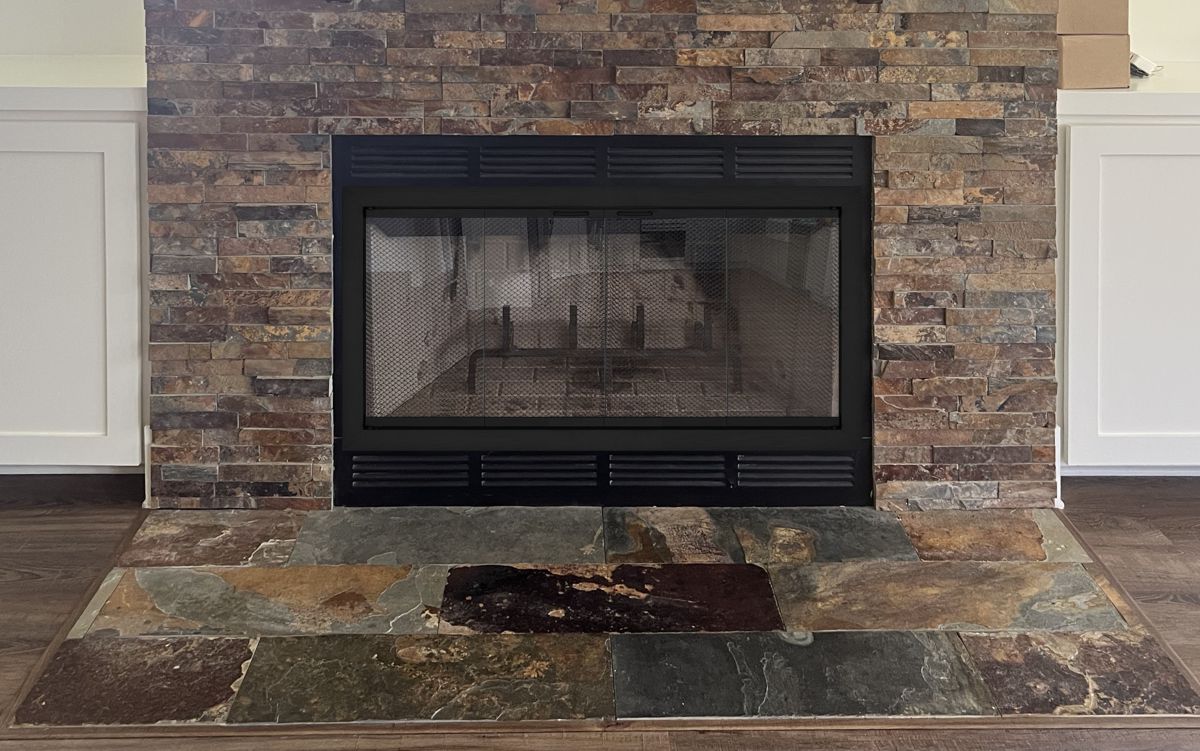

Option #2: Design Specialties Brookfield Aluminum Bifold Fireplace Glass Door in Rustic Black. This door overlaps the opening 1/4" on each side.

Retrim Doors

Retrim doors are a single unit designed to completely transform the look of the fireplace. There is no drilling or installation, they simply attach with magnets.

Retrim

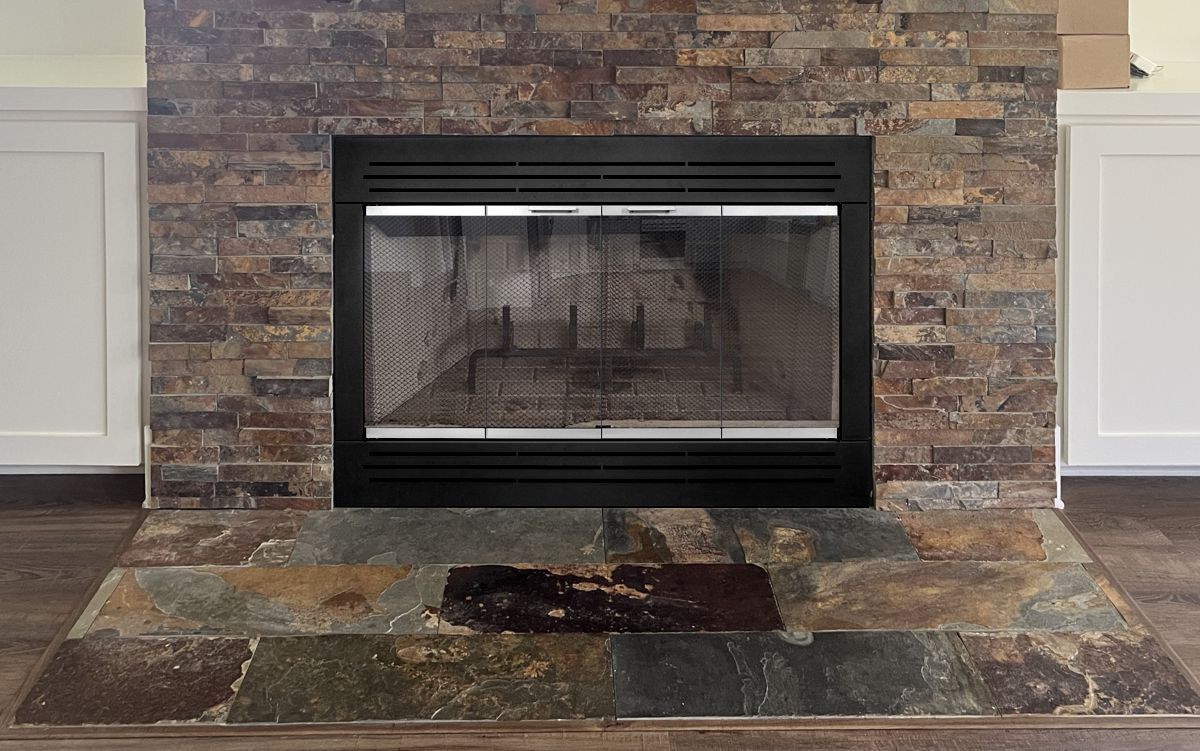

Option #3: Hearth Creations Retrim Basic Magnetic Attached Steel Bifold Fireplace Door Frame in Matte Black with Anodized Bright Nickel Door Aluminum Doors.

Retrim

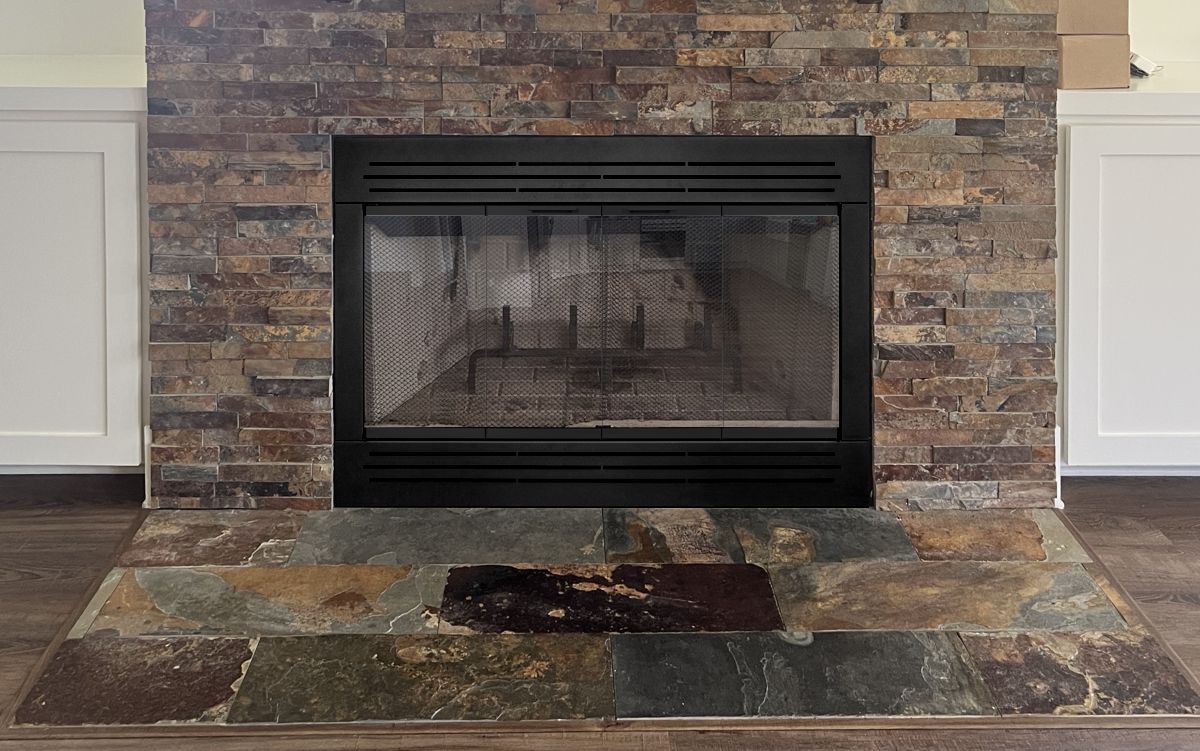

Option #3B: Hearth Creations Retrim Basic Magnetic Attached Steel Bifold Fireplace Door Frame in Matte Black with Black Doors.

Retrim

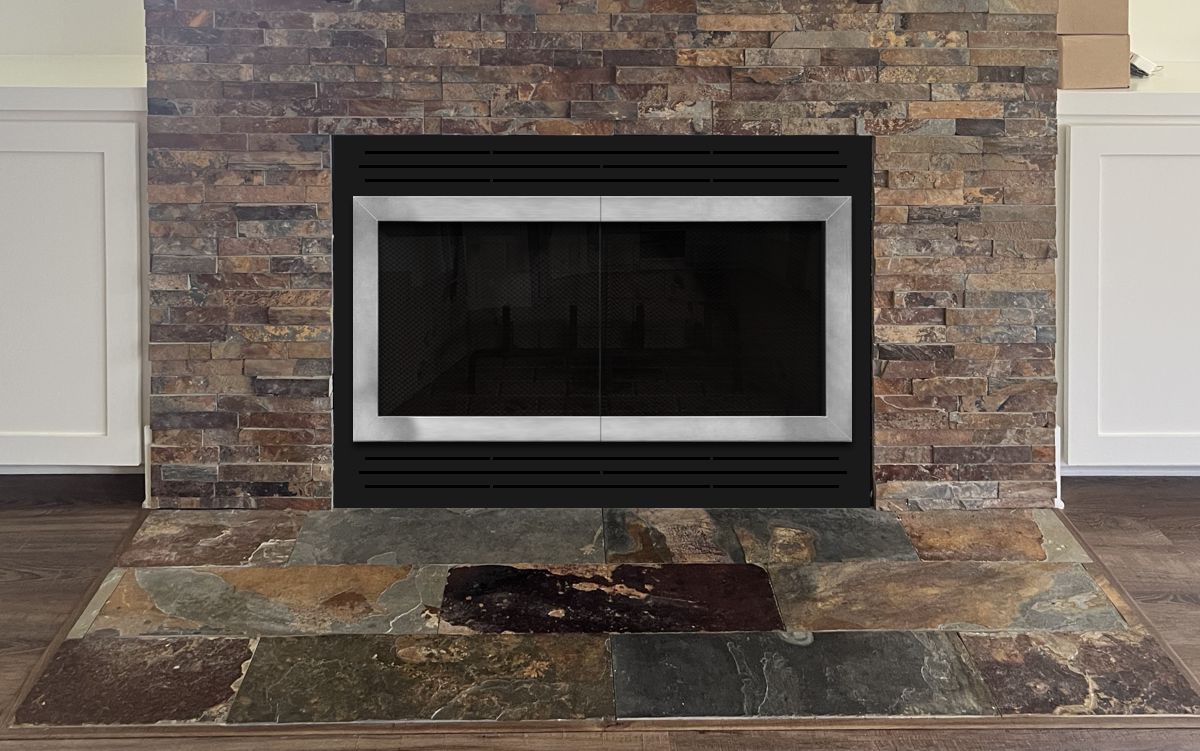

Option #4: Hearth Creations Retrim-5 Magnetic Attached Steel Cabinet Fireplace Door in Matte Black with Modern Satin Nickel Plated Doors and Gray Glass.

Retrim

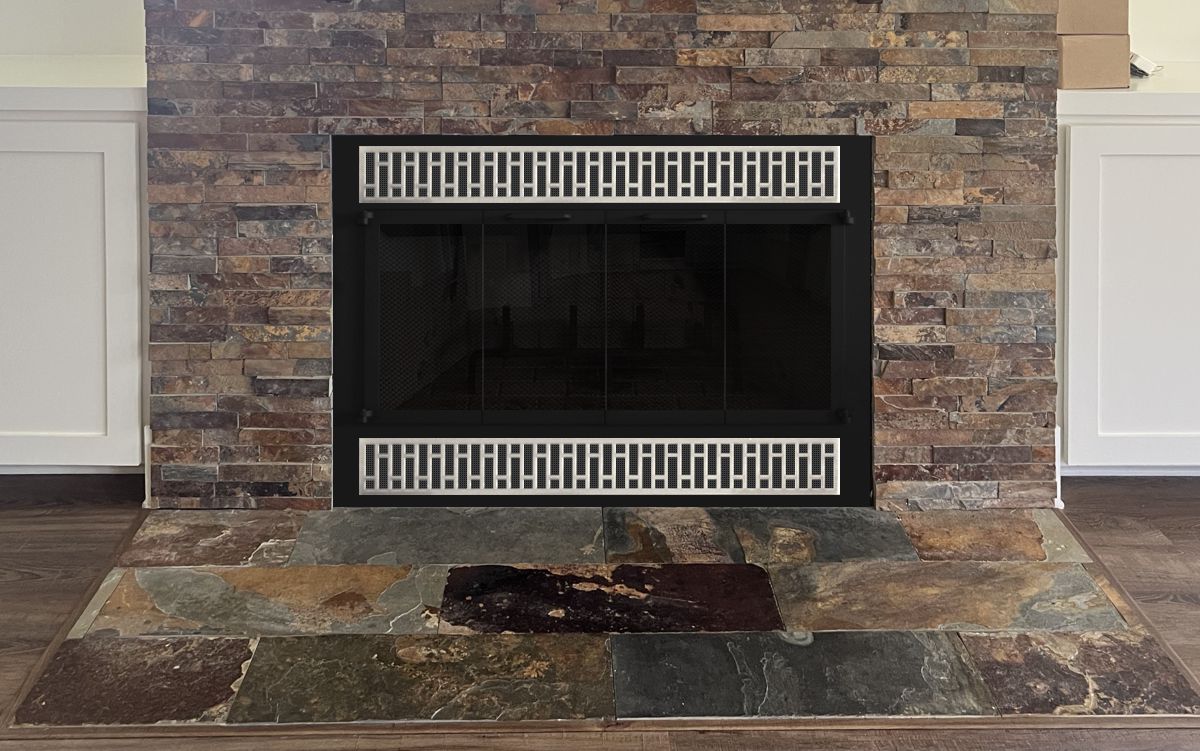

Option #5: PW Renewal Magnetic Attached Steel Bifold Fireplace Door in Matte Black with Nickel Plated Contemporary Louvers and Gray Glass.

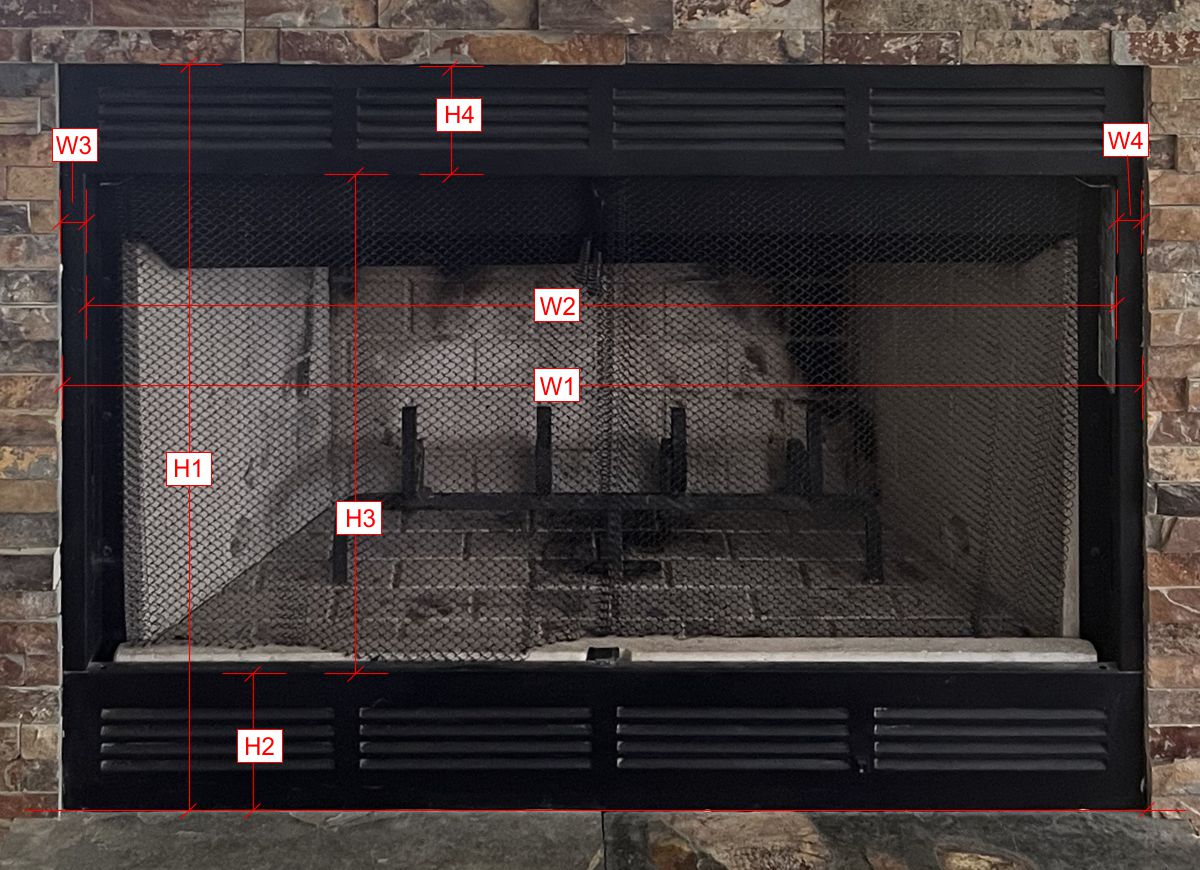

Measuring Instructions:

Make sure you find the smallest width and height since the stones will be slightly irregular. I will have the overall size of the frame made 1/8” smaller than that on the top and each side.

Width Measurements: W2+W3+W4 should equal W1

W1: Smallest width between the stones
W2: Width of black metal opening
W3: Width of black metal on left
W4: Width of black metal on right

Height Measurements: H2+H3+H4 should equal H1

H1: Smallest height from the hearth to the top stones
H2: Height of bottom vent section
H3: Height of black metal opening
H4: Height of top vent section

Measure

Measuring Diagram

Other Pictures

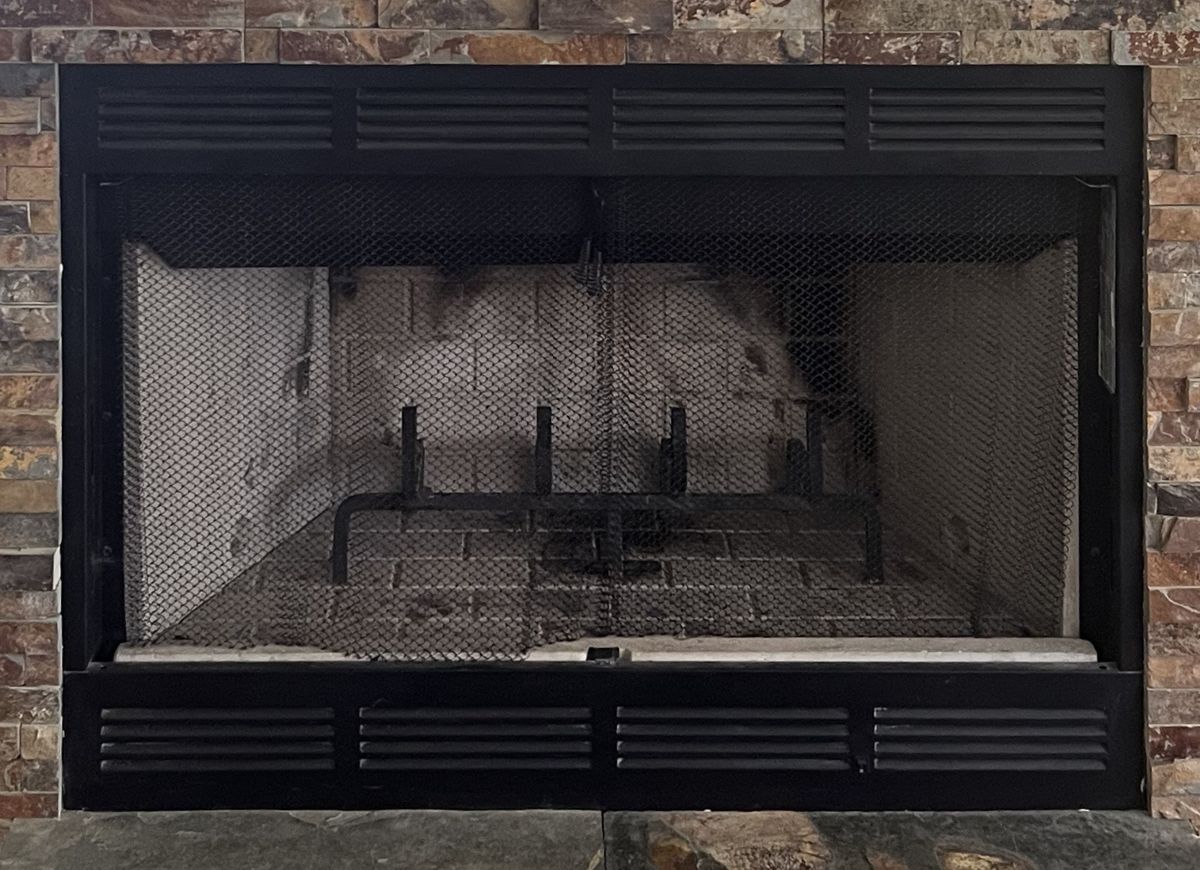

Fig #1 - Closeup

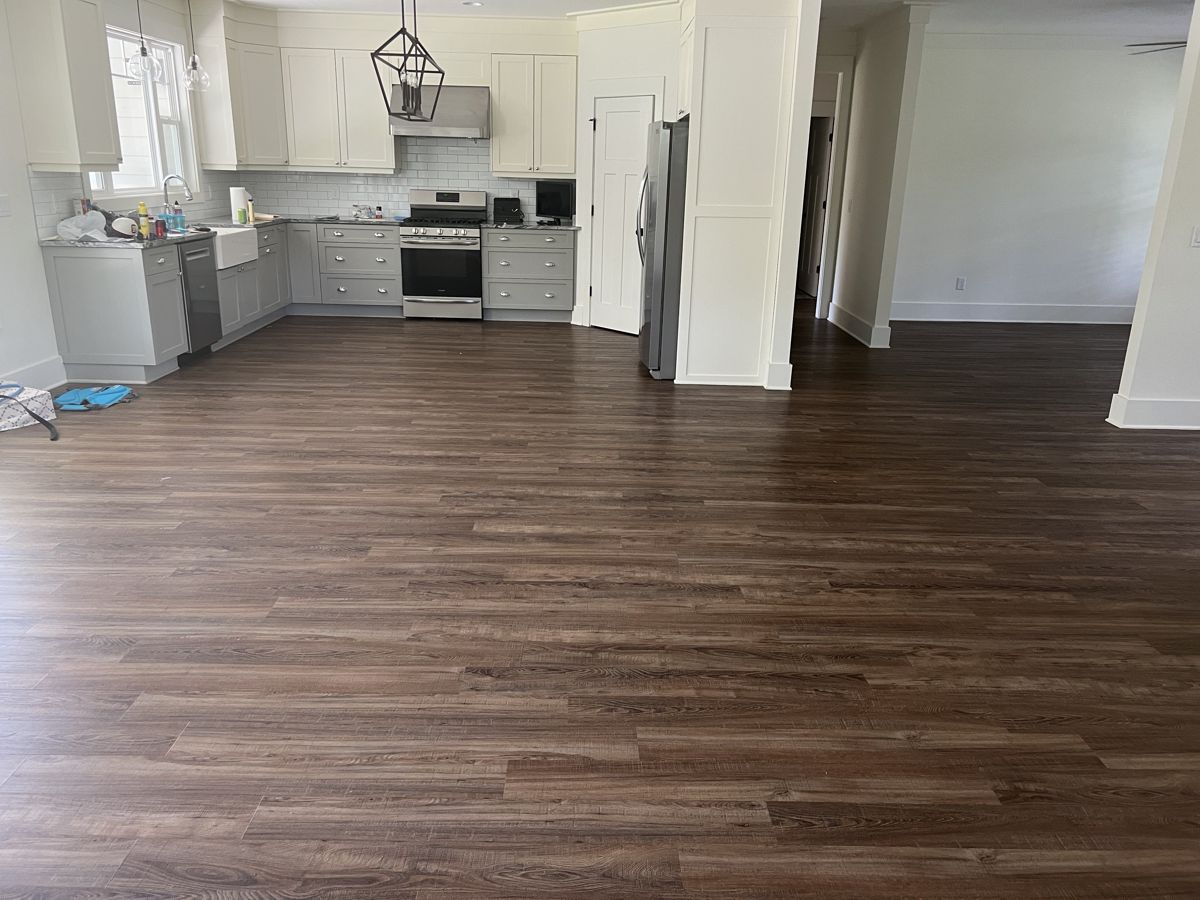

Fig #2 - Room Setting

Fig #3 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains
