Curtain Screens for Large Fireplace In The Wall - Project #11686

Customer Comments: Thanks Terry – enjoyed talking to you over the phone. Attached are pictures per the instructions you emailed. The fireplace is 54 inches wide and 33 inches high. Please provide pricing with the top bar being polished brass, brushed brass, and plain black. Thanks.

Our Comments: Here are mockups of the 3 finishes you have requested. We have included the option of a bottom bar as well as a frame screen. Having a frame at the bottom will help prevent logs from rolling out of the fireplace, which can be a real concern for fireplaces raised up in the wall. Fireplaces this size require an I-Beam track and roller system (see details below).

Fireplace Opening: 54" W x 33" H

Before

Before:

Sliding Mesh Curtains

Single Panel Screen

Option #1A: Stone Manufacturing C92 Bar and Mesh in Flat Black.

Single Panel Screen

Option #1B: Stone Manufacturing C92 Bar and Mesh with Matching F92 Bottom Bar in Flat Black. Shown with WI-AN17 Wrought Iron Asiana Andirons.

Single Panel Screen

Option #2A: Stone Manufacturing C92 Bar and Mesh in Satin Brass.

Single Panel Screen

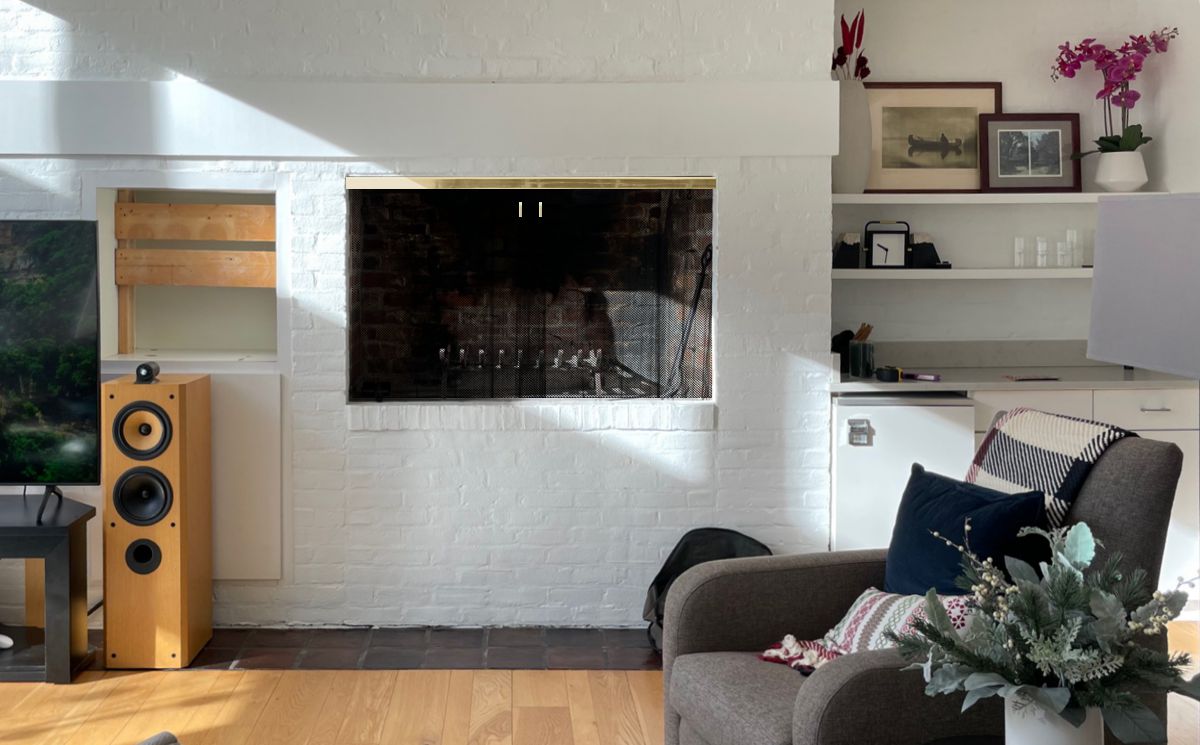

Option #3A: Stone Manufacturing C92 Bar and Mesh in Polished Brass.

Single Panel Screen

Option #3B: Stone Manufacturing C92 Bar and Mesh with Matching F92 Bottom Bar in Polished Brass. Shown with AR-AN6 Bullet Andirons and MT-7 Touche Fireplace Tools.

Single Panel Screen

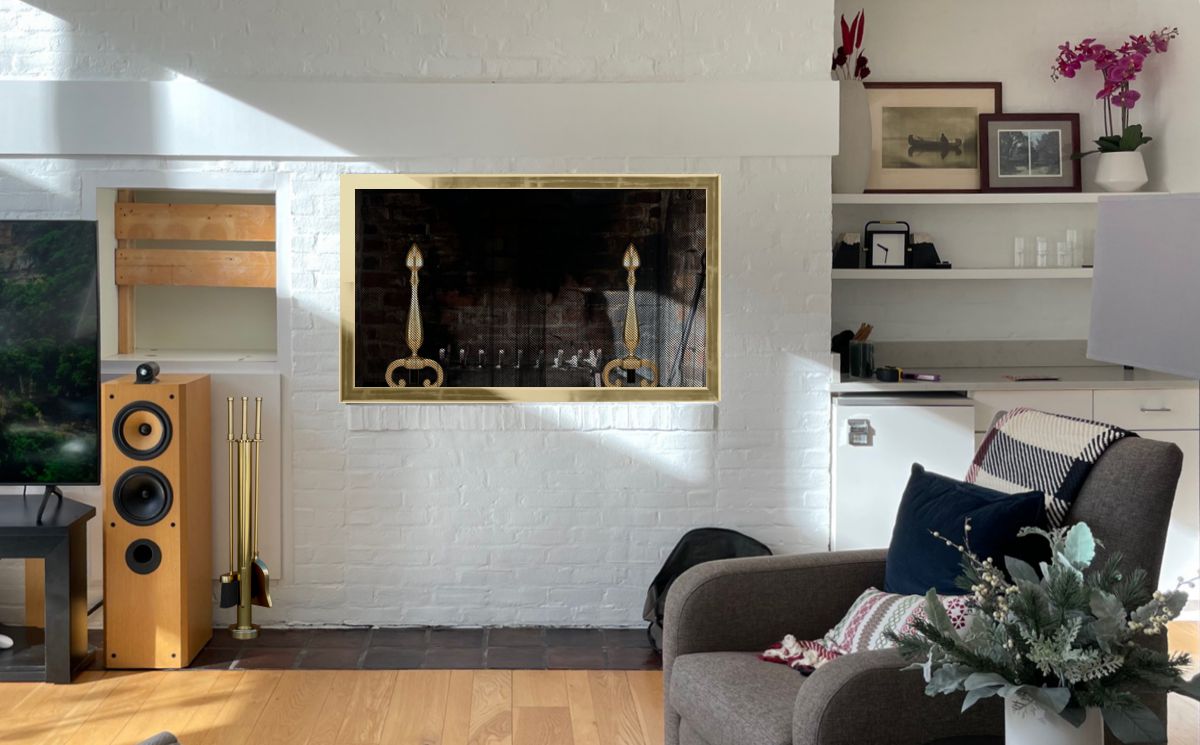

Option #3C: Stone Manufacturing CFR85 4-Sided Frame Screen in Polished Brass. Shown with AR-AN6 Bullet Andirons and MT-7 Touche Fireplace Tools.

I-Beam with Rollers

Single Panel Screen

I-Beam with Rollers. This mechanism is used for fireplaces over 48" wide. The track system will not sag due to the weight of the mesh, like a typical steel curtain rod.

Other Pictures

Fig #1 - Closeup

Fig #2 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
