Glass Screens and Doors for Wide Linear Gas Fireplace - Project #11663

Customer Comments: The width is 78" and height is 24". I would want a glass piece around 15" or 18".

Our Comments: We do not recommend adding a single piece of glass that large inside this type of fireplace. It will be too close to the fire and will most likely shatter from the heat. For applications like this, we recommend attached glass doors or a special angle frame with posts that holds a sheet of tempered glass about 4" away from the fireplace. Here are some examples.

Fireplace Opening: 78" W x 24" H

Before

Before:

Affordable Aluminum Doors

Aluminum is an excellent material for fireplace doors because it does not rust and can handle high temperatures when treated with powder coated finishes. It is also the most affordable.

Stiletto

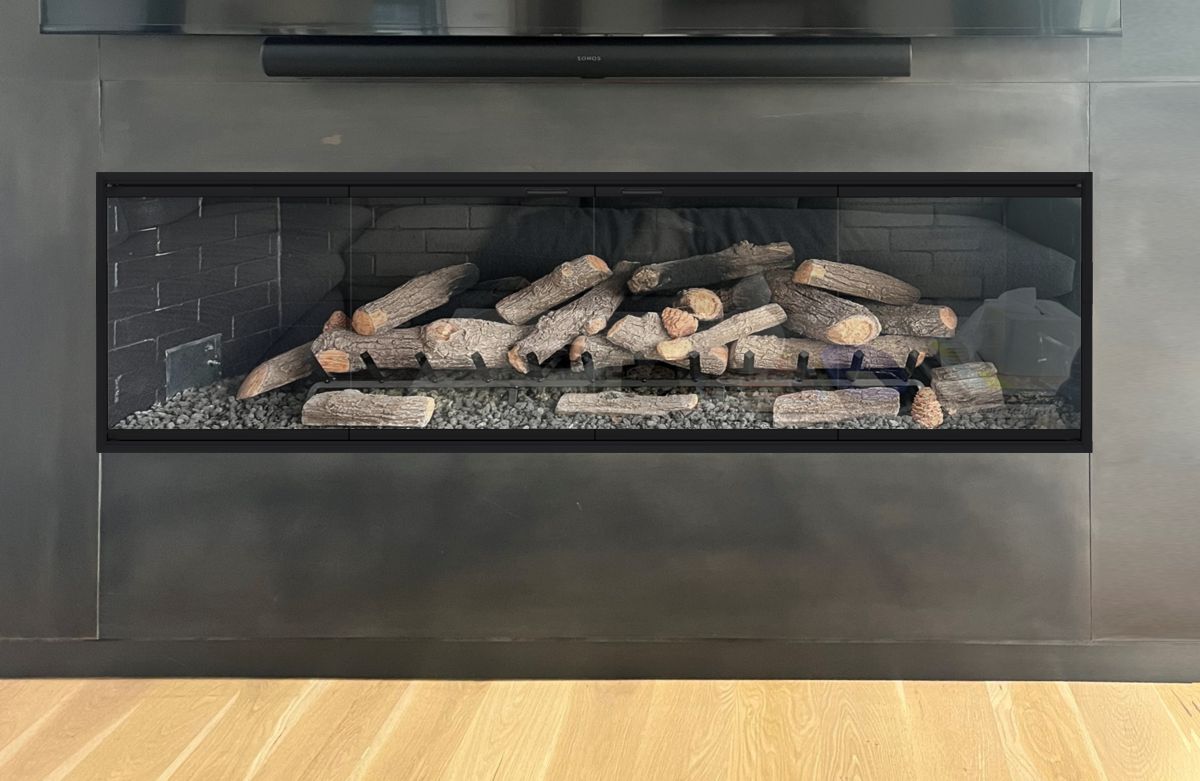

Option #1: Design Specialties Stiletto Cutback Bifold Fireplace Glass Door in Rustic Black.

Brookfield

Option #2: Design Specialties Brookfield Fireplace Glass Door in Rustic Black with Clear Glass and Gate Mesh Backup Doors.

Legend

Option #3: Design Specialties Legend Fireplace Glass Door in Rustic Black with Clear Glass and Gate Mesh Backup Doors.

Flat Steel

Option #4: Hearth Creations Flat Steel Door with 1 1/2" Frame in Antique Black with Clear Glass and Gate Mesh Backup Doors.

Sliding Door

Option #5: Stone Manufacturing EDGE-2 Inside Fit Sliding Glass Door with Black Angle Iron Frame on Edge and Satin Nickel Channels. This door has 2 fixed panes of glass on the right and left sides and 2 sliding panes in the center.

Floating Glass

Option #6: Stone Manufacturing Angle Frame with Floating Glass. This is a unique way of adding a single piece of glass that is far enough away from the fire to be safe. The 6 posts are attached to the angle frame and hold the glass about 4" away from the opening allowing it to remain stationary in front of the fireplace far enough away to help reduce the risk of the glass shattering.

Floating Glass

Example of Stone Manufacturing Floating Glass Screen.

Other Pictures

Fig #1 - Closeup

Fig #2 - Room Setting

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Ceramic

Tempered Clear

Tempered Gray

Tempered Bronze

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel
