Screen and Door Options for Odd Shaped Fireplace with Step - Project #10382

Customer Comments: I believe I need a custom screen made for my fireplace. Attached is a picture of my fireplace. The main opening is 46 inches. The bench is 14 inches making the entire opening 60. There are protruding bricks on each side so the width cannot go over 50 inches unless it doesn’t touch sides (sits back). The height of the opening is 34 inches. I prefer a clean modern look. A silver or black finish is my preference. I will be burning wood so I need sparks to be controlled.

Our Comments: We can make a fireplace door or bar and mesh for your fireplace. If we do a door, you can overlap the bricks, but you would need to chisel the protruding bricks and then repaint them. We can make the door fit inside, but measuring will be critical and we will leave a 1/4" to 1/2" gap around the frame that will need to be filled with mortar. We have created examples of each case. The fireplace door on the right can be a fixed piece of glass or an operable door.

Fireplace Opening: 60" W x 34" H

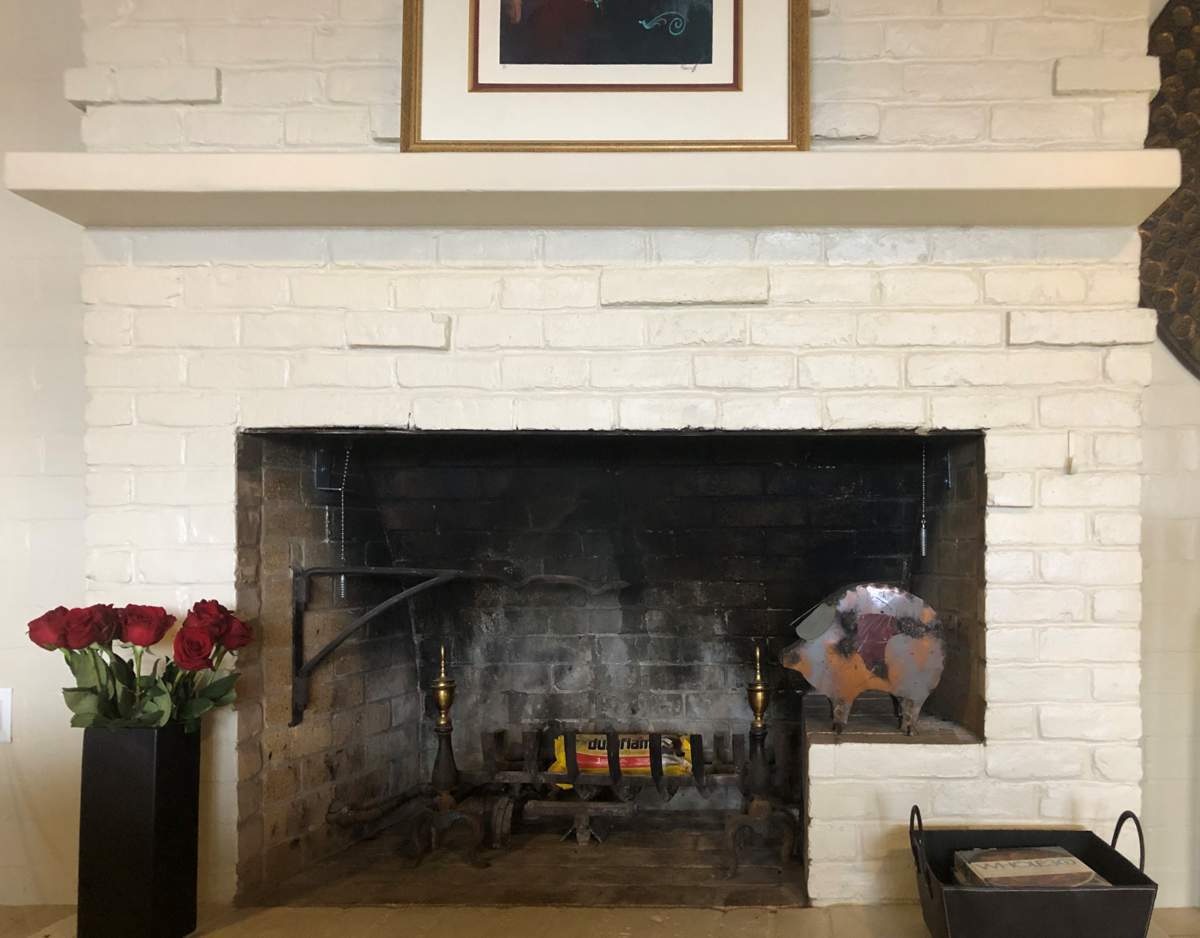

Before

Before:

Legend 1

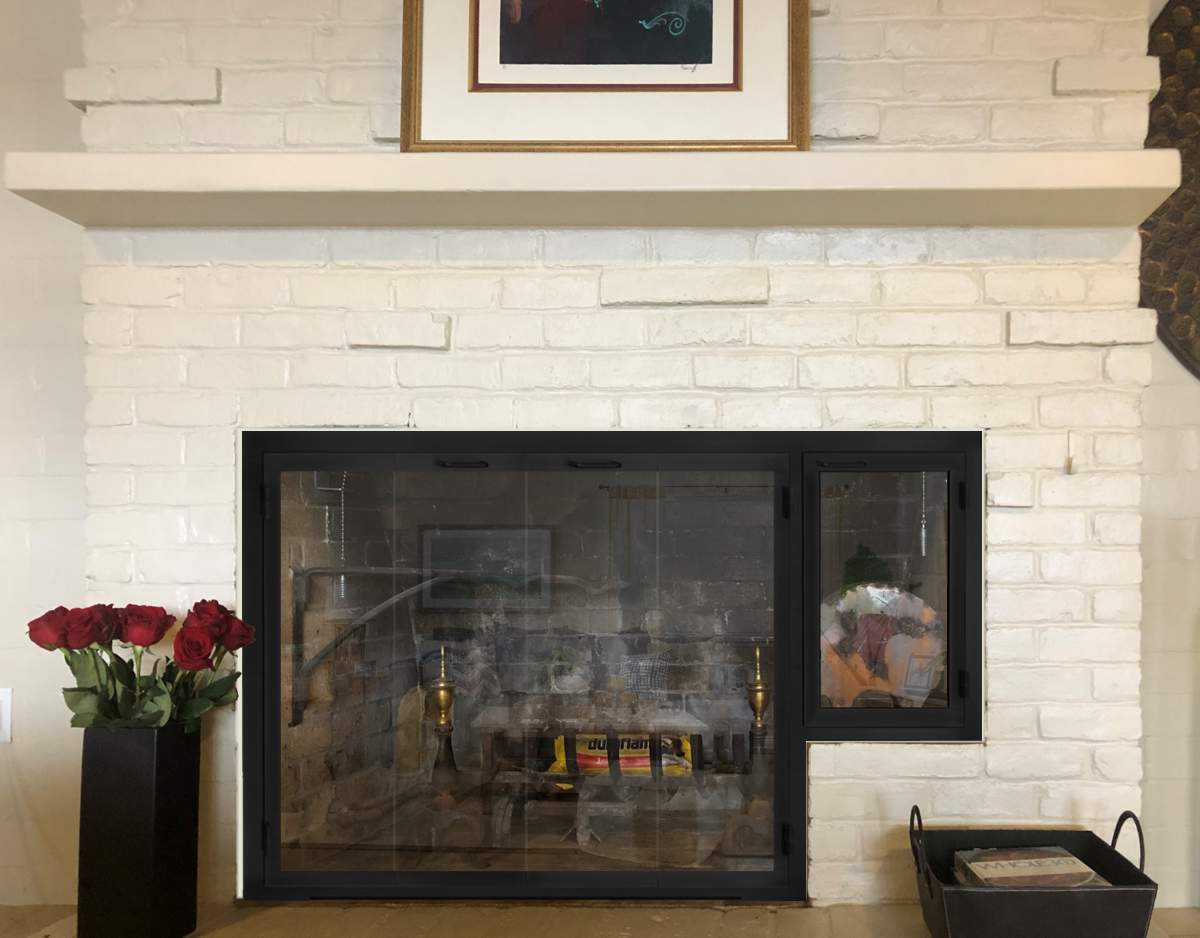

Option #1: Legend Custom Fireplace Glass Doors Shown In Rustic Black. Shown as an inside fit with operable side door.

Legend 2

Option #2: Legend Custom Fireplace Glass Doors Shown In Rustic Black. Shown as an overlap fit with operable side door.

Legend 3

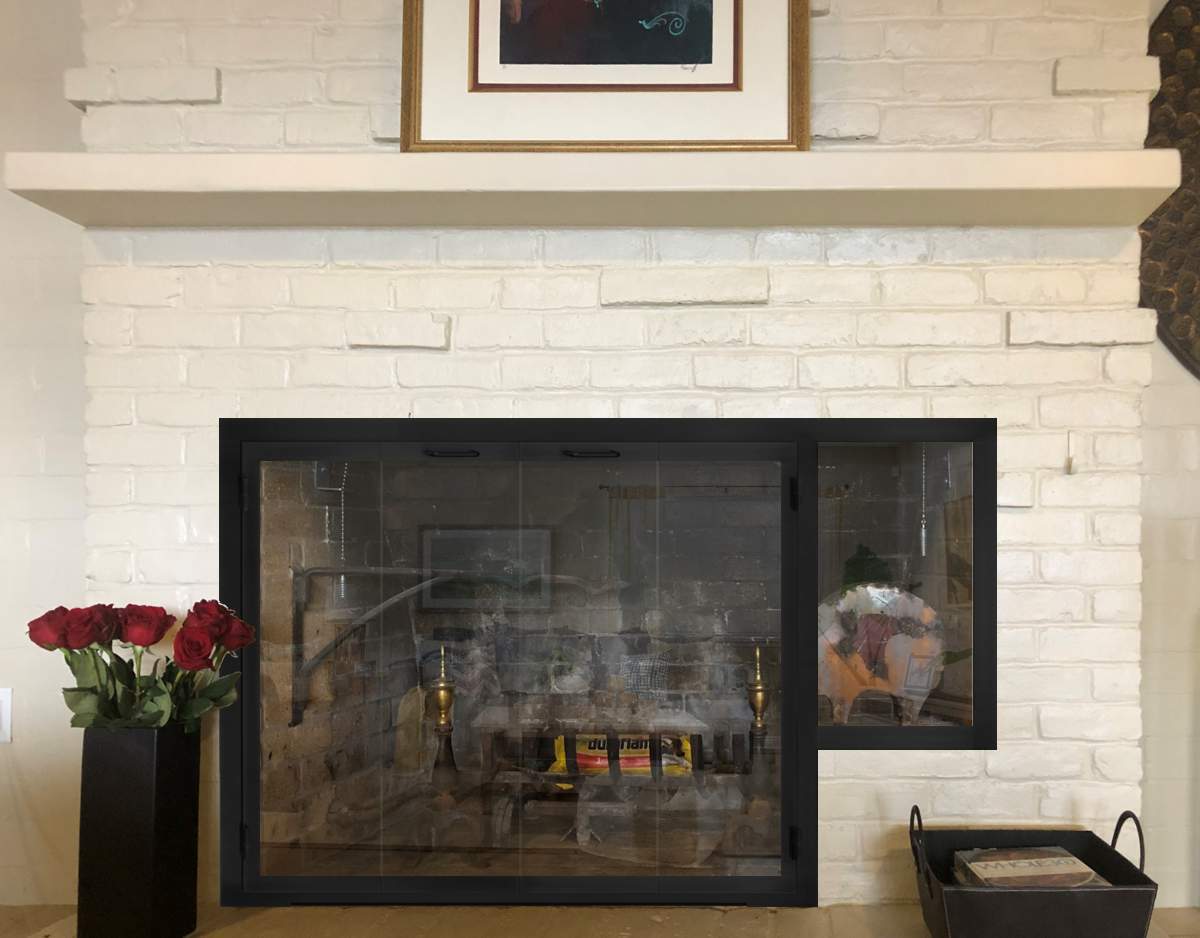

Option #3: Legend Custom Fireplace Glass Doors Shown In Rustic Black. Shown as an overlap fit with fixed glass on side.

Bar & Mesh

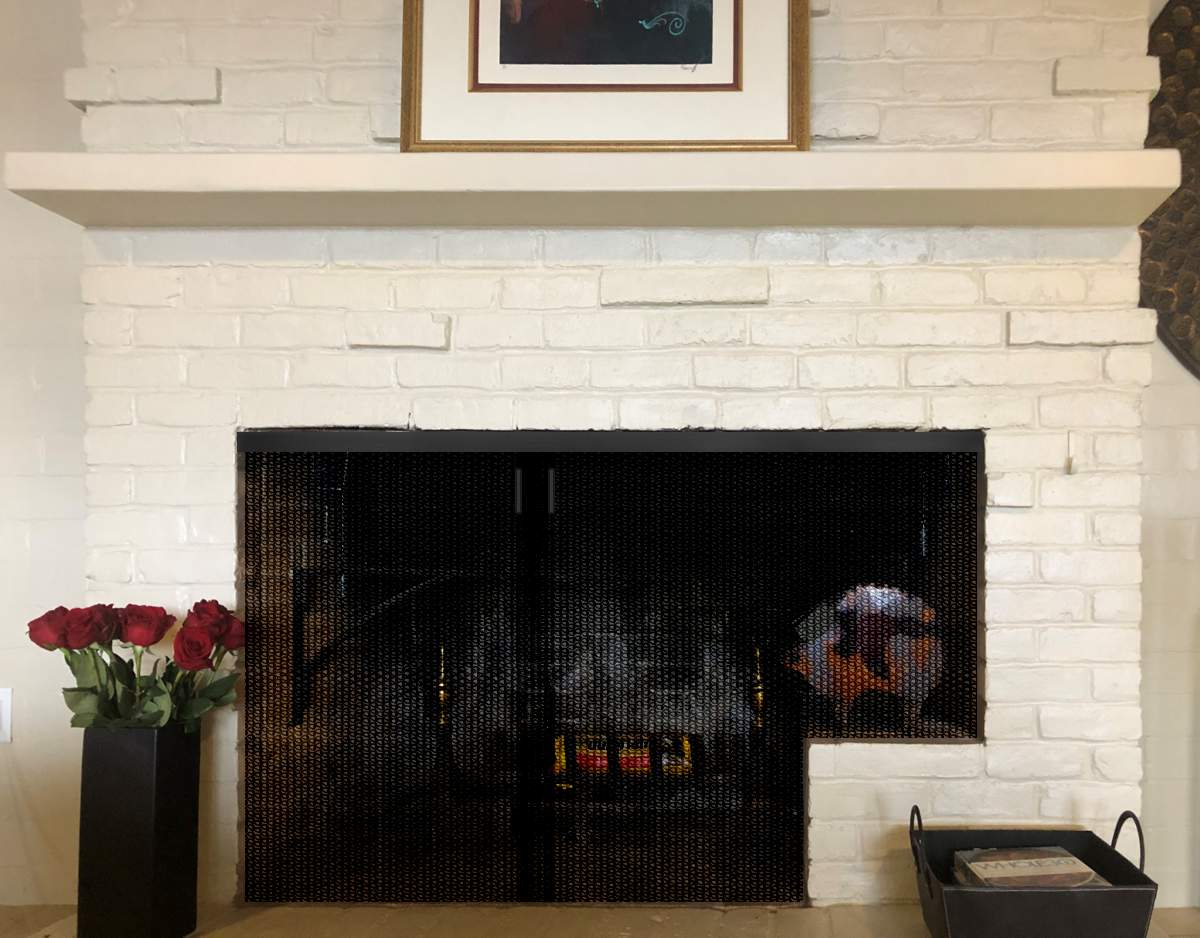

Option #4: Bar and Mesh in Matte Black. Cut to fit side shelf

Glass Door Mesh Options

If you are planning on burning anything in your fireplace, you need to have mesh behind the glass so you can burn a fire with the doors open. You can chooe between gate mesh backup doors and sliding mesh curtains. Functionally, gate mesh performs the best as the wire has smaller holes that sparks cannot get through. Aesthetically, mesh curtains may be preferred because they do not have a vertical center frame that obstructs the view of the fire. When you are not using the fire or you want a complete unobstructed view, they do not stick out like gate mesh doors when they are opened.

We are showing these options on a flat steel bifold door with a satin brass overlay and gray glass.

No Mesh

Gate Mesh Backup Doors

Mesh Curtains

Glass Options

Tempered vs Ceramic Glass: Tempered glass can handle sustained temperatures up to about 450F without breaking from heat and should be at least 8" from the flames. Ceramic glass can handle sustained temperatures up to about 1450F and be in direct contact with the flames. If you wish to burn fires with the doors closed, I highly recommend upgrading to ceramic glass. Ceramic glass is $800-$2000 more than tempered glass depending on the manufacturer.

Not all doors are available with all of these glass options.

Tempered Black (Opague)

Tempered 1/2" Bevel

Tempered 1" Bevel

Scale & Finish Disclaimer

The mockups are not necessarily to scale and are meant to help you choose the style of your screen or door. The appearance of finishes represented may vary between digital monitors and screens. I do my best to recommend finishes that I believe will blend with your decor and flatter your fireplace. You can view finish options below:

Finish Options by Brand

Hearth Creations Finishes
Design Specialties Finishes
Hand Crafted Wrought Iron Finishes
PW Finishes
Stone Manufacturings Trims & Finishes

Samples for some finishes are available upon request. Request Finish Samples Here!
